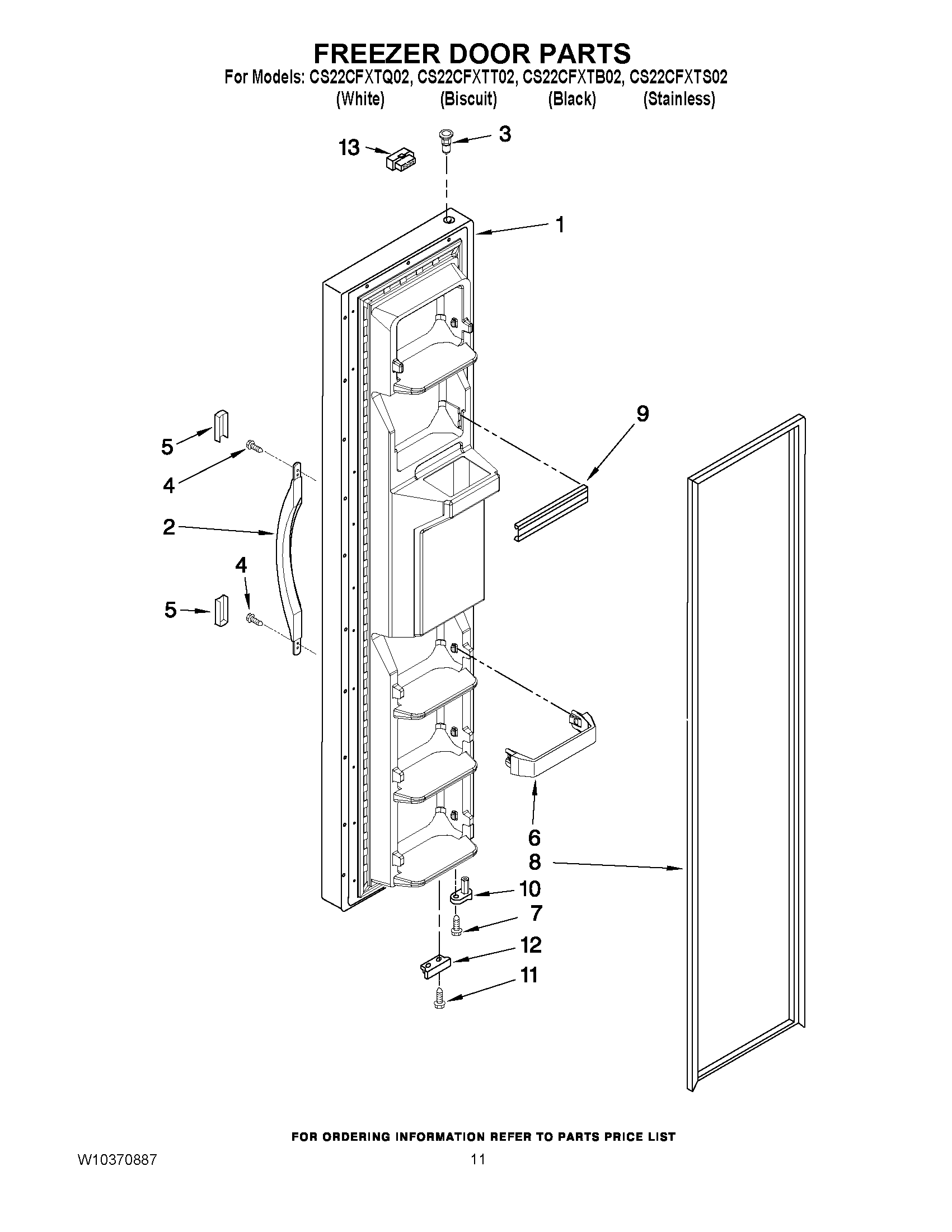

CS22CFXTB02 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless)
2	HANDLE (BLACK)
2	HANDLE (WHITE)
2	HANDLE (BISCUIT)
3	WP2182181 Whirlpool Refrigerator Thimble
4	WP489491 Whirlpool Refrigerator Screw
5	Trim, Handle (White)
5	Trim, Handle (Biscuit)
5	WP2194272B Whirlpool Refrigerator Handle Endcap
6	WP2309717 Whirlpool Refrigerator Door Trim
7	WP3400012 Whirlpool Refrigerator Screw
8	2159080 Whirlpool Refrigerator Door Gasket
8	2159072 Whirlpool Refrigerator FIP Gasket
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP2182179 Whirlpool Cam Closer
11	WP489483 Whirlpool Screw
12	W10185566 Whirlpool Bracket
12	Bracket, Door Stop (Black)
13	WP2154473 Whirlpool Refrigerator Connector
