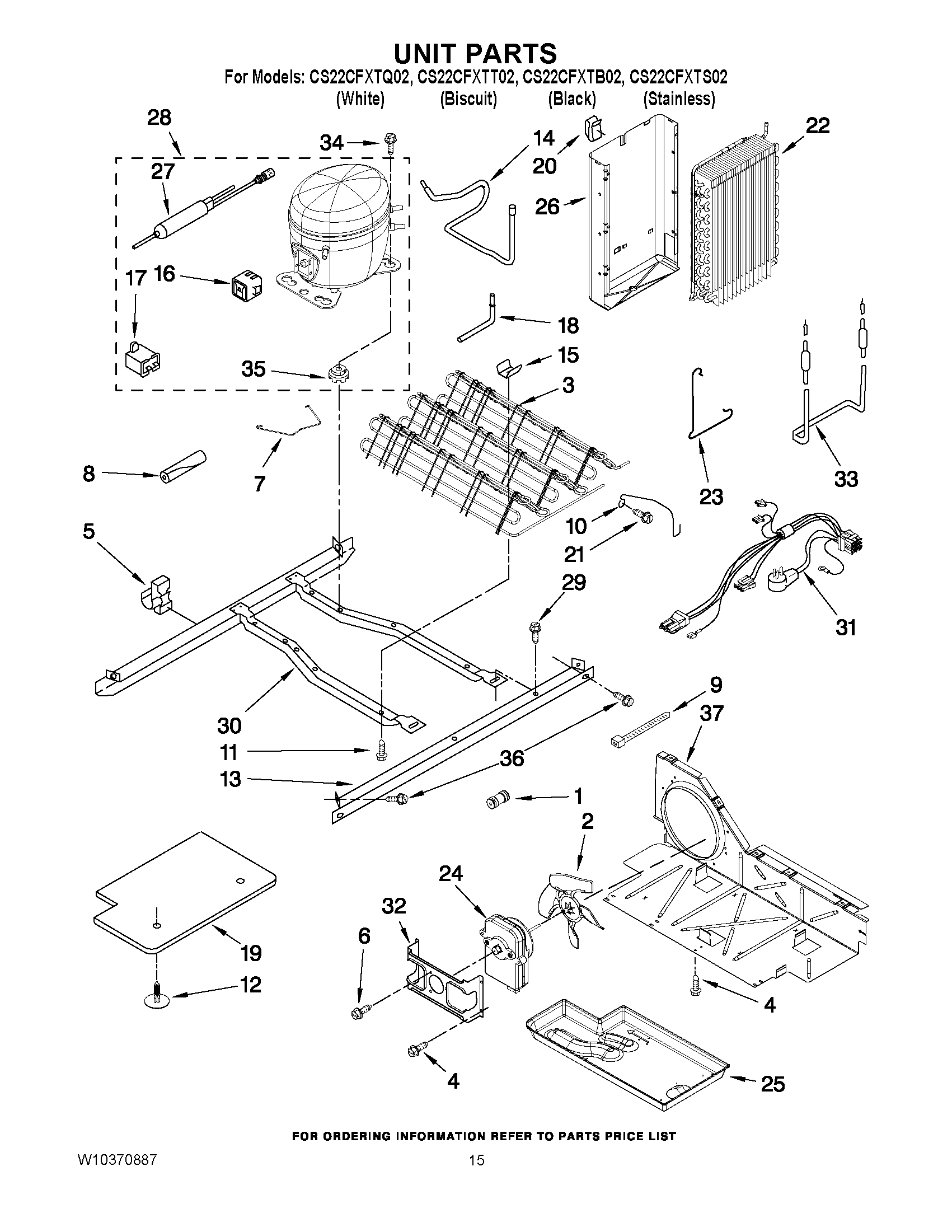

CS22CFXTB02 09 – UNIT PARTS

Products

Position	Product
NI	978026 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10334458 Whirlpool Refrigerator Connector
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	W11661170 Whirlpool Clip
8	SLEEVE
9	WPW10339879 Whirlpool Wire Tie
10	Guard, Fan
11	W11544659 Whirlpool Refrigerator Screw
12	489396 Whirlpool Refrigerator Clip
13	W10207512 Whirlpool Rail Unit
14	2220642 Whirlpool Refrigerator Tube
15	W10683556 Whirlpool Refrigerator Clip
16	START DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION)
16	WPW10240344 Whirlpool Refrigerator Start Device
17	WP65889-4 Whirlpool Refrigerator Capacitor
18	W10858105 Whirlpool Refrigerator Tube
19	W11115203 Whirlpool Control Panel
20	Clip, Heat Shield
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Clamp
24	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	WPW10194474 Whirlpool Refrigerator Shield
27	WPW10143759 Whirlpool Dryer Filter
28	W10355489 Whirlpool Refrigerator Compressor
29	WP489427 Whirlpool Refrigerator Screw
30	2304903 Whirlpool Refrigerator Frame
31	UNIT, HARNESS (INCLUDES POWER CORD)
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323197 Whirlpool Refrigerator Heater
34	SCREW
35	W11661108 Whirlpool Grommet
36	489340 Whirlpool Refrigerator Screw
37	BAFFLE, AIR
