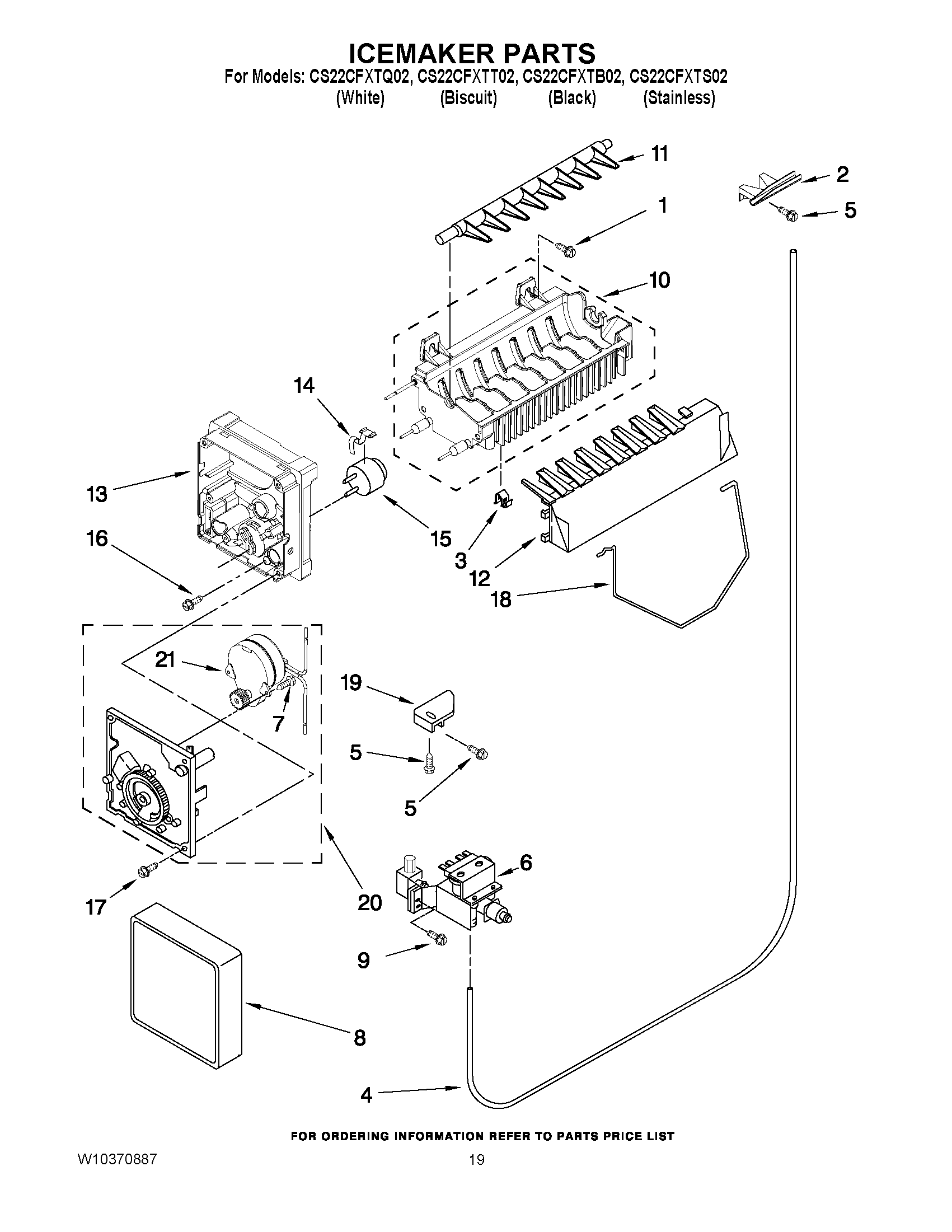

CS22CFXTB02 12 – ICEMAKER PARTS

Products

PositionProduct
1WP488163 Whirlpool Refrigerator Screw
2W11505385 Whirlpool Refrigerator Chute
3WP628379 Whirlpool Refrigerator Clip
4W10823511 Whirlpool Refrigerator Water Tube
5WP489478 Whirlpool Refrigerator Screw
6W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
7489136 Whirlpool Refrigerator Screw
8WPW10289690 Whirlpool Ice Maker Cover
9WPW10141625 Whirlpool Refrigerator Screw Assembly
10WPW10190929 Whirlpool Refrigerator Ice Maker Mold
11WP627843 Whirlpool Refrigerator Ejector Arm
12WPW10122563 Whirlpool Refrigerator Stripper Arm
13WP2195914 Whirlpool Refrigerator Ice Maker Housing
14WP2315522 Whirlpool Refrigerator Clip
15WP627985 Whirlpool Icemaker Cycling Thermostat
168533917 Whirlpool Refrigerator Screw
17WP681249 Whirlpool Screw Assembly
18W11342242 Whirlpool Refrigerator Ice Level Arm
19W11500948 Whirlpool Refrigerator Bracket
208201515 Whirlpool Refrigerator Motor and Gear Module Kit
21CABINET (NOT A SERVICEABLE PART)
100WPW10190965 Whirlpool Refrigerator Ice Maker Assembly
