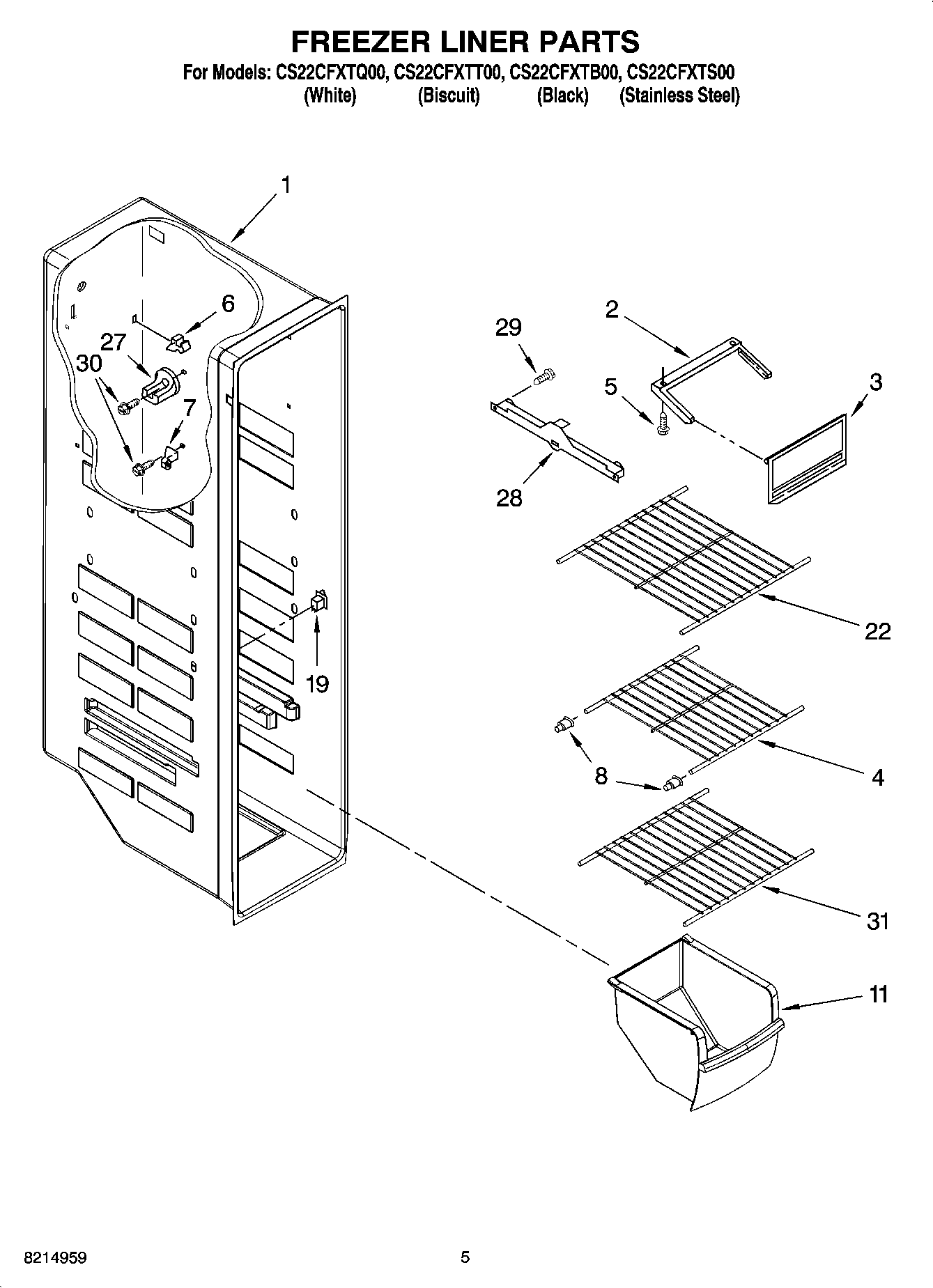

CS22CFXTQ00 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	Slide, Ice Door
3	2171712 Whirlpool Refrigerator Ice Door
4	WPW10318953 Whirlpool Wire Shelf
5	WP489478 Whirlpool Refrigerator Screw
6	2215823 Whirlpool Refrigerator Clip
8	2163762 Whirlpool Refrigerator Cup Assembly
11	WP2309758 Whirlpool Refrigerator Freezer Bin
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
22	WPW10318952 Whirlpool Wire Shelf
27	4388405 Whirlpool Refrigerator Shelf Stud
28	W10845585 Whirlpool Refrigerator Track
28	W10845583 Whirlpool Refrigerator Track
29	718257 Whirlpool Dishwasher Screw
30	W10142289 Whirlpool Air Conditioner Screw
31	WPW10318951 Whirlpool Refrigerator Wire Shelf
