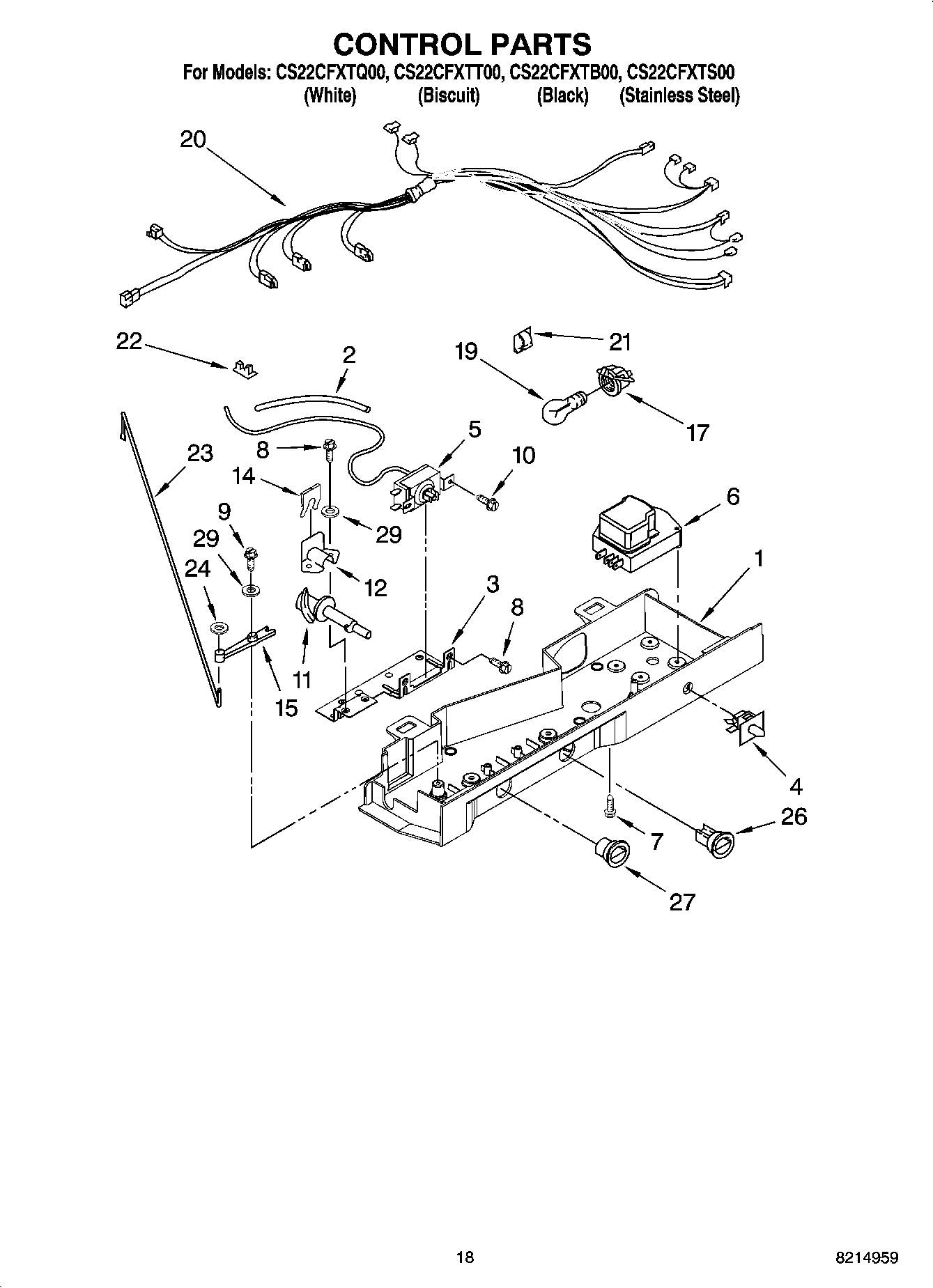

CS22CFXTQ00 11 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2311611 Whirlpool Refrigerator Bracket
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2198202 Whirlpool Refrigerator Temperature Thermostat
6	W10822278 Whirlpool Defrost Timer
7	489392 Whirlpool Refrigerator Screw
8	WP3196557 Whirlpool Screw
9	627068 Whirlpool Refrigerator Screw
10	WP965173 Whirlpool Dishwasher Screw
11	WP2182195 Whirlpool Refrigerator Cam
12	1110560 Whirlpool Refrigerator Bearing
14	WP2196062 Whirlpool Refrigerator Clip
15	Pivot Arm
17	4387478 Whirlpool Refrigerator Light Socket
19	RANGE ONLY 40W 120V APPL BULB
20	2311636 Whirlpool Refrigerator Wire Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	2311631 Whirlpool Refrigerator Rod
24	Fastener, Push-On
26	W10723843 Whirlpool Refrigerator Thermostat Knob
27	2311615 Whirlpool Refrigerator Knob
29	489203 Whirlpool Refrigerator Washer
