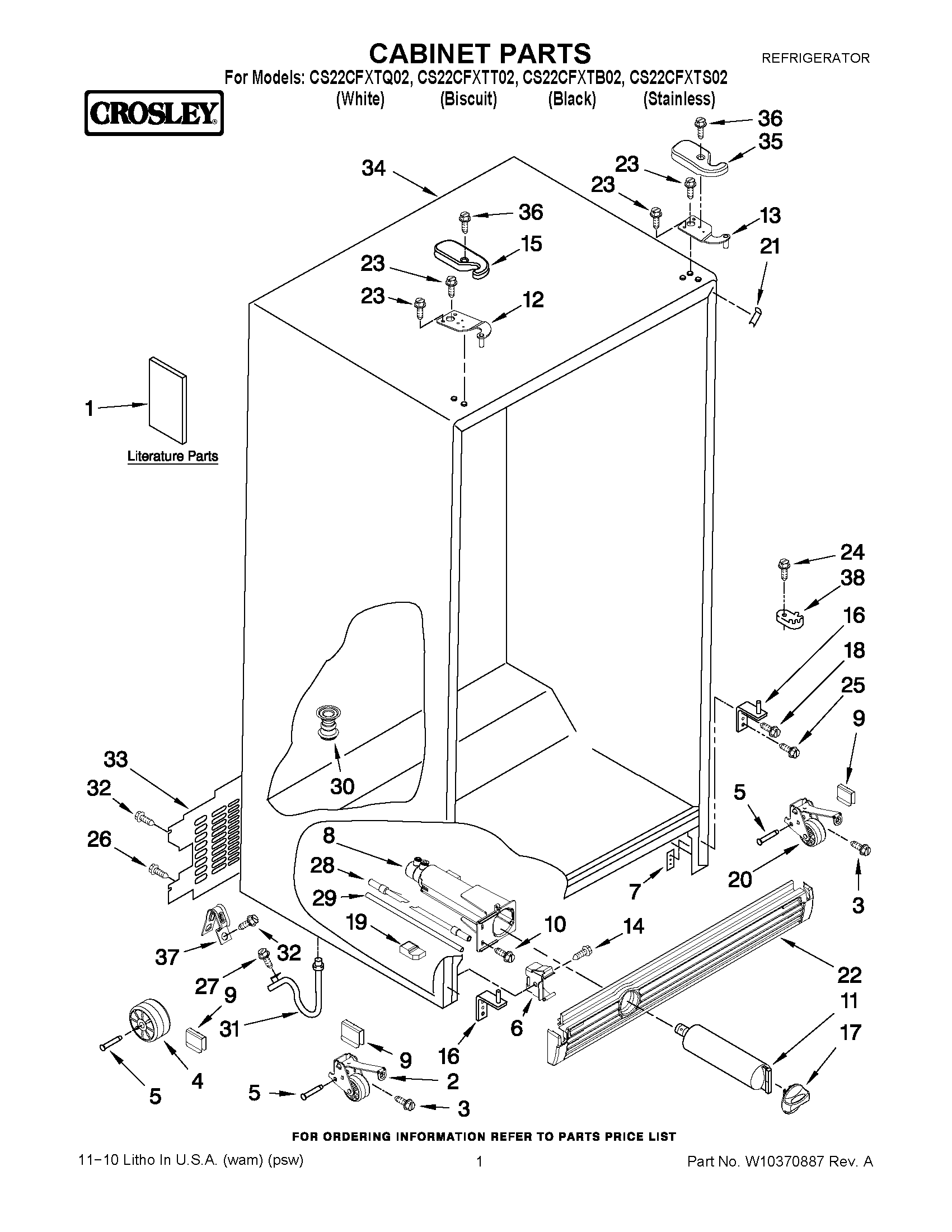

CS22CFXTQ02 01 – CABINET PARTS

CS22CFXTQ02 01 – CABINET PARTS

Written by

in

CS22CFXTQ02 01 – CABINET PARTS

Products

Position	Product
1	USE & CARE GUIDE
1	Modular Icemaker Service Sheet
1	SERVICE & WIRING SHEET
1	Energy Label
2	WPW10304660 Whirlpool Wheel Assembly
3	WP489427 Whirlpool Refrigerator Screw
4	WPW10475495 Whirlpool Roller Assembly
5	W11594405 Whirlpool Axle
6	WP2155013 Whirlpool Refrigerator Clip
7	WP2304249 Whirlpool Refrigerator Plate
8	WP2186443 Whirlpool Water Filter Housing
9	WP2174706 Whirlpool Refrigerator Pin Hitch
10	WP489500 Whirlpool Refrigerator Screw
11	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
12	HINGE TOP (FC)
13	HINGE TOP (RC)
14	WP489128 Whirlpool Refrigerator Screw
15	2203407T Whirlpool Refrigerator Cover
15	WP2203407B Whirlpool Refrigerator Cover
15	WP2203407W Whirlpool Refrigerator Cover
16	HINGE BOTTOM
17	WP2186494B Whirlpool Refrigerator Filter Cap
17	WP2186494W Whirlpool Water Filter Cap
17	WP2186494T Whirlpool Water Filter Cap
18	WP489497 Whirlpool Screw
19	Block, Housing Support
20	WPW10304659 Whirlpool Wheel Assembly
21	WPW10283959 Whirlpool Refrigerator Filler
21	W11252732 Whirlpool Refrigerator Filler
21	W10283958 Whirlpool Refrigerator Filler
22	W10802713 Whirlpool Refrigerator Grille
24	WP489483 Whirlpool Screw
25	W10856122 Whirlpool Refrigerator Screw
26	WP488488 Whirlpool Refrigerator Screw
27	WP489464 Whirlpool Refrigerator Screw
28	TUBE, FILTER INLET
29	WPW10350006 Whirlpool Refrigerator Water Tube
30	W11566763 Whirlpool Fitting
31	W11512417 Whirlpool Drain Connector
33	WP2188756 Whirlpool Refrigerator Unit Cover
34	CABINET (NOT A SERVICEABLE PART)
35	Hinge Cover (Biscuit)
35	WP2203408B Whirlpool Refrigerator Cover
35	WP2203408W Whirlpool Refrigerator Cover
36	WP8281227 Whirlpool Screw
37	549193 Whirlpool Refrigerator Power Clamp
38	WPW10329686 Whirlpool Door Cam Black
