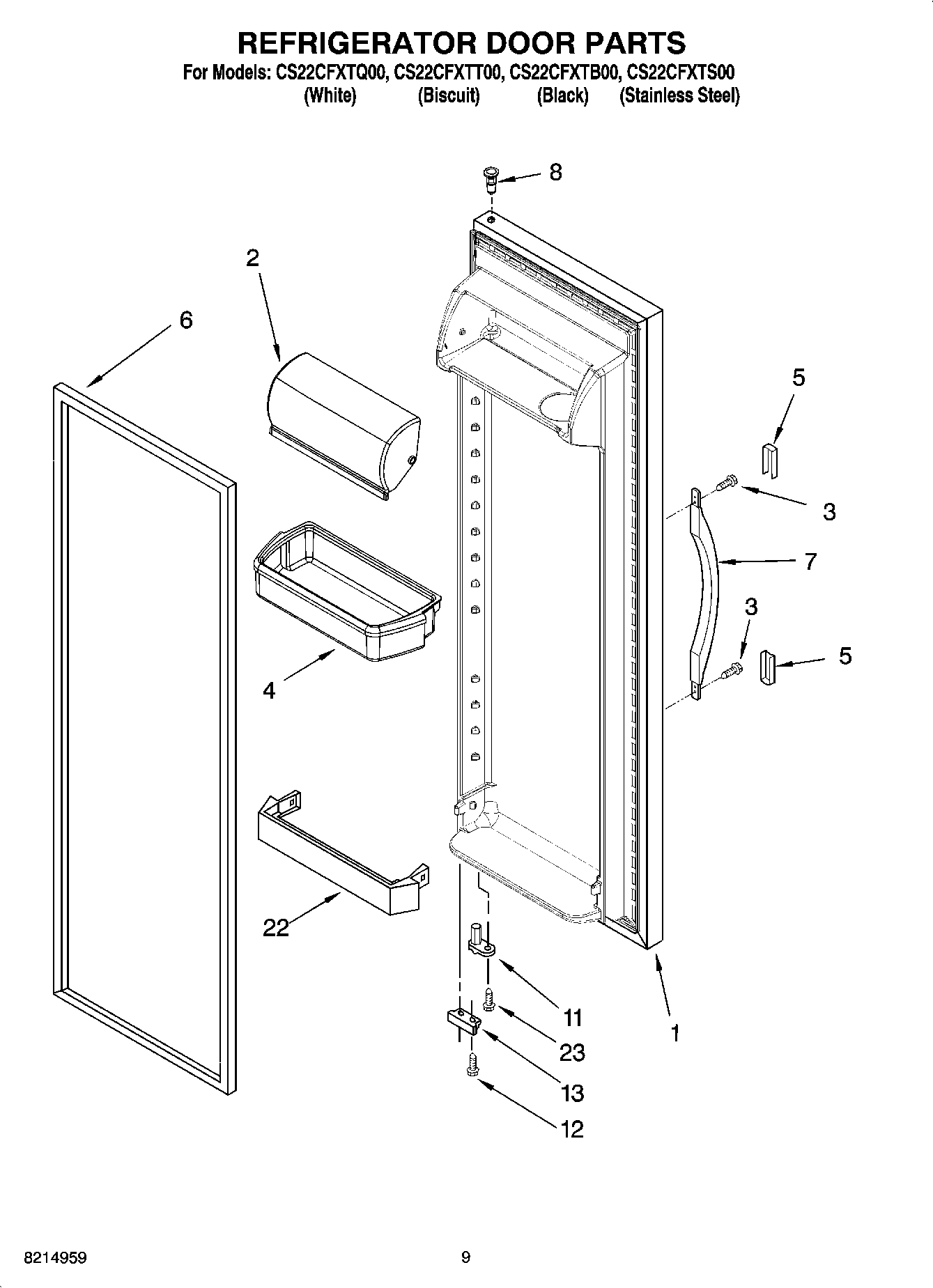

CS22CFXTS00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Stainless-VCM)
1	Refrigerator Door (Includes Item 6) (Black)
1	L2206826T Whirlpool Refrigerator Dorr FIP BT
2	WP2256101 Whirlpool Dairy Door
3	WP489491 Whirlpool Refrigerator Screw
4	WP2187172 Whirlpool Refrigerator Door Shelf Bin
5	WP2193353W Whirlpool Refrigerator Trim Handle
5	Cover, Trim (Black)
5	Cover, Trim (Biscuit)
6	2159073 Whirlpool Refrigerator Door Gasket
6	2159081 Whirlpool Refrigerator Door Gasket
7	Handle, Center (White)
7	Handle, Center (Biscuit)
7	WP2186649B Whirlpool Refrigerator Handle
8	WP2182181 Whirlpool Refrigerator Thimble
8	Thimble, Top (For Stainless Steel Models)
11	WP2182179 Whirlpool Cam Closer
12	WP489483 Whirlpool Screw
13	WP2206629B Whirlpool Refrigerator Bracket
22	WP2177962K Whirlpool Refrigerator Door Trim
23	WP3400012 Whirlpool Refrigerator Screw
