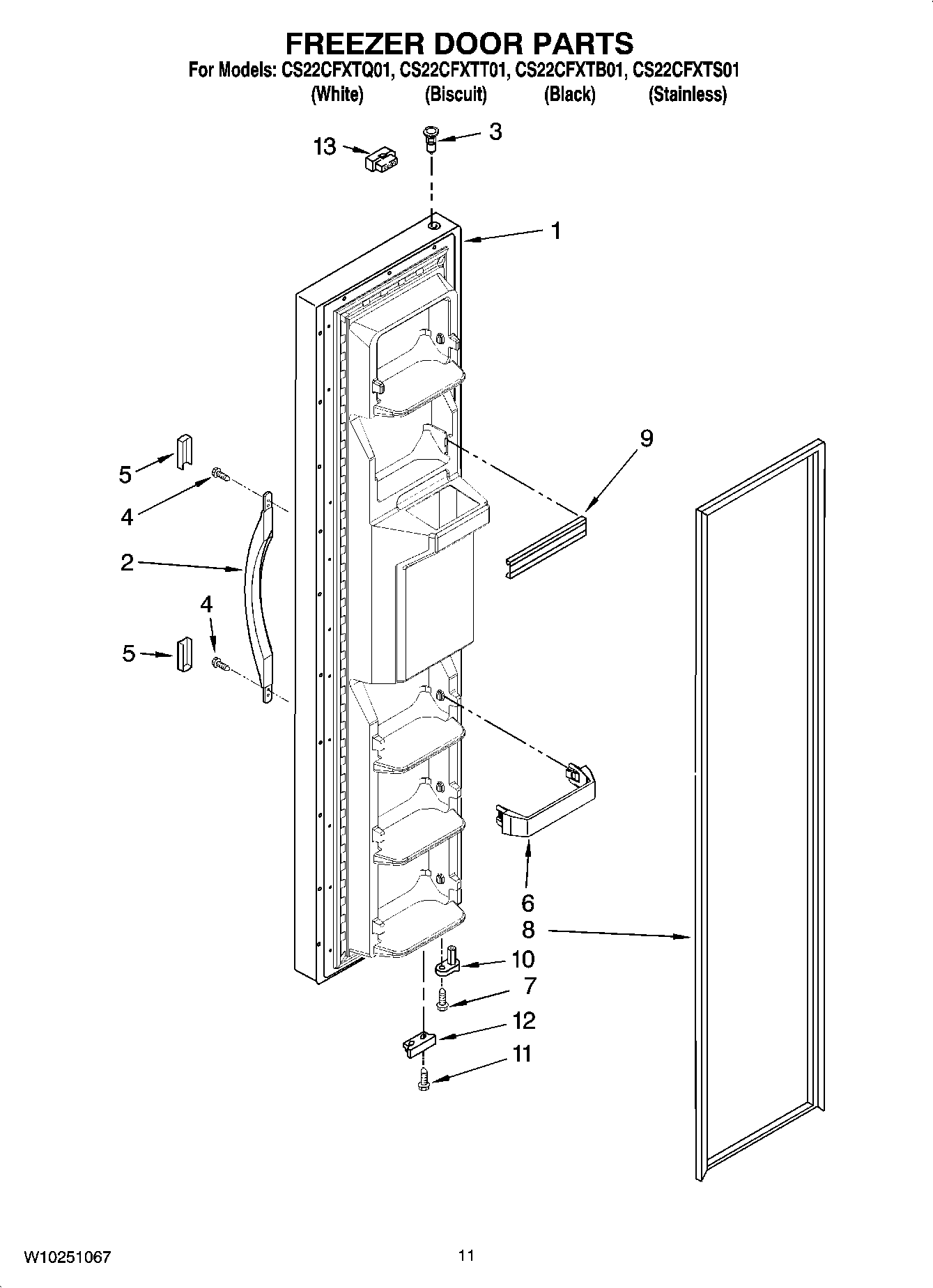

CS22CFXTS01 07 – FREEZER DOOR PARTS

CS22CFXTS01 07 – FREEZER DOOR PARTS

Written by

in

CS22CFXTS01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Biscuit)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless)
2Handle (White)
2Handle (Black)
2WP2186649B Whirlpool Refrigerator Handle
2Handle (Biscuit)
3WP2182181 Whirlpool Refrigerator Thimble
4WP489491 Whirlpool Refrigerator Screw
5Trim, Handle (Biscuit)
5WP2194272B Whirlpool Refrigerator Handle Endcap
5Trim, Handle (White)
5Cover, Trim (Black)
6WP2309717 Whirlpool Refrigerator Door Trim
7WP3400012 Whirlpool Refrigerator Screw
82159072 Whirlpool Refrigerator FIP Gasket
82159080 Whirlpool Refrigerator Door Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP2182179 Whirlpool Cam Closer
11WP489483 Whirlpool Screw
12WP2206629B Whirlpool Refrigerator Bracket
13WP2154473 Whirlpool Refrigerator Connector
