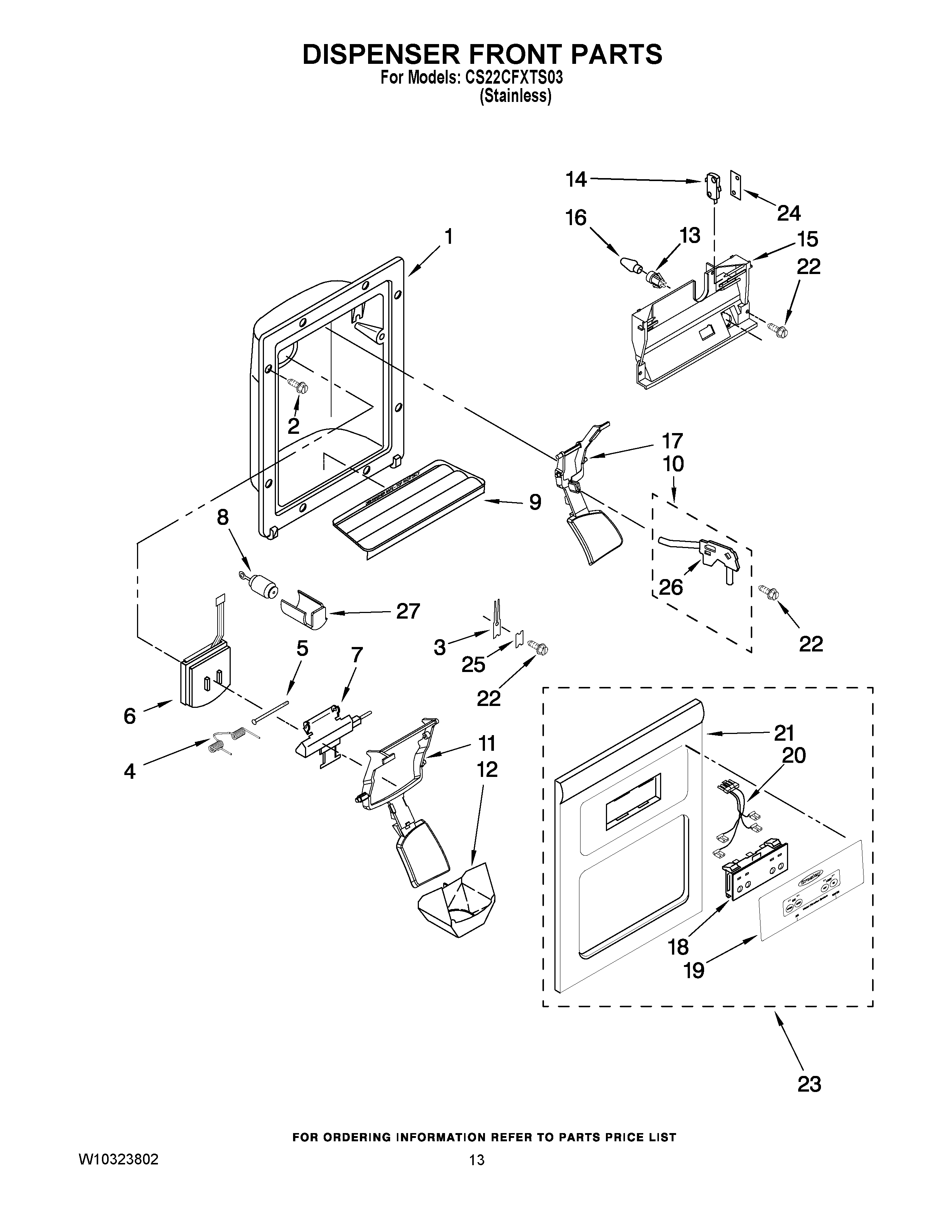

CS22CFXTS03 08 – DISPENSER FRONT PARTS

CS22CFXTS03 08 – DISPENSER FRONT PARTS

Written by

in

CS22CFXTS03 08 – DISPENSER FRONT PARTS

Products

PositionProduct
2WP3196557 Whirlpool Screw
3WP2194719 Whirlpool Refrigerator Clip
4WPW10224328 Whirlpool Refrigerator Spring
5WP2196195 Whirlpool Refrigerator Door Pin
6WP2180353 Whirlpool Dispenser Door
7Door Mechanism Assembly
8Delay Mechanism
9WP2206671B Whirlpool Refrigerator Grille
108201537 Whirlpool Water Tubing Assembly
11Lever, Ice Dispenser (Black)
12WP2180224 Whirlpool Dispenser Funnel Guide
132180200 Whirlpool Refrigerator Socket
14WP2162361 Whirlpool Switch
15WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
16WP22002263 Whirlpool Dryer 10W Light Bulb
17WPW10152858 Whirlpool Refrigerator Dispenser Arm
18WP2180279 Whirlpool Refrigerator Switch
21CABINET (NOT A SERVICEABLE PART)
22WP3400906 Whirlpool Refrigerator Screw
232311701B Whirlpool Refrigerator Front Cover
24Spacer, Switch (2)
25WP2195051 Whirlpool Refrigerator Clip
26WP2304673 Whirlpool Refrigerator Bracket
27Sleeve, Delay Mechanism
