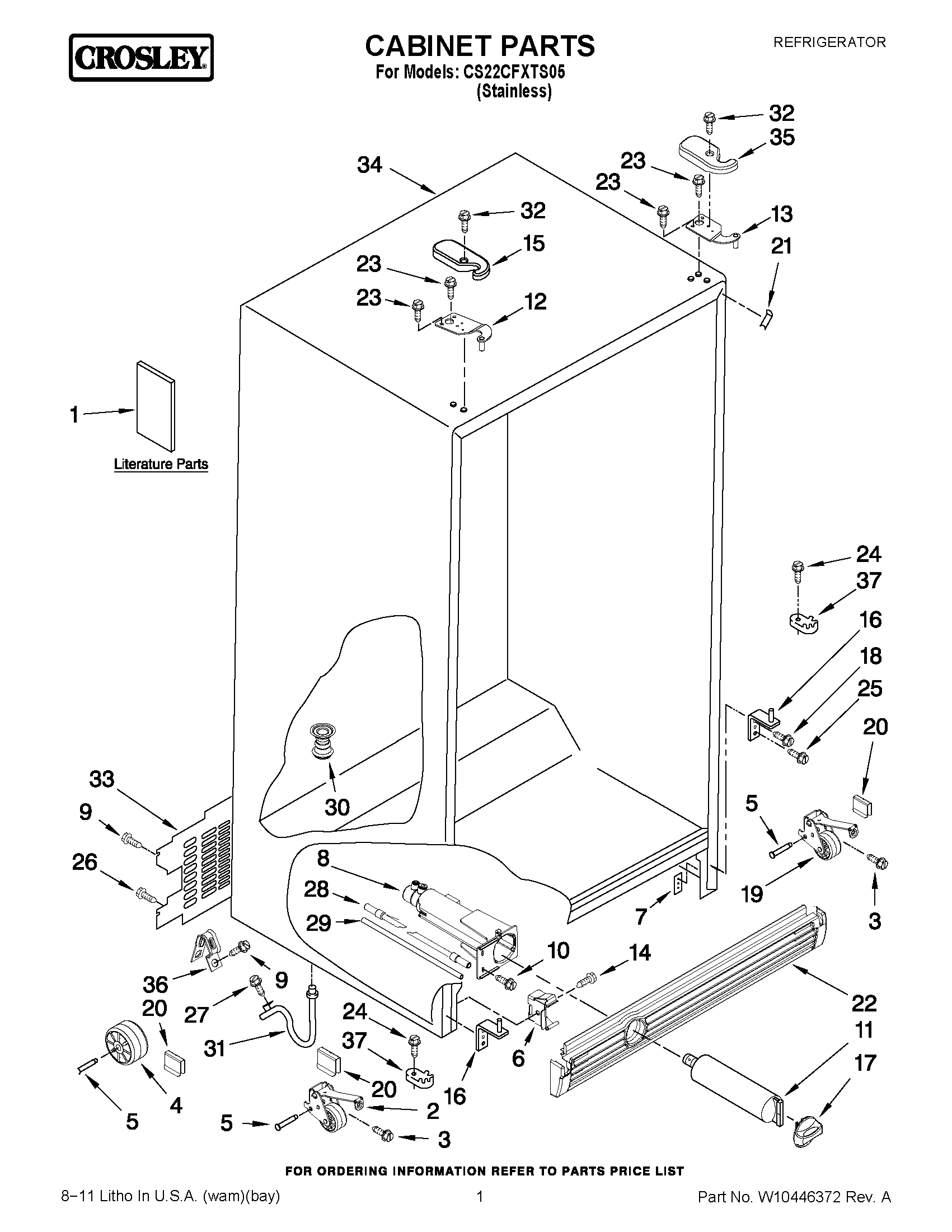

CS22CFXTS05 01 – CABINET PARTS

CS22CFXTS05 01 – CABINET PARTS

Written by

in

CS22CFXTS05 01 – CABINET PARTS

Products

PositionProduct
1USE & CARE GUIDE
1Modular Icemaker Service Sheet
1Service & Wiring Sheet
1Energy Label
2WPW10304660 Whirlpool Wheel Assembly
3W10803534 Whirlpool Screw
4WPW10475495 Whirlpool Roller Assembly
5W11594405 Whirlpool Axle
6WP2155013 Whirlpool Refrigerator Clip
7WP2304249 Whirlpool Refrigerator Plate
8WP2186443 Whirlpool Water Filter Housing
10WP489500 Whirlpool Refrigerator Screw
11EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
12HINGE TOP (FC)
13HINGE TOP (RC)
14WP489128 Whirlpool Refrigerator Screw
15WP2203407B Whirlpool Refrigerator Cover
16HINGE BOTTOM
17WP2186494B Whirlpool Refrigerator Filter Cap
18WP489497 Whirlpool Screw
19WPW10304659 Whirlpool Wheel Assembly
20WP2174706 Whirlpool Refrigerator Pin Hitch
21W11252732 Whirlpool Refrigerator Filler
22W10802713 Whirlpool Refrigerator Grille
24WP489483 Whirlpool Screw
25W10856122 Whirlpool Refrigerator Screw
26WP488488 Whirlpool Refrigerator Screw
27WP489464 Whirlpool Refrigerator Screw
28TUBE, FILTER INLET
29WPW10350006 Whirlpool Refrigerator Water Tube
30W11566763 Whirlpool Fitting
31W11512417 Whirlpool Drain Connector
32WP8281227 Whirlpool Screw
33WP2188756 Whirlpool Refrigerator Unit Cover
34CABINET (NOT A SERVICEABLE PART)
35WP2203408B Whirlpool Refrigerator Cover
36549193 Whirlpool Refrigerator Power Clamp
37WPW10329686 Whirlpool Door Cam Black
