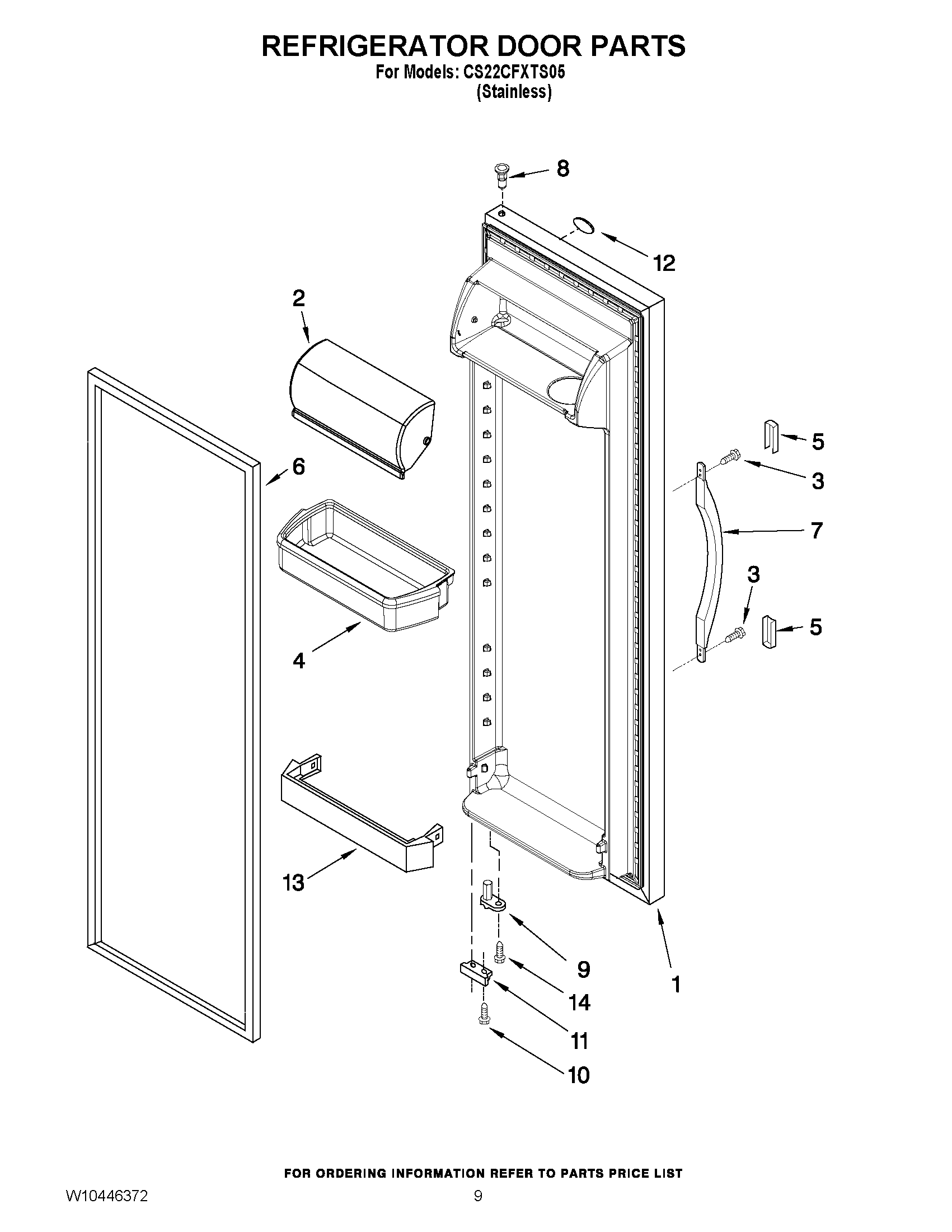

CS22CFXTS05 06 – REFRIGERATOR DOOR PARTS

CS22CFXTS05 06 – REFRIGERATOR DOOR PARTS

Written by

in

CS22CFXTS05 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 6)
2WP2256101 Whirlpool Dairy Door
3WP489491 Whirlpool Refrigerator Screw
4WP2187172 Whirlpool Refrigerator Door Shelf Bin
5WP2194272B Whirlpool Refrigerator Handle Endcap
62159081 Whirlpool Refrigerator Door Gasket
7HANDLE (BLACK)
8WP2182181 Whirlpool Refrigerator Thimble
9WP2182179 Whirlpool Cam Closer
10WP489483 Whirlpool Screw
11Bracket, Door Stop (Black)
12Nameplate
13WP2309941 Whirlpool Refrigerator Door Bar Trim
14WP3400012 Whirlpool Refrigerator Screw
