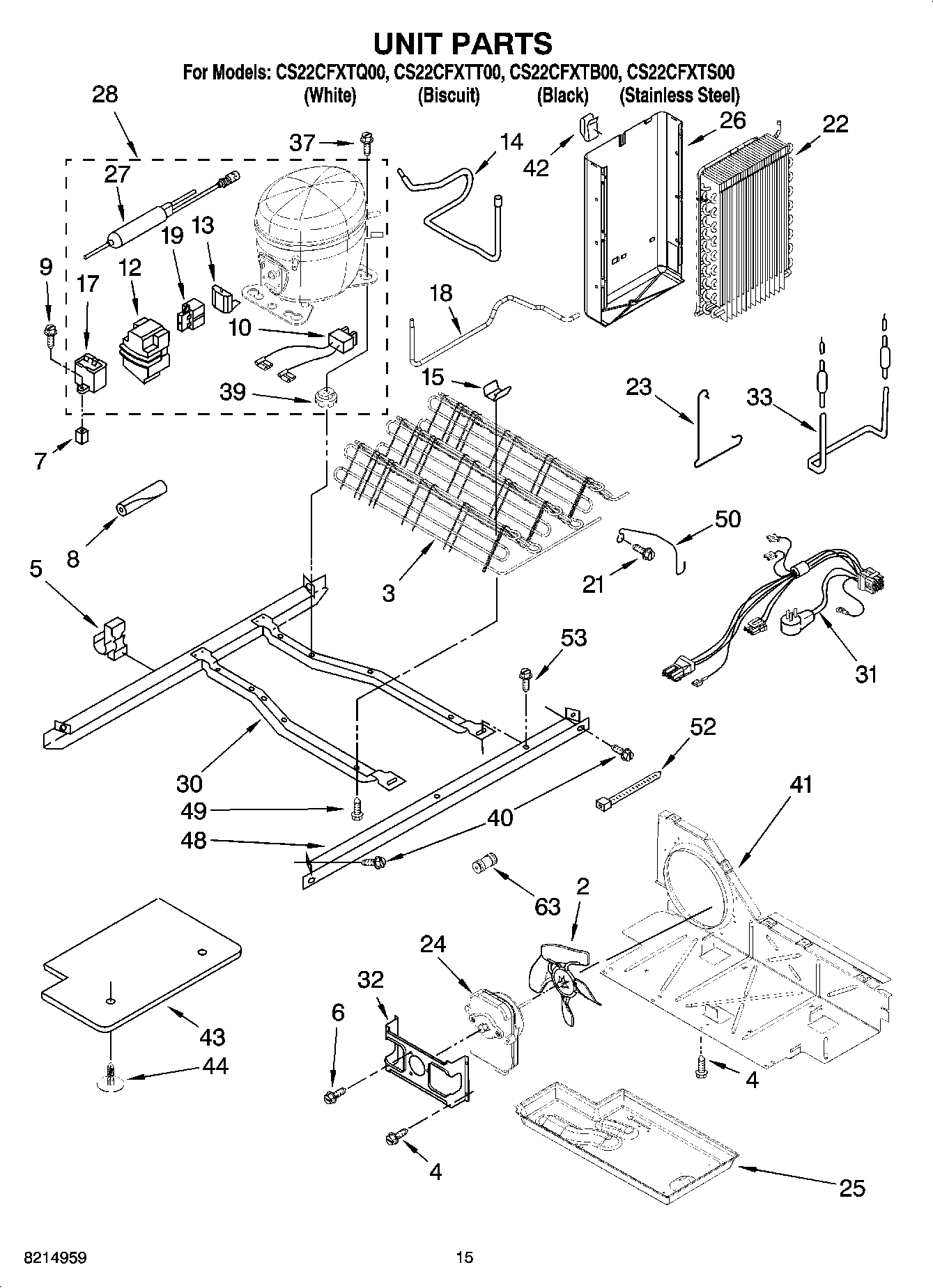

CS22CFXTT00 09 – UNIT PARTS

Products

Position	Product
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	Screw Grommet
8	SLEEVE
9	W11693756 Whirlpool Screw Assembly
10	WP2172890 Whirlpool Refrigerator Wire
10	2311653 Whirlpool Refrigerator Jumper Wire
12	WP2162358 Whirlpool Refrigerator Terminal Cover
12	2217635 Whirlpool Term Cover
13	2162216 Whirlpool Refrigerator Overload
13	WP2187145 Whirlpool Refrigerator Overload
14	2220642 Whirlpool Refrigerator Tube
15	W10683556 Whirlpool Refrigerator Clip
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
17	WP65889-4 Whirlpool Refrigerator Capacitor
18	2261599 Whirlpool Refrigerator Tube
19	WP10097204 Whirlpool Start Relay
19	W10920279 Whirlpool Refrigerator Start Relay
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Clamp
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	2217195 Whirlpool Refrigerator Shield
27	W10843121 Whirlpool Refrigerator Tube
27	WPW10143759 Whirlpool Dryer Filter
28	W10309990 Whirlpool Refrigerator Compressor
30	2304903 Whirlpool Refrigerator Frame
31	2311733 Whirlpool Refrigerator Wire Harness
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323197 Whirlpool Refrigerator Heater
39	876811 Whirlpool Grommet
39	WP4387558 Whirlpool Refrigerator Compressor Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
43	Unit Cover, Bottom
44	489396 Whirlpool Refrigerator Clip
48	Unit Mounting Rail
49	W11544659 Whirlpool Refrigerator Screw
50	Guard, Fan
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
63	978030 Whirlpool Refrigerator Valve
63	WPL ARI21782A8
63	VALVE, ACCESS (5/8“)
63	and Optional Pa
63	Following Parts Not Illustrated
63	876764 Whirlpool Refrigerator Primary Valve
63	978026 Whirlpool Refrigerator Primary Valve
63	VALVE, ACCESS (1/2“)
63	WP978025 Whirlpool Refrigerator Valve
63	WP4373559 Whirlpool Fitting
63	978027 Whirlpool Refrigerator Primary Valve
