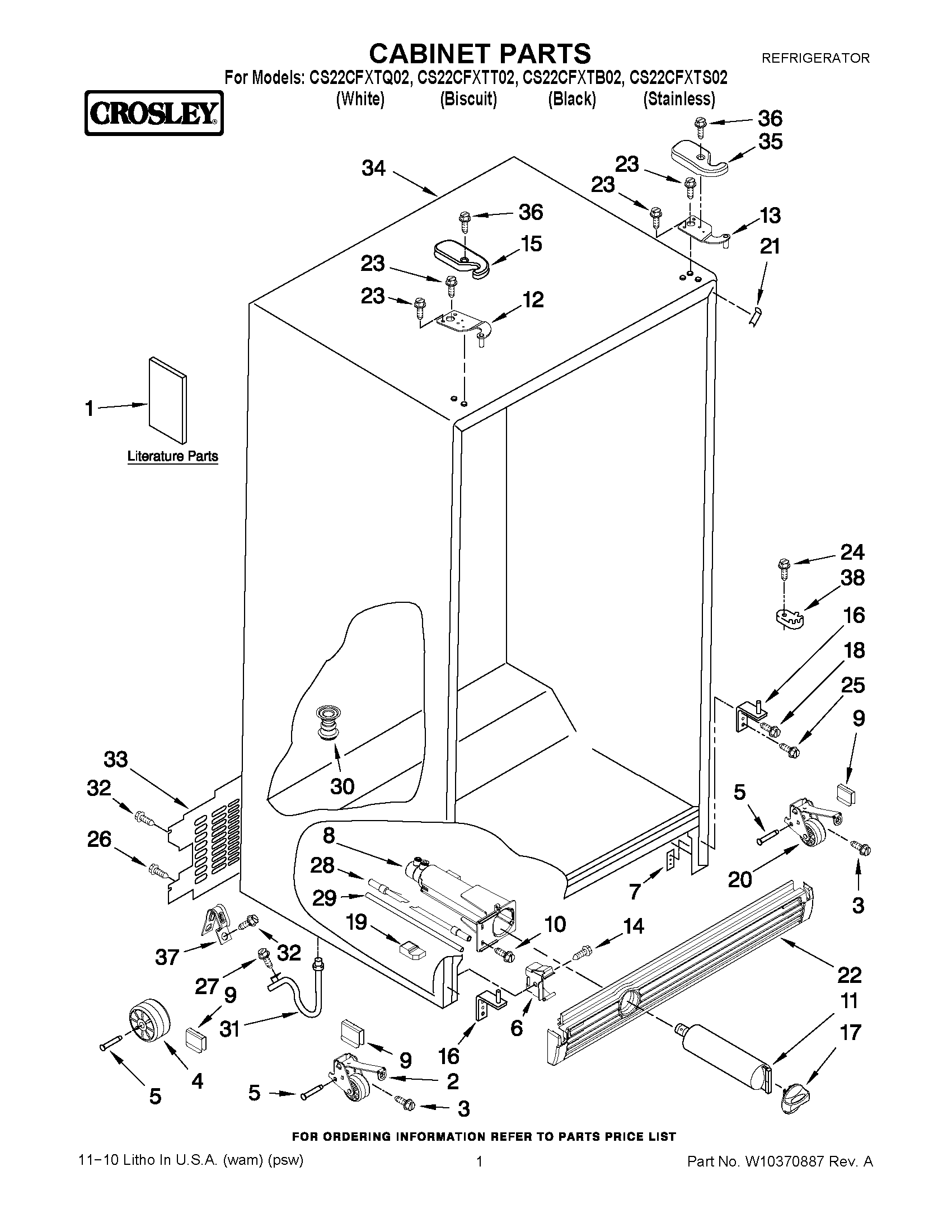

CS22CFXTT02 01 – CABINET PARTSadmin2025-04-26T09:35:14+00:00CS22CFXTT02 01 – CABINET PARTS ProductsPositionProduct1USE & CARE GUIDE1Modular Icemaker Service Sheet1SERVICE & WIRING SHEET1Energy Label2WPW10304660 Whirlpool Wheel Assembly3WP489427 Whirlpool Refrigerator Screw4WPW10475495 Whirlpool Roller Assembly5W11594405 Whirlpool Axle6WP2155013 Whirlpool Refrigerator Clip7WP2304249 Whirlpool Refrigerator Plate8WP2186443 Whirlpool Water Filter Housing9WP2174706 Whirlpool Refrigerator Pin Hitch10WP489500 Whirlpool Refrigerator Screw11EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)12HINGE TOP (FC)13HINGE TOP (RC)14WP489128 Whirlpool Refrigerator Screw152203407T Whirlpool Refrigerator Cover15WP2203407B Whirlpool Refrigerator Cover15WP2203407W Whirlpool Refrigerator Cover16HINGE BOTTOM17WP2186494B Whirlpool Refrigerator Filter Cap17WP2186494W Whirlpool Water Filter Cap17WP2186494T Whirlpool Water Filter Cap18WP489497 Whirlpool Screw19Block, Housing Support20WPW10304659 Whirlpool Wheel Assembly21WPW10283959 Whirlpool Refrigerator Filler21W11252732 Whirlpool Refrigerator Filler21W10283958 Whirlpool Refrigerator Filler22W10802713 Whirlpool Refrigerator Grille24WP489483 Whirlpool Screw25W10856122 Whirlpool Refrigerator Screw26WP488488 Whirlpool Refrigerator Screw27WP489464 Whirlpool Refrigerator Screw28TUBE, FILTER INLET29WPW10350006 Whirlpool Refrigerator Water Tube30W11566763 Whirlpool Fitting31W11512417 Whirlpool Drain Connector33WP2188756 Whirlpool Refrigerator Unit Cover34CABINET (NOT A SERVICEABLE PART)35Hinge Cover (Biscuit)35WP2203408B Whirlpool Refrigerator Cover35WP2203408W Whirlpool Refrigerator Cover36WP8281227 Whirlpool Screw37549193 Whirlpool Refrigerator Power Clamp38WPW10329686 Whirlpool Door Cam Black
