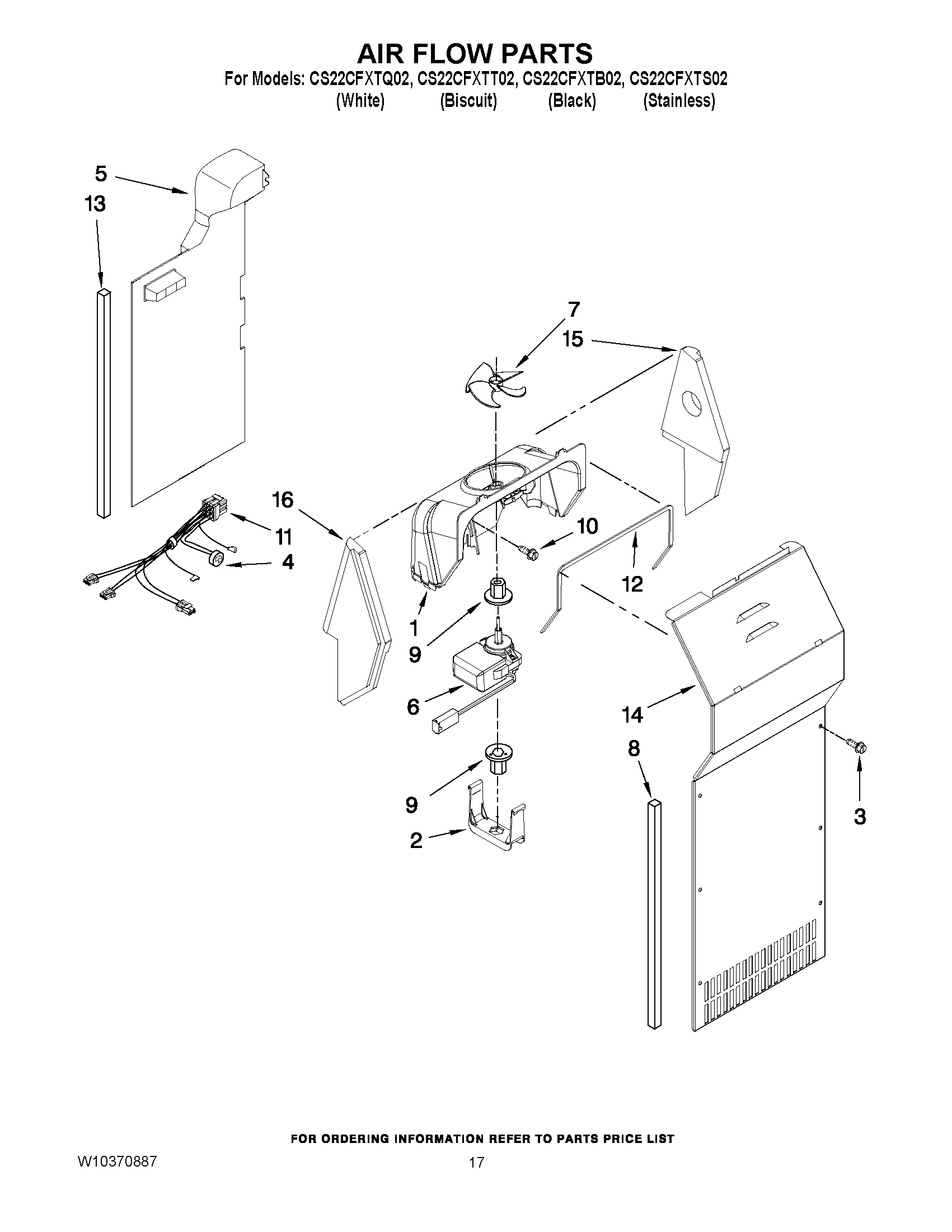

CS22CFXTT02 10 – AIR FLOW PARTS

CS22CFXTT02 10 – AIR FLOW PARTS

Written by

in

CS22CFXTT02 10 – AIR FLOW PARTS

Products

PositionProduct
1W11254898 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
34389654 Whirlpool Screw
4WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5W10166220 Whirlpool Refrigerator Air Duct
64389144 Whirlpool Refrigerator Evaporator Fan Motor
7WP2169142 Whirlpool Fan Blade
8WP2304241 Whirlpool Refrigerator Gasket
9WP2176759 Whirlpool Refrigerator Grommet
10WP489478 Whirlpool Refrigerator Screw
11W11084324 Whirlpool Refrigerator Wire Harness
12WP2155789 Whirlpool Refrigerator Gasket
134388500 Whirlpool Refrigerator Gasket
144388357 Whirlpool Refrigerator Evaporator Cover
154388358 Whirlpool Refrigerator Support Bracket
