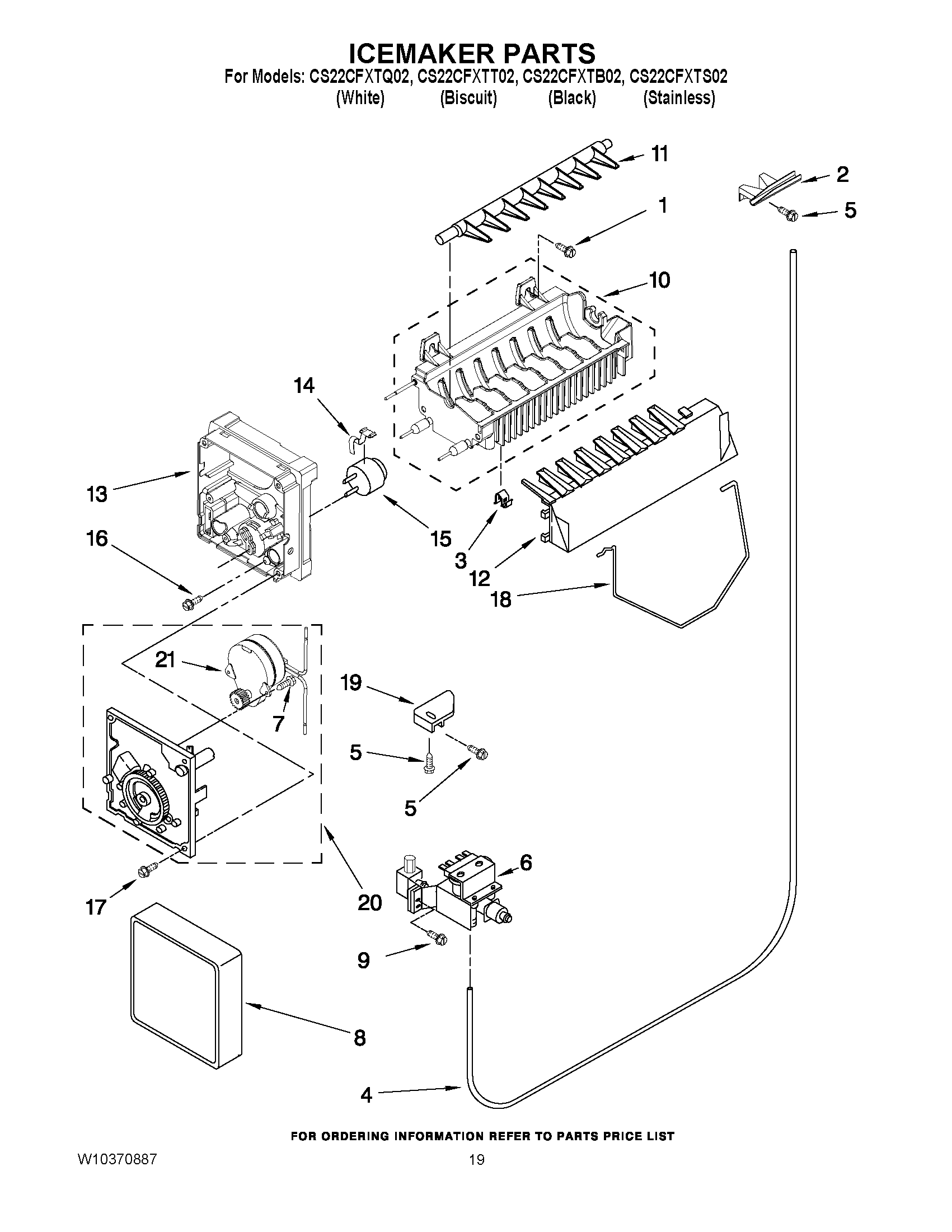

CS22CFXTT02 12 – ICEMAKER PARTSadmin2025-04-26T09:36:46+00:00CS22CFXTT02 12 – ICEMAKER PARTS ProductsPositionProduct1WP488163 Whirlpool Refrigerator Screw2W11505385 Whirlpool Refrigerator Chute3WP628379 Whirlpool Refrigerator Clip4W10823511 Whirlpool Refrigerator Water Tube5WP489478 Whirlpool Refrigerator Screw6W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit7489136 Whirlpool Refrigerator Screw8WPW10289690 Whirlpool Ice Maker Cover9WPW10141625 Whirlpool Refrigerator Screw Assembly10WPW10190929 Whirlpool Refrigerator Ice Maker Mold11WP627843 Whirlpool Refrigerator Ejector Arm12WPW10122563 Whirlpool Refrigerator Stripper Arm13WP2195914 Whirlpool Refrigerator Ice Maker Housing14WP2315522 Whirlpool Refrigerator Clip15WP627985 Whirlpool Icemaker Cycling Thermostat168533917 Whirlpool Refrigerator Screw17WP681249 Whirlpool Screw Assembly18W11342242 Whirlpool Refrigerator Ice Level Arm19W11500948 Whirlpool Refrigerator Bracket208201515 Whirlpool Refrigerator Motor and Gear Module Kit21CABINET (NOT A SERVICEABLE PART)100WPW10190965 Whirlpool Refrigerator Ice Maker Assembly
