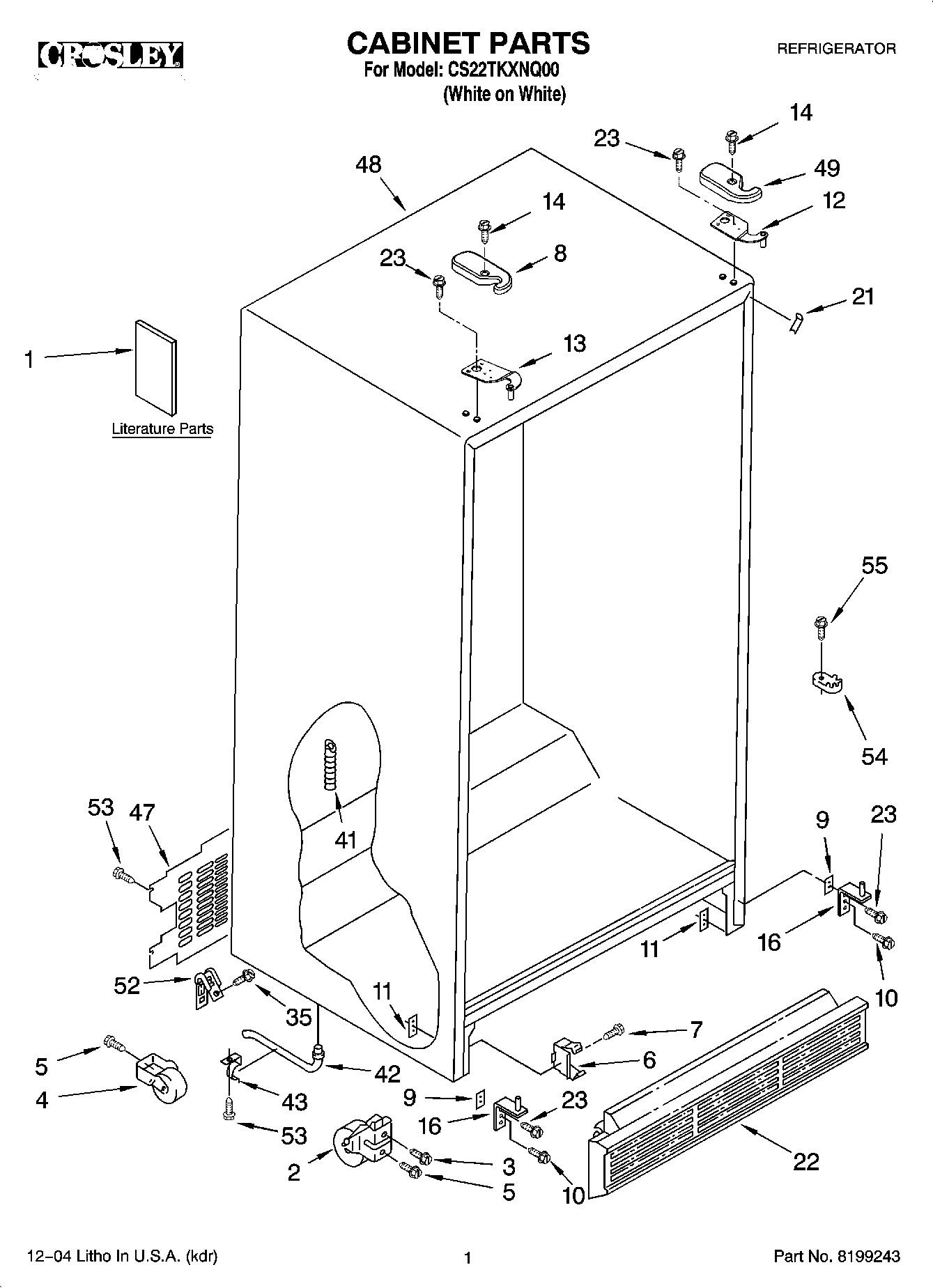

CS22TKXNQ00 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	Energy Guide
1	Service & Wiring Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489128 Whirlpool Refrigerator Screw
8	WP2203407W Whirlpool Refrigerator Cover
9	WP2209697 Whirlpool Refrigerator Shim
10	W10856122 Whirlpool Refrigerator Screw
11	WP2304249 Whirlpool Refrigerator Plate
12	WP2203771 Whirlpool Refrigerator Door Hinge
13	WP2203770 Whirlpool Refrigerator Door Hinge
14	WP8281227 Whirlpool Screw
16	8201707 Whirlpool Door Hinge
21	Filler, Wrapper (White)
22	W10804014 Whirlpool Refrigerator Grille
23	WP489497 Whirlpool Screw
35	WP489464 Whirlpool Refrigerator Screw
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
47	WP2188756 Whirlpool Refrigerator Unit Cover
48	Cabinet (Not A Serviceable Part)
49	WP2203408W Whirlpool Refrigerator Cover
52	549193 Whirlpool Refrigerator Power Clamp
54	WPW10329686 Whirlpool Door Cam Black
55	WP489483 Whirlpool Screw
