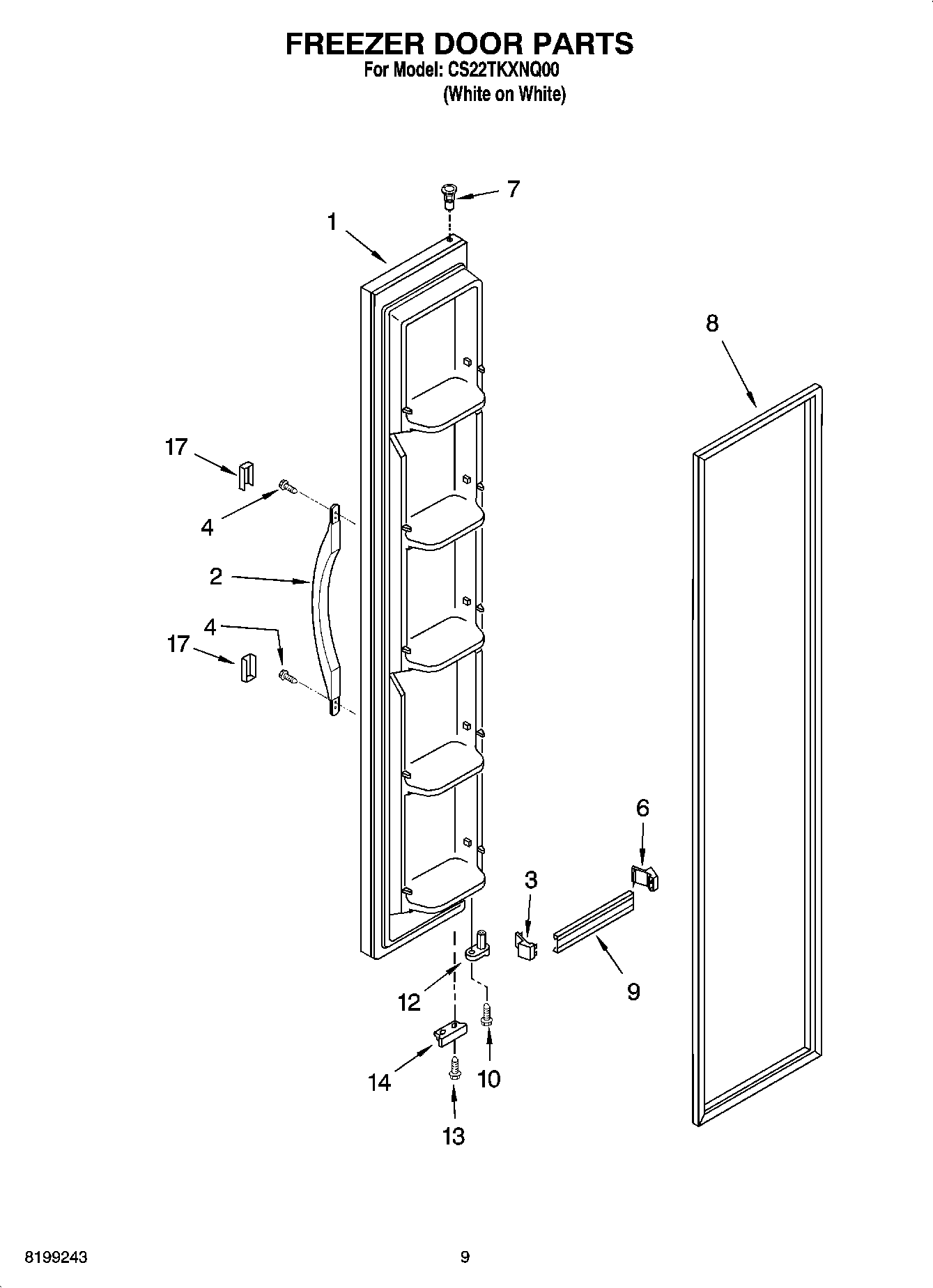

CS22TKXNQ00 07 – FREEZER DOOR PARTS

CS22TKXNQ00 07 – FREEZER DOOR PARTS

Written by

in

CS22TKXNQ00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer, Door (White)
2Handle, Center (White)
3WP2195917K Whirlpool Refrigerator Endcap
4WP489491 Whirlpool Refrigerator Screw
6ENDCAP
7WP2182181 Whirlpool Refrigerator Thimble
82159072 Whirlpool Refrigerator FIP Gasket
9Door, Shelf (4)
10WP3400012 Whirlpool Refrigerator Screw
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
17WP2193353W Whirlpool Refrigerator Trim Handle
