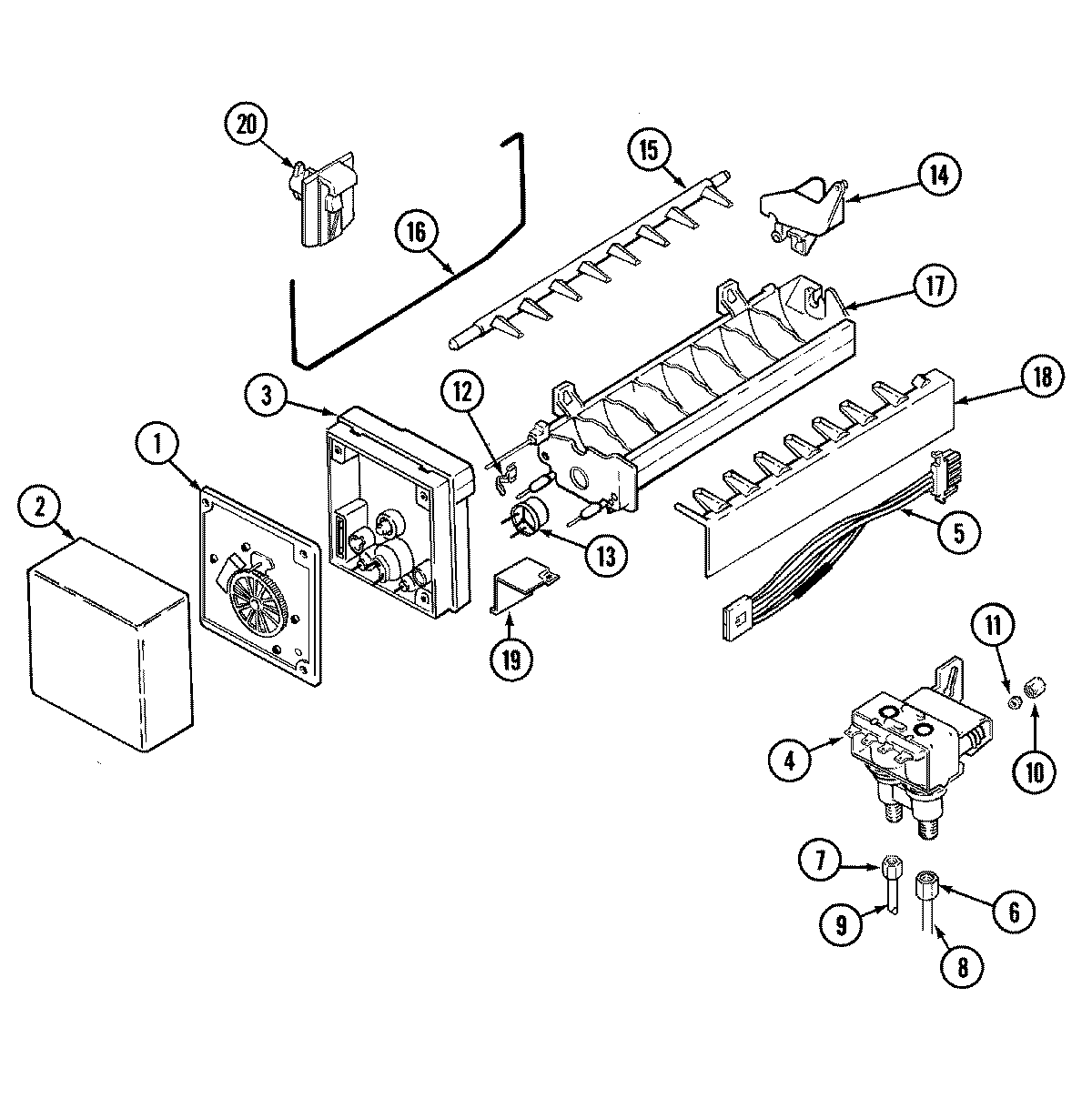

CS23B6DQ 10 – ICE MAKER (BISQUE)

CS23B6DQ 10 – ICE MAKER (BISQUE)

Written by

in

CS23B6DQ 10 – ICE MAKER (BISQUE)

Products

PositionProduct
1WP489478 Whirlpool Refrigerator Screw
1MAY 95109-1
2MAY 61004594
3WP2195914 Whirlpool Refrigerator Ice Maker Housing
3SCREW
461005626 Whirlpool Water Inlet Valve
4MAY 61002819
5MAY 61003318
6MAY 69583-2
7WP627018 Whirlpool Refrigerator Nut
8SEE NOTE GROUND WIRE, GREEN
9MAY 67579-2
10WP245183 Whirlpool Nut
11WP487627 Whirlpool Refrigerator Sleeve
12WP2315522 Whirlpool Refrigerator Clip
13MAY 95093-1
13WP627985 Whirlpool Icemaker Cycling Thermostat
14WP628356 Whirlpool Refrigerator Fill Cup
15WP627843 Whirlpool Refrigerator Ejector Arm
16MAY 61004136
17D7824706Q Whirlpool Refrigerator Ice Maker Assembly
18WP2182124 Whirlpool Refrigerator Stripper Arm
19BRACKET, MODULE & HEATER
19MAY 95108-1
20WP61005028 Whirlpool Refrigerator Support
