CS23G5Q 05 – FREEZER OUTER DOOR

CS23G5Q 05 – FREEZER OUTER DOOR

Written by

in

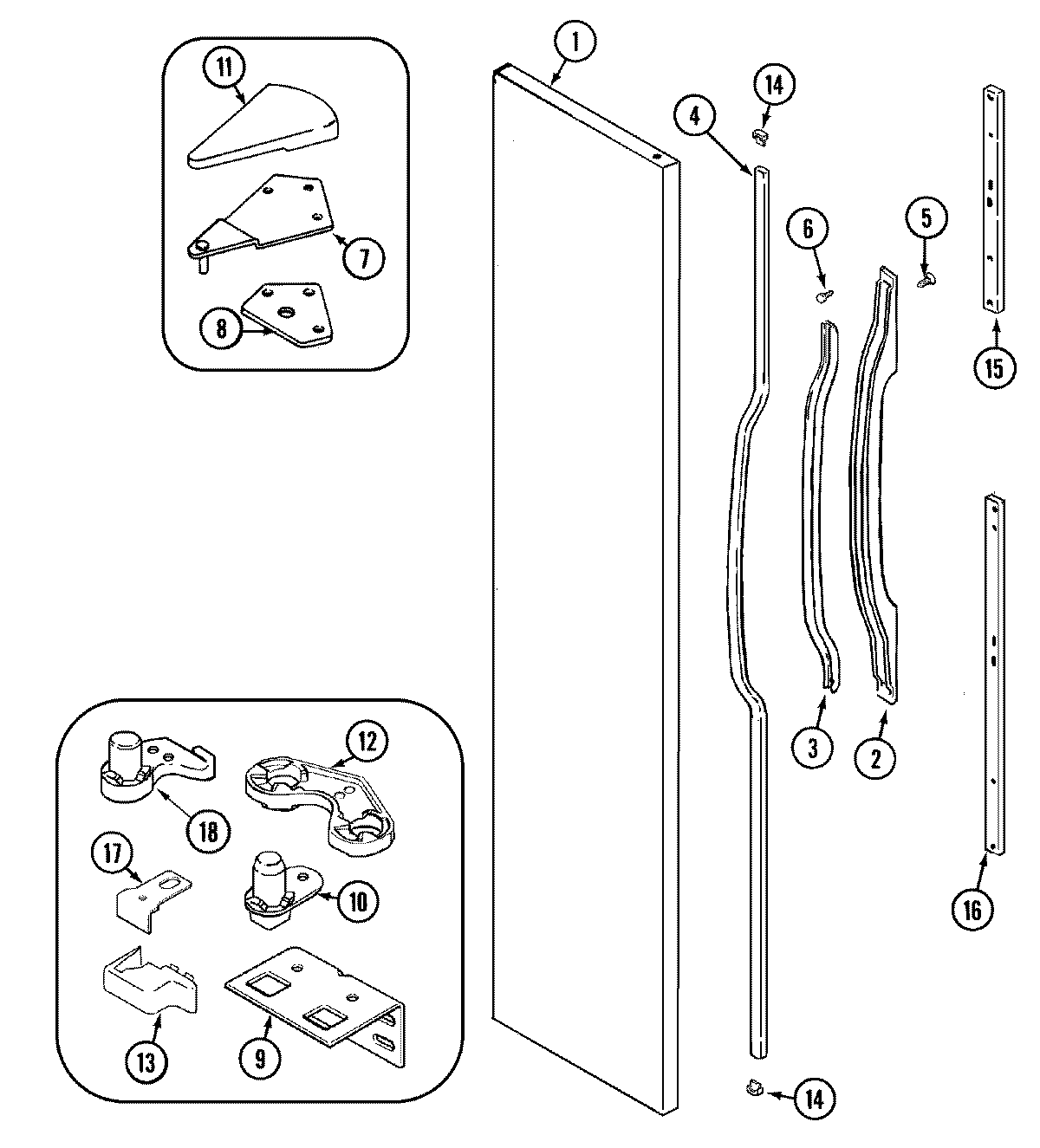

CS23G5Q 05 – FREEZER OUTER DOOR

Products

PositionProduct
1MAY 61005858
1MAY 61005037
2MAY 61004921
3MAY 61003168
4MAY 61004922
5MAY 400061-1
7WP3-24838-048 Whirlpool Refrigerator Screw
7MAY 61004896
8MAY 61001922
9MAY 61004764
93400112 Whirlpool Refrigerator Screw
10MAY 61003174
11MAY 61004786
1261003647 Whirlpool Refrigerator Freezer Door Closer Cam Stop
13MAY 61004769
14MAY 61004924
15MAY 61004928
16MAY 61004923
17MAY 61003273
18W10856122 Whirlpool Refrigerator Screw
18MAY 61005726
