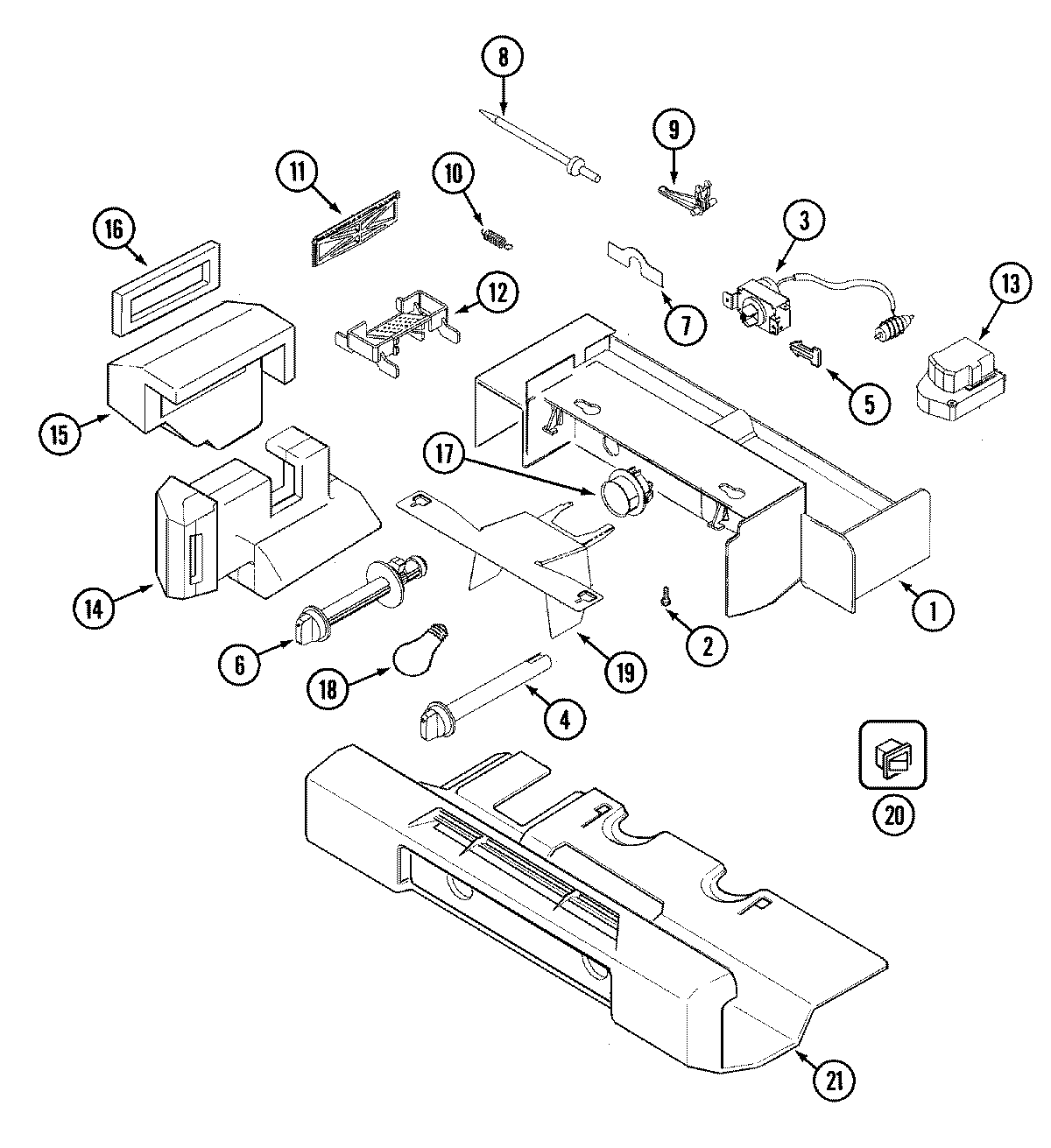

CS24G6DW 02 – CONTROLS

Products

Position	Product
NI	MAY 61006035
NI	SEE NOTE GROUND WIRE, GREEN
NI	MAY 61004280
NI	MAY 61003154
1	MAY 61003152
1	MAY 61004424
1	MAY 61003135
2	WPW10348409 Whirlpool Screw
3	WP61003456 Whirlpool Refrigerator Temperature Control
4	MAY 61003136
5	MAY 61003137
6	MAY 61003138
7	MAY 61003139
8	MAY 61003155
9	MAY 61003140
10	MAY 61003141
11	MAY 61003142
12	MAY 61004278
13	WP68233-2 Whirlpool Refrigerator Defrost Timer
13	MAY 405007-1
14	MAY 61004279
14	MAY 61003144
15	MAY 61005220
15	MAY 61005075
16	MAY 61003819
17	SOCKET
18	W10887190 Whirlpool Refrigerator Light Bulb
19	MAY 61003149
20	W11384469 Whirlpool Door Switch
20	MAY 61006157
21	MAY 61003217
