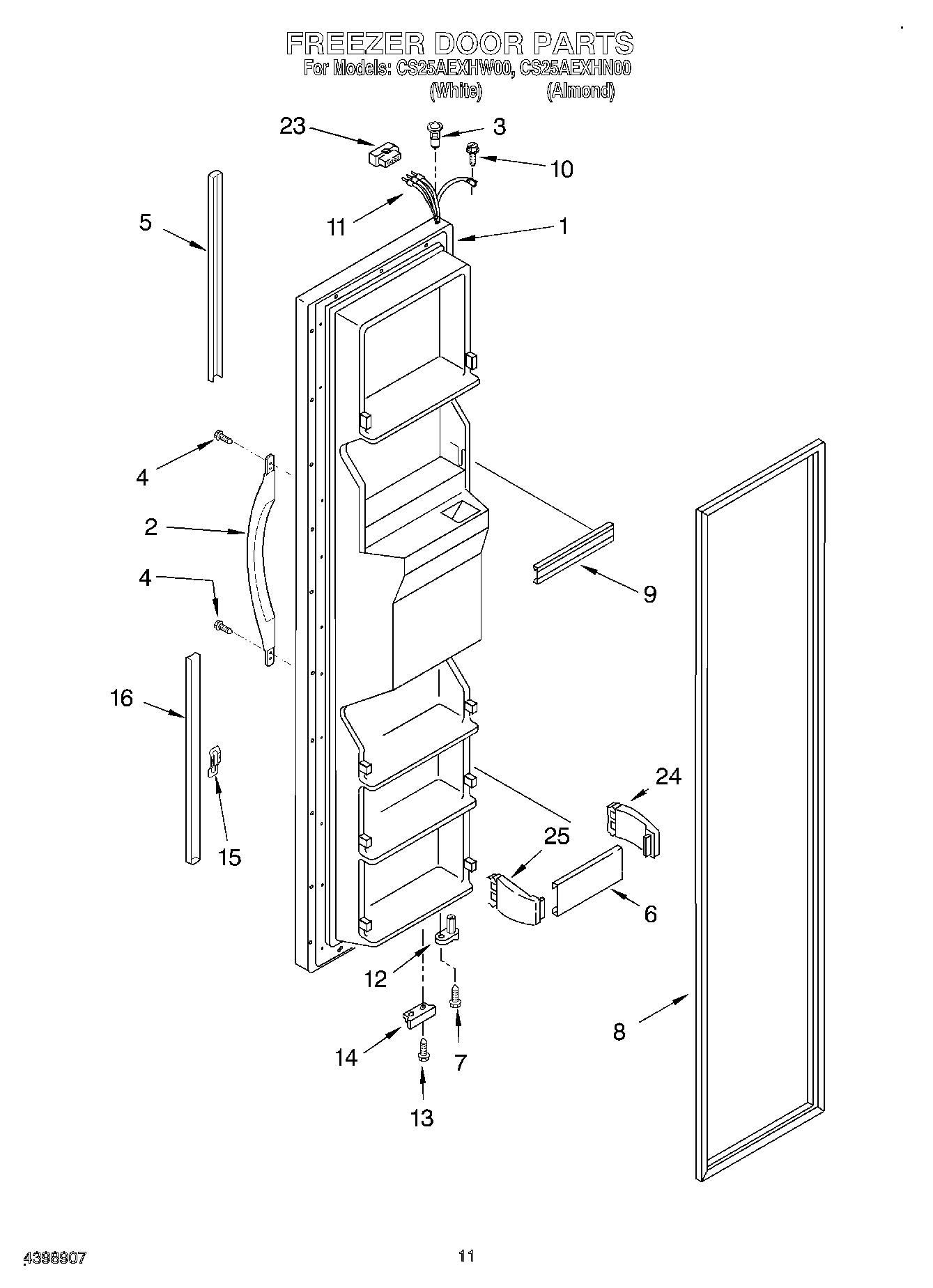

CS25AEXHW00 07 – FREEZER DOOR

CS25AEXHW00 07 – FREEZER DOOR

Written by

in

CS25AEXHW00 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Almond)
2Handle, Center (White)
2Handle, Center (Almond)
3WP2182181 Whirlpool Refrigerator Thimble
4WP489491 Whirlpool Refrigerator Screw
5Extension, Top (Almond)
5WP2194973W Whirlpool Door Trim
6Trivet, Shelf (4)
7WP3400012 Whirlpool Refrigerator Screw
82159074 Whirlpool Door Gasket Seal
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
11Wiring Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop (Chrome)
15WP2195327 Whirlpool Refrigerator Clip
16Extension, Bottom (White)
16Extension, Bottom (Almond)
23WP2154473 Whirlpool Refrigerator Connector
24ENDCAP
25WP2195917K Whirlpool Refrigerator Endcap
