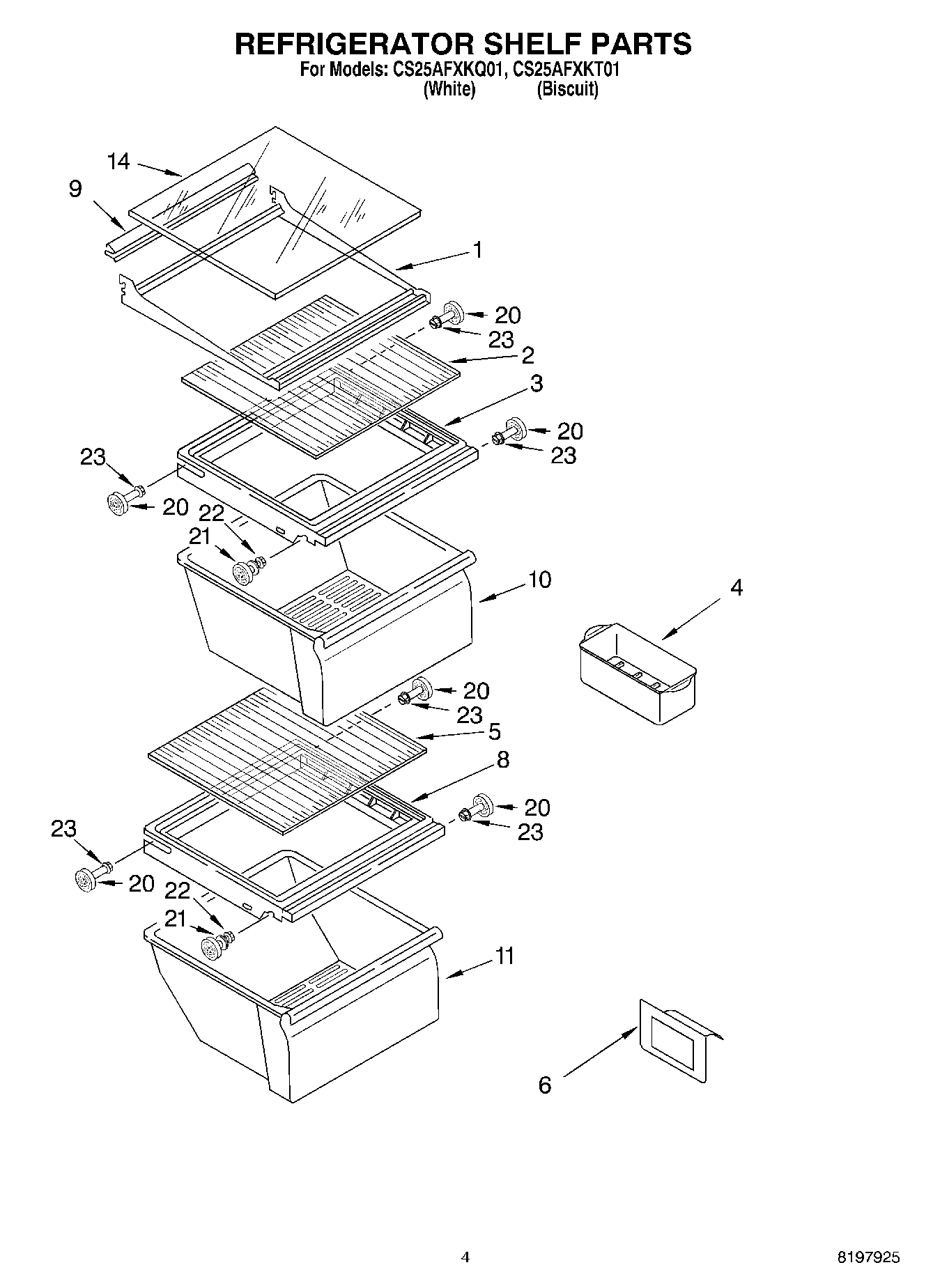

CS25AFXKQ01 03 – REFRIGERATOR SHELF

CS25AFXKQ01 03 – REFRIGERATOR SHELF

Written by

in

CS25AFXKQ01 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf, Cantilever (3)
2W10864399 Whirlpool Glass Shelf
3W10508993 Whirlpool Refrigerator Cover Pan
4W10136387A Whirlpool Refrigerator Egg Container
62179350 Whirlpool Refrigerator Deflector
8Cover, Meat Pan
9Retainer
10WP2188661 Whirlpool Crisper Pan
11WP2188664 Whirlpool Dishwasher Meat Crisper Pan
14Glass (3)
20WP2196483 Whirlpool Refrigerator Shelf Stud
21W11223328 Whirlpool Refrigerator Shelf Stud
22WP3400806 Whirlpool Screw
23WP3-24004-109 Whirlpool Refrigerator Screw
