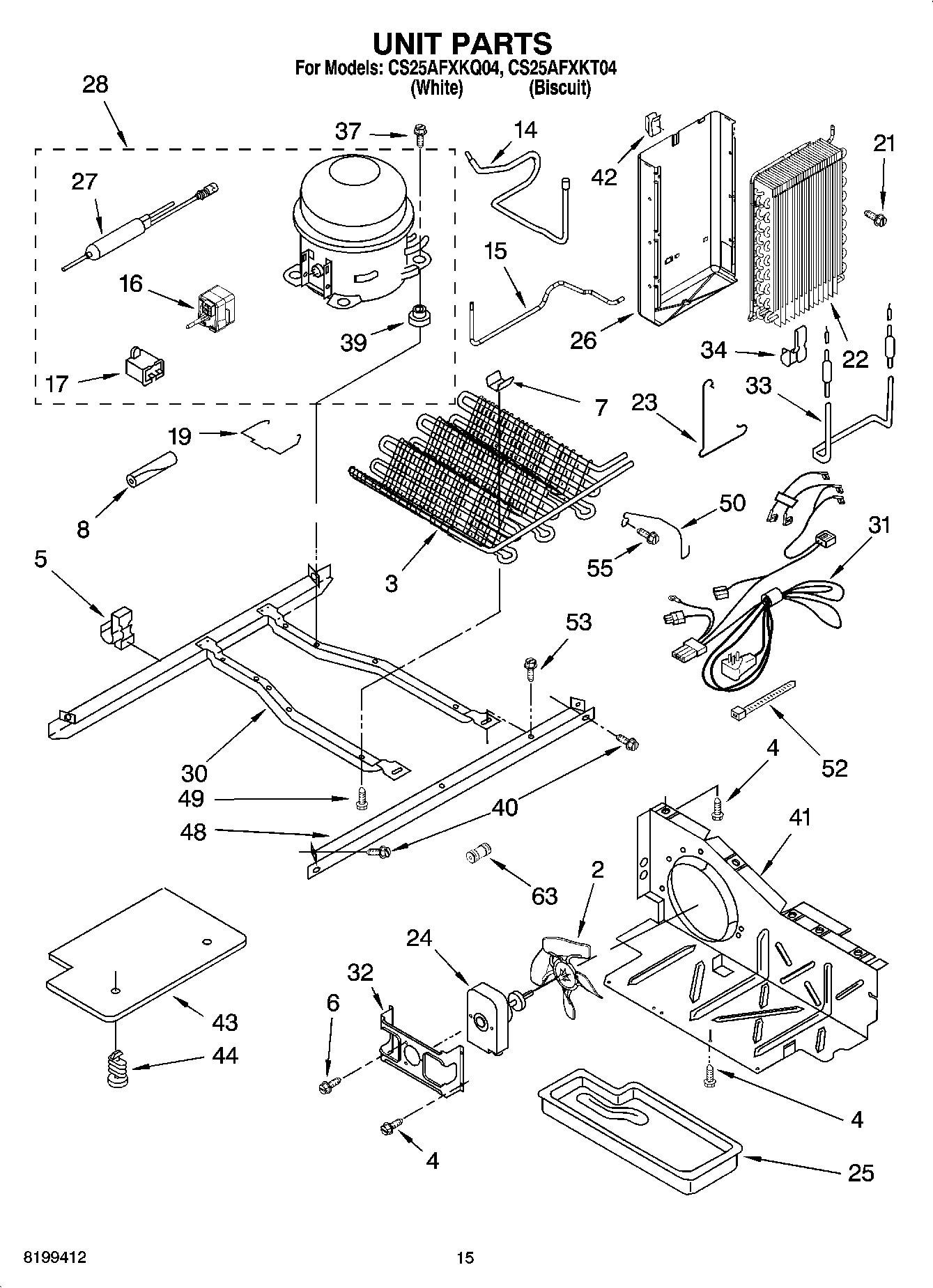

CS25AFXKQ04 09 – UNIT PARTSadmin2025-04-26T09:34:35+00:00CS25AFXKQ04 09 – UNIT PARTS ProductsPositionProduct2W11458267 Whirlpool Refrigerator Fan Blade32324712 Whirlpool Refrigerator Condenser4WP489464 Whirlpool Refrigerator Screw5Clip, Wire & Tube6WP8533993 Whirlpool Refrigerator Screw7W10683556 Whirlpool Refrigerator Clip8SLEEVE142313230 Whirlpool Tube152261599 Whirlpool Refrigerator Tube16WP2313162 Whirlpool Refrigerator Start Device17WP65889-4 Whirlpool Refrigerator Capacitor192255009 Whirlpool Retainer21WP489478 Whirlpool Refrigerator Screw22WP2188823 Whirlpool Refrigerator Evaporator23Clamp24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade25WPW10614158 Whirlpool Refrigerator Evaporator Tray26Heat Shield27W10843121 Whirlpool Refrigerator Tube28W10309994 Whirlpool Refrigerator Compressor302304904 Whirlpool Frame Assembly31Unit, Harness32WP2181929 Whirlpool Refrigerator Bracket33WP2323198 Whirlpool Refrigerator Heater34W11623163 Whirlpool Refrigerator Clip37SCREW39W11661108 Whirlpool Grommet40489340 Whirlpool Refrigerator Screw41W10896764 Whirlpool Refrigerator Air Baffle42Clip, Heat Shield43Unit Cover, Bottom44489396 Whirlpool Refrigerator Clip482305374 Whirlpool Refrigerator Unit Rail49W11544659 Whirlpool Refrigerator Screw50Guard, Fan52WPW10339879 Whirlpool Wire Tie53WP489427 Whirlpool Refrigerator Screw55WPW10141625 Whirlpool Refrigerator Screw Assembly63978026 Whirlpool Refrigerator Primary Valve63REFRIGERANT CHARGE 5.0 oz. (R-134A)63and Optional Parts Not Included63FOLLOWING PARTS NOT ILLUSTRATED63978027 Whirlpool Refrigerator Primary Valve63VALVE, ACCESS (5/8``)63978030 Whirlpool Refrigerator Valve63VALVE, ACCESS (1/2``)63WP4373559 Whirlpool Fitting63876764 Whirlpool Refrigerator Primary Valve63WP978025 Whirlpool Refrigerator Valve
