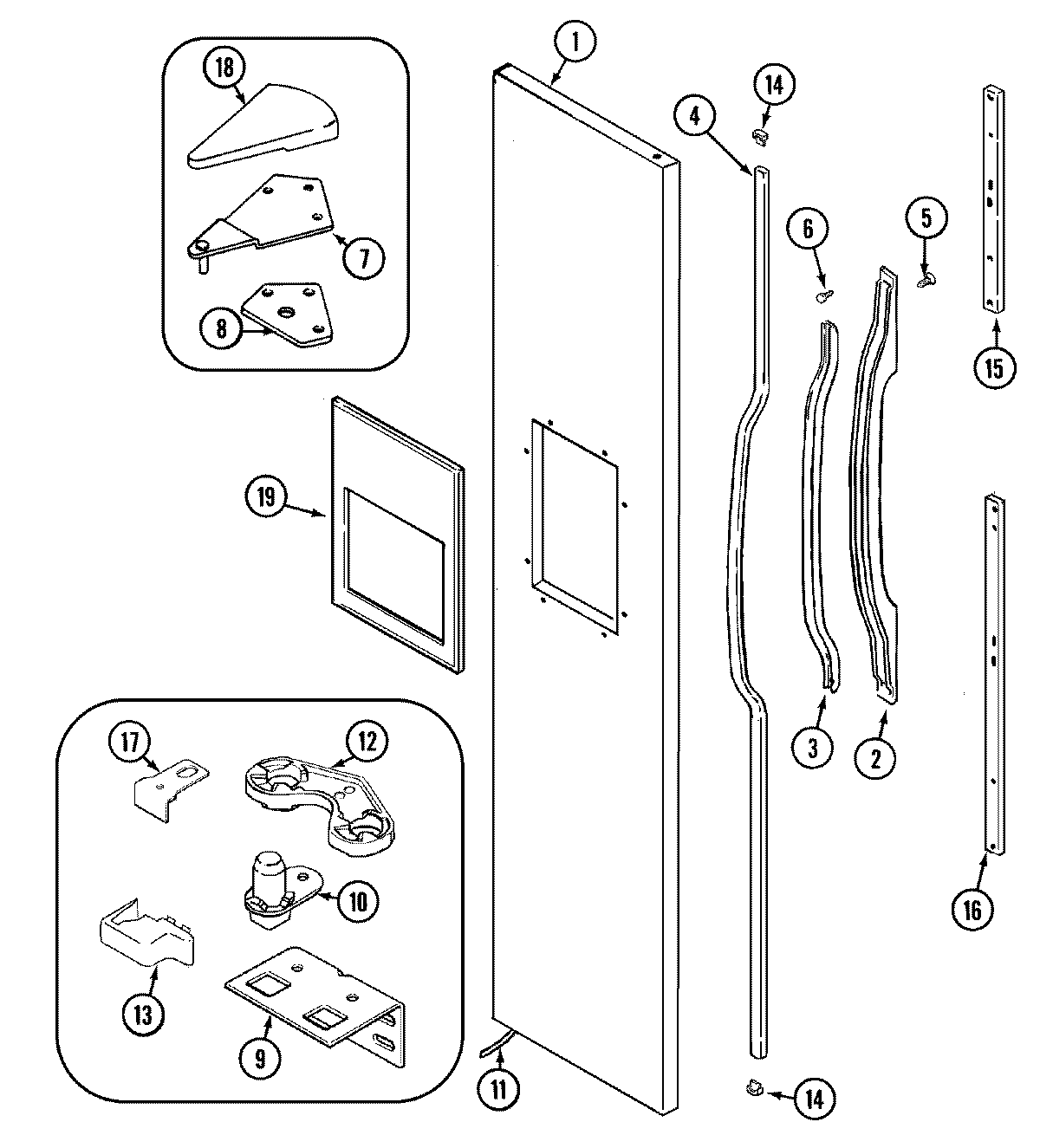

CS25B7DB 06 – FREEZER OUTER DOOR

CS25B7DB 06 – FREEZER OUTER DOOR

Written by

in

CS25B7DB 06 – FREEZER OUTER DOOR

Products

PositionProduct
1MAY 61003585
2MAY 61003684
3MAY 61003168
4MAY 61003527
5MAY 61003172
7WP3-24838-048 Whirlpool Refrigerator Screw
7MAY 61004896
8MAY 61001922
9MAY 61002361
93400112 Whirlpool Refrigerator Screw
10MAY 61003174
11MAY 61004557
11WP2300868 Whirlpool Refrigerator Fitting
1261003647 Whirlpool Refrigerator Freezer Door Closer Cam Stop
13MAY 61003529
14MAY 61003682
15MAY 61003680
16MAY 61003681
17W10856122 Whirlpool Refrigerator Screw
17MAY 61003471
18MAY 61004678
18WP8281196 Whirlpool Screw
19MAY 61003685
19415013-35 Whirlpool Refrigerator Screw
