CS25CFXTQ00 09 – UNIT PARTS

CS25CFXTQ00 09 – UNIT PARTS

Written by

in

CS25CFXTQ00 09 – UNIT PARTS

Products

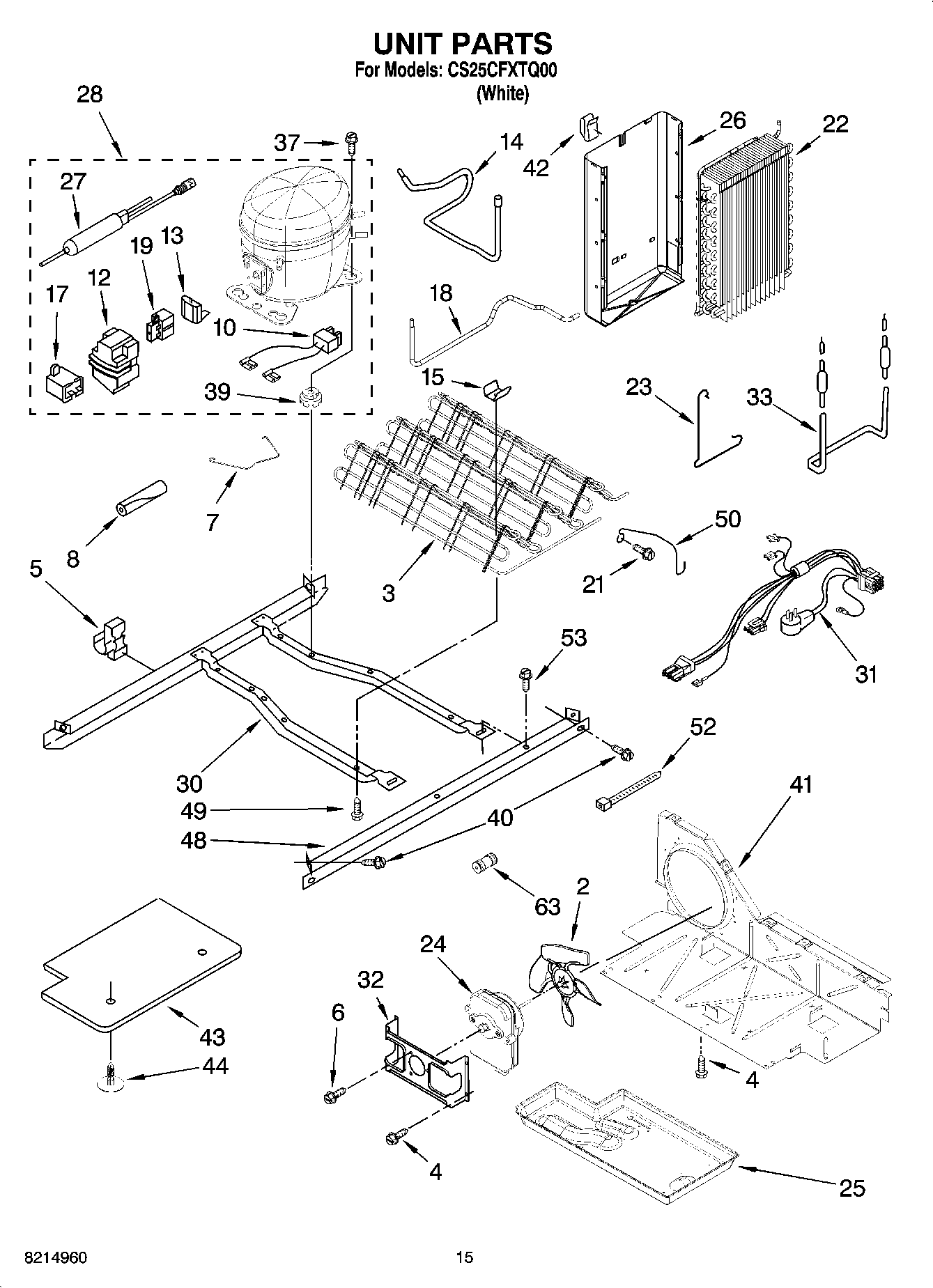

Position	Product
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	2223314 Whirlpool Refrigerator Clip
8	SLEEVE
10	WP2172890 Whirlpool Refrigerator Wire
10	2311653 Whirlpool Refrigerator Jumper Wire
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2154697 Whirlpool Refrigerator Overload
14	WP2205765 Whirlpool Refrigerator Tube
15	W10683556 Whirlpool Refrigerator Clip
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	2261599 Whirlpool Refrigerator Tube
19	WP2262181 Whirlpool Refrigerator Start Relay
19	W10920279 Whirlpool Refrigerator Start Relay
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Heat Shield
27	W10843121 Whirlpool Refrigerator Tube
28	W10309994 Whirlpool Refrigerator Compressor
30	2304904 Whirlpool Frame Assembly
31	2311733 Whirlpool Refrigerator Wire Harness
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323198 Whirlpool Refrigerator Heater
39	876811 Whirlpool Grommet
39	WP4387558 Whirlpool Refrigerator Compressor Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
43	Unit Cover, Bottom
44	489396 Whirlpool Refrigerator Clip
48	2305374 Whirlpool Refrigerator Unit Rail
49	W11544659 Whirlpool Refrigerator Screw
50	Guard, Fan
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
63	REFRIGERANT CHARGE 5
63	Following Parts Not Illustrated and Optional Parts Not Included
63	978026 Whirlpool Refrigerator Primary Valve
63	VALVE, ACCESS (5/8“)
63	876764 Whirlpool Refrigerator Primary Valve
63	VALVE, ACCESS (1/2“)
63	978030 Whirlpool Refrigerator Valve
63	WP4373559 Whirlpool Fitting
63	978027 Whirlpool Refrigerator Primary Valve
63	WP978025 Whirlpool Refrigerator Valve
