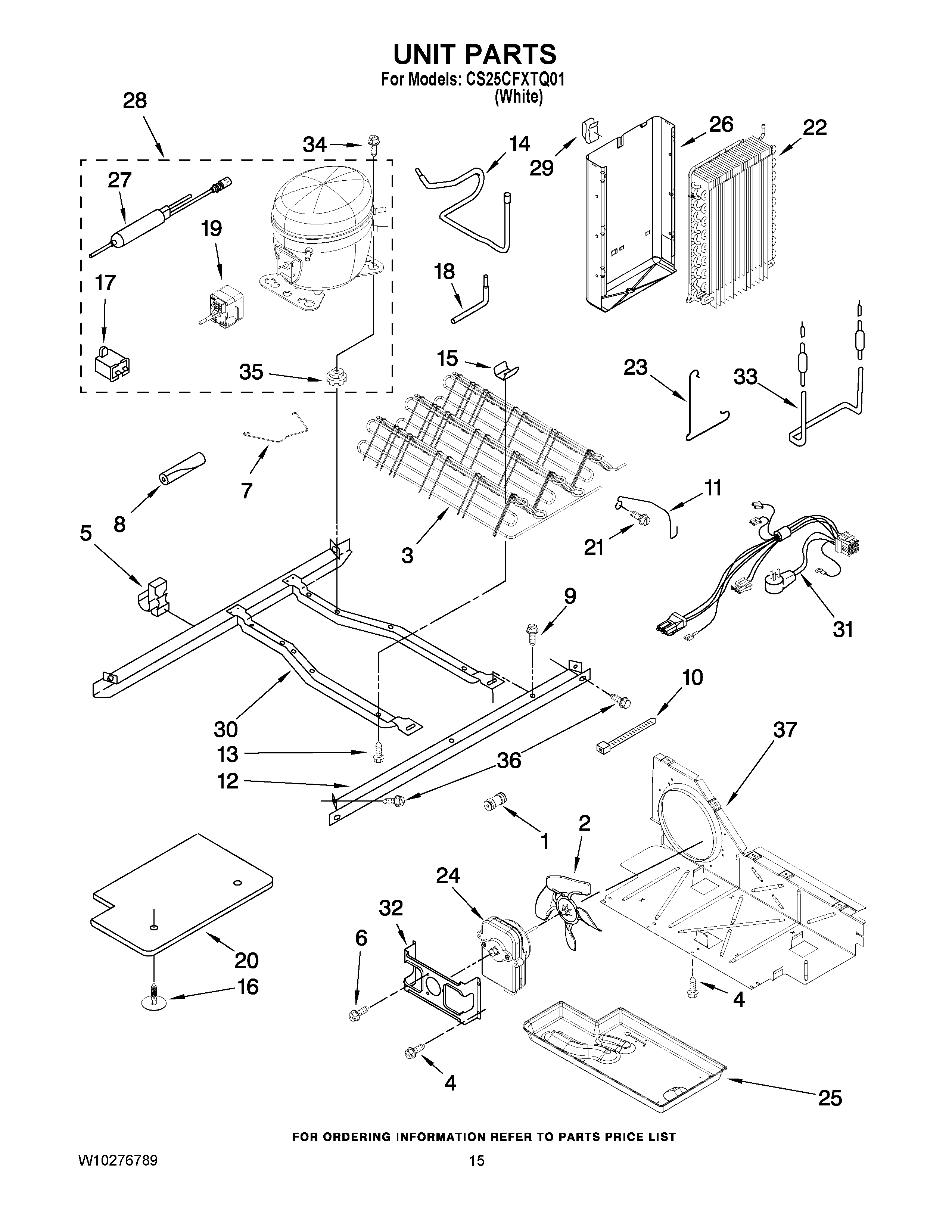

CS25CFXTQ01 09 – UNIT PARTS
Written by
in
CS25CFXTQ01 09 – UNIT PARTS
Products
Position
Product
NI
VALVE, ACCESS (1/2“)
NI
REFRIGERANT CHARGE 5.0 oz. (R-134A)
NI
WP978025 Whirlpool Refrigerator Valve
NI
978030 Whirlpool Refrigerator Valve
NI
978027 Whirlpool Refrigerator Primary Valve
NI
978026 Whirlpool Refrigerator Primary Valve
NI
876764 Whirlpool Refrigerator Primary Valve
NI
VALVE, ACCESS (5/8“)
1
WPW10334458 Whirlpool Refrigerator Connector
2
W11458267 Whirlpool Refrigerator Fan Blade
3
2324712 Whirlpool Refrigerator Condenser
4
WP489464 Whirlpool Refrigerator Screw
5
Clip, Wire & Tube
6
WP8533993 Whirlpool Refrigerator Screw
7
2223313 Whirlpool Clip
8
SLEEVE
9
WP489427 Whirlpool Refrigerator Screw
10
WPW10339879 Whirlpool Wire Tie
11
Guard, Fan
12
WPW10196323 Whirlpool Refrigerator Rail Assembly
13
W11544659 Whirlpool Refrigerator Screw
14
WP2205765 Whirlpool Refrigerator Tube
15
W10683556 Whirlpool Refrigerator Clip
16
489396 Whirlpool Refrigerator Clip
17
WPW10662129 Whirlpool Refrigerator Run Capacitor
18
W10858105 Whirlpool Refrigerator Tube
19
WP2304885 Whirlpool Refrigerator Start Device
20
Unit Cover, Bottom
21
WP489478 Whirlpool Refrigerator Screw
22
WP2188823 Whirlpool Refrigerator Evaporator
23
Clamp
24
WP2188874 Whirlpool Refrigerator Condenser Motor
25
WPW10614158 Whirlpool Refrigerator Evaporator Tray
26
W10194475 Whirlpool Refrigerator Shield
27
WPW10143759 Whirlpool Dryer Filter
28
W10139460 Whirlpool Refrigerator Compressor
29
Clip, Heat Shield
30
W10196321 Whirlpool Refrigerator Frame
31
Unit, Harness
32
WP2181929 Whirlpool Refrigerator Bracket
33
WP2323198 Whirlpool Refrigerator Heater
35
876811 Whirlpool Grommet
35
WP4387558 Whirlpool Refrigerator Compressor Grommet
36
489340 Whirlpool Refrigerator Screw
37
Air Baffle
←
