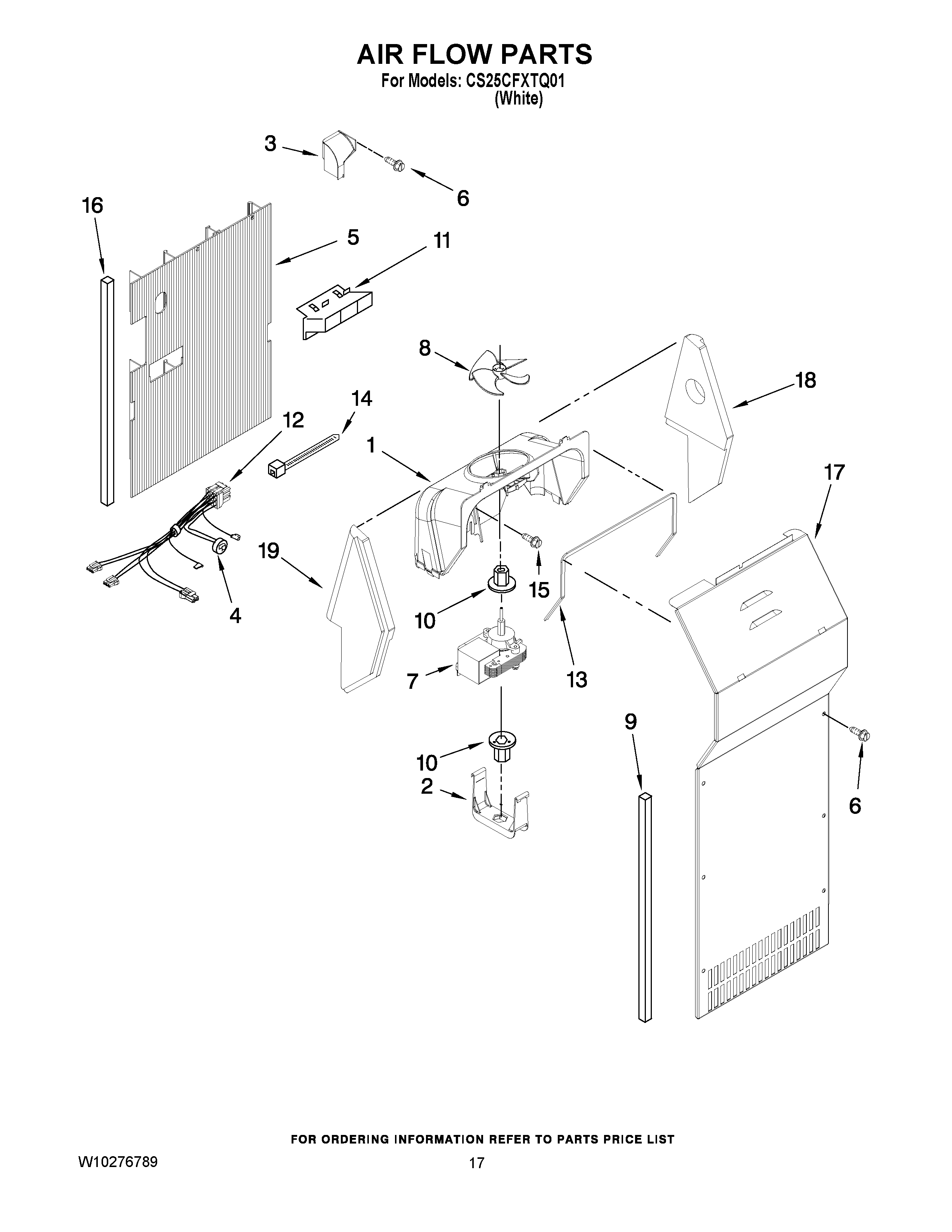

CS25CFXTQ01 10 – AIR FLOW PARTS

CS25CFXTQ01 10 – AIR FLOW PARTS

Written by

in

CS25CFXTQ01 10 – AIR FLOW PARTS

Products

PositionProduct
1WP2182120 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3W10803597 Whirlpool Refrigerator Air Scoop
4WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5Air Duct Freezer
64389654 Whirlpool Screw
74389144 Whirlpool Refrigerator Evaporator Fan Motor
8WP2169142 Whirlpool Fan Blade
9WP2304241 Whirlpool Refrigerator Gasket
10WP2176759 Whirlpool Refrigerator Grommet
112182146 Whirlpool Refrigerator Duct
12W11234406 Whirlpool Refrigerator Wire Harness
13WP2155789 Whirlpool Refrigerator Gasket
14WPW10339879 Whirlpool Wire Tie
15WP489478 Whirlpool Refrigerator Screw
164388500 Whirlpool Refrigerator Gasket
17Cover, Evaporator
184388358 Whirlpool Refrigerator Support Bracket
