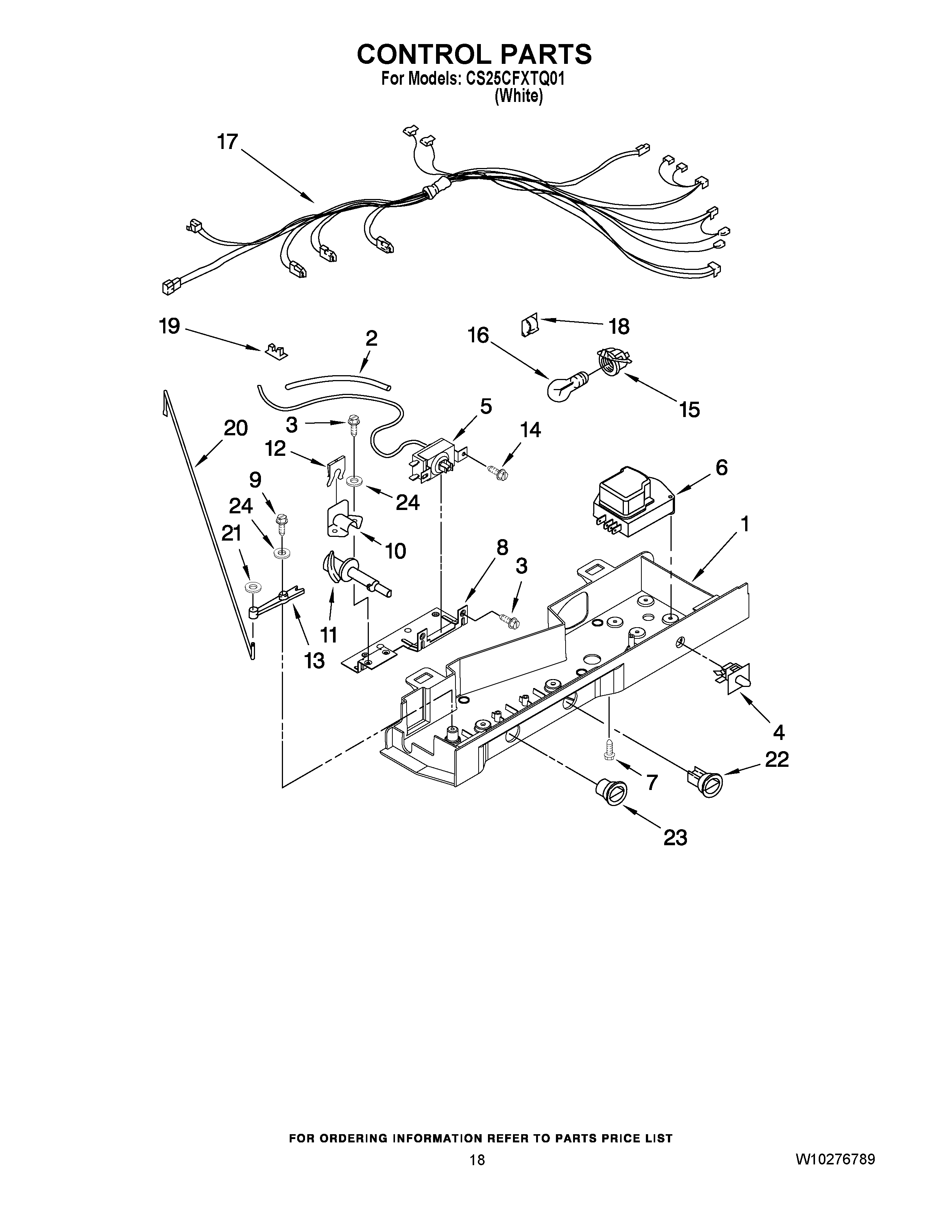

CS25CFXTQ01 11 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2198202 Whirlpool Refrigerator Temperature Thermostat
6	W10822278 Whirlpool Defrost Timer
7	489392 Whirlpool Refrigerator Screw
8	2311611 Whirlpool Refrigerator Bracket
9	627068 Whirlpool Refrigerator Screw
10	1110560 Whirlpool Refrigerator Bearing
11	WP2182195 Whirlpool Refrigerator Cam
12	WP2196062 Whirlpool Refrigerator Clip
13	Pivot Arm
14	WP965173 Whirlpool Dishwasher Screw
15	4387478 Whirlpool Refrigerator Light Socket
16	RANGE ONLY 40W 120V APPL BULB
17	2311636 Whirlpool Refrigerator Wire Harness
18	WP1115374 Whirlpool Refrigerator Clip
19	CLIP, WIRING
20	2311631 Whirlpool Refrigerator Rod
21	Fastener, Push-On
22	W10723843 Whirlpool Refrigerator Thermostat Knob
23	2311615 Whirlpool Refrigerator Knob
24	489203 Whirlpool Refrigerator Washer
