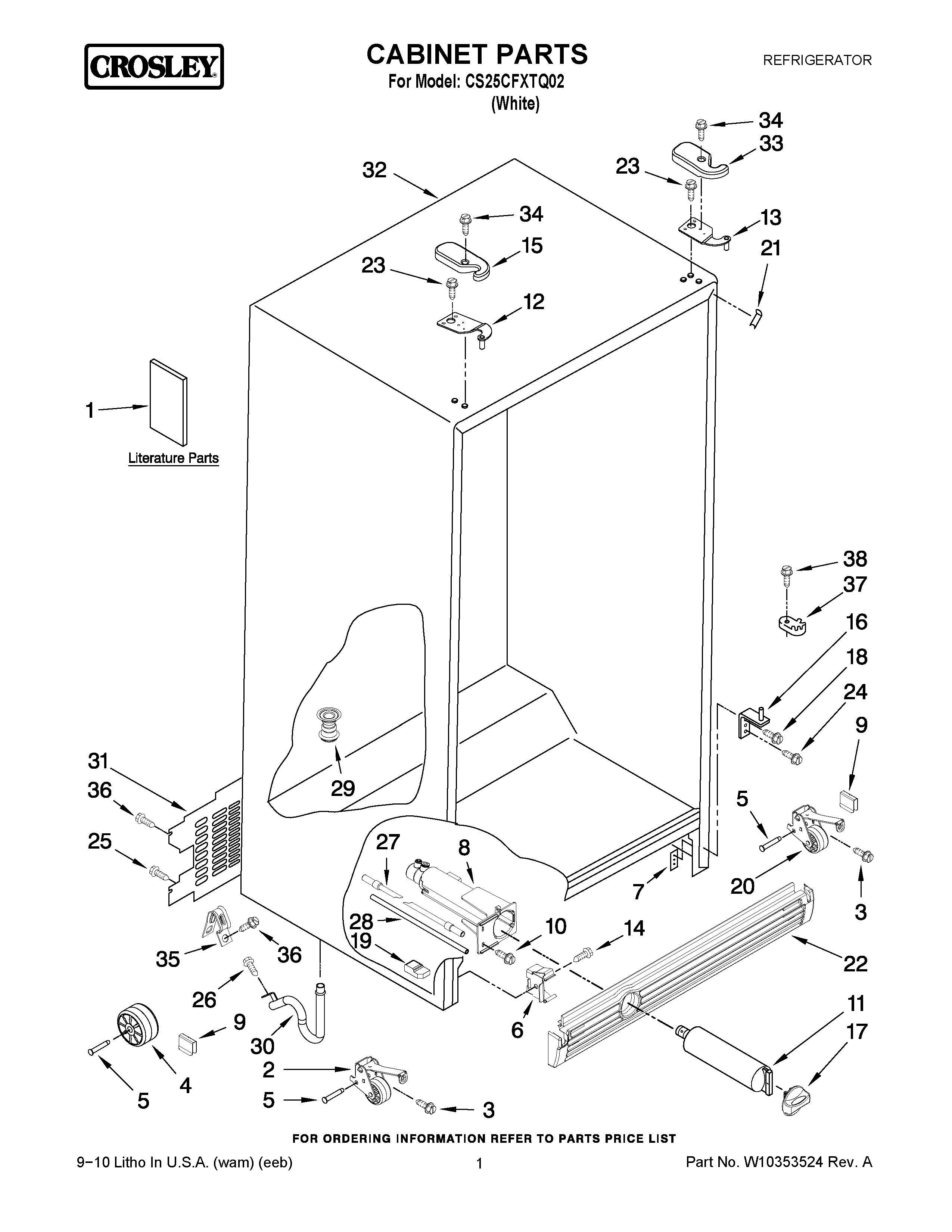

CS25CFXTQ02 01 – CABINET PARTS

Products

Position	Product
1	ENERGY LABEL
1	Service & Wiring Sheet
1	USE & CARE GUIDE
1	Modular Icemaker Service Sheet
1	INSTRUCTION SHEET, DOOR REMOVAL
2	WPW10304660 Whirlpool Wheel Assembly
3	WP489427 Whirlpool Refrigerator Screw
4	WPW10475495 Whirlpool Roller Assembly
5	W11594405 Whirlpool Axle
6	WP2155013 Whirlpool Refrigerator Clip
7	WP2304249 Whirlpool Refrigerator Plate
8	Housing, Water Filter
9	WP2174706 Whirlpool Refrigerator Pin Hitch
10	WP489500 Whirlpool Refrigerator Screw
11	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
12	HINGE TOP (FC)
13	HINGE TOP (RC)
14	WP489128 Whirlpool Refrigerator Screw
15	WP2203407W Whirlpool Refrigerator Cover
16	HINGE BOTTOM
17	WP2186494W Whirlpool Water Filter Cap
18	WP489497 Whirlpool Screw
19	Block, Housing Support
20	WPW10304659 Whirlpool Wheel Assembly
21	WPW10283959 Whirlpool Refrigerator Filler
22	W10803964 Whirlpool Grille Assembly
24	W10856122 Whirlpool Refrigerator Screw
25	WP488488 Whirlpool Refrigerator Screw
26	WP489464 Whirlpool Refrigerator Screw
27	TUBE, FILTER INLET
28	WPW10350006 Whirlpool Refrigerator Water Tube
29	W11566763 Whirlpool Fitting
30	W11512417 Whirlpool Drain Connector
31	WP2188755 Whirlpool Rear Panel
32	CABINET (NOT A SERVICEABLE PART)
33	WP2203408W Whirlpool Refrigerator Cover
34	WP8281227 Whirlpool Screw
35	549193 Whirlpool Refrigerator Power Clamp
37	WPW10329686 Whirlpool Door Cam Black
38	WP489483 Whirlpool Screw
