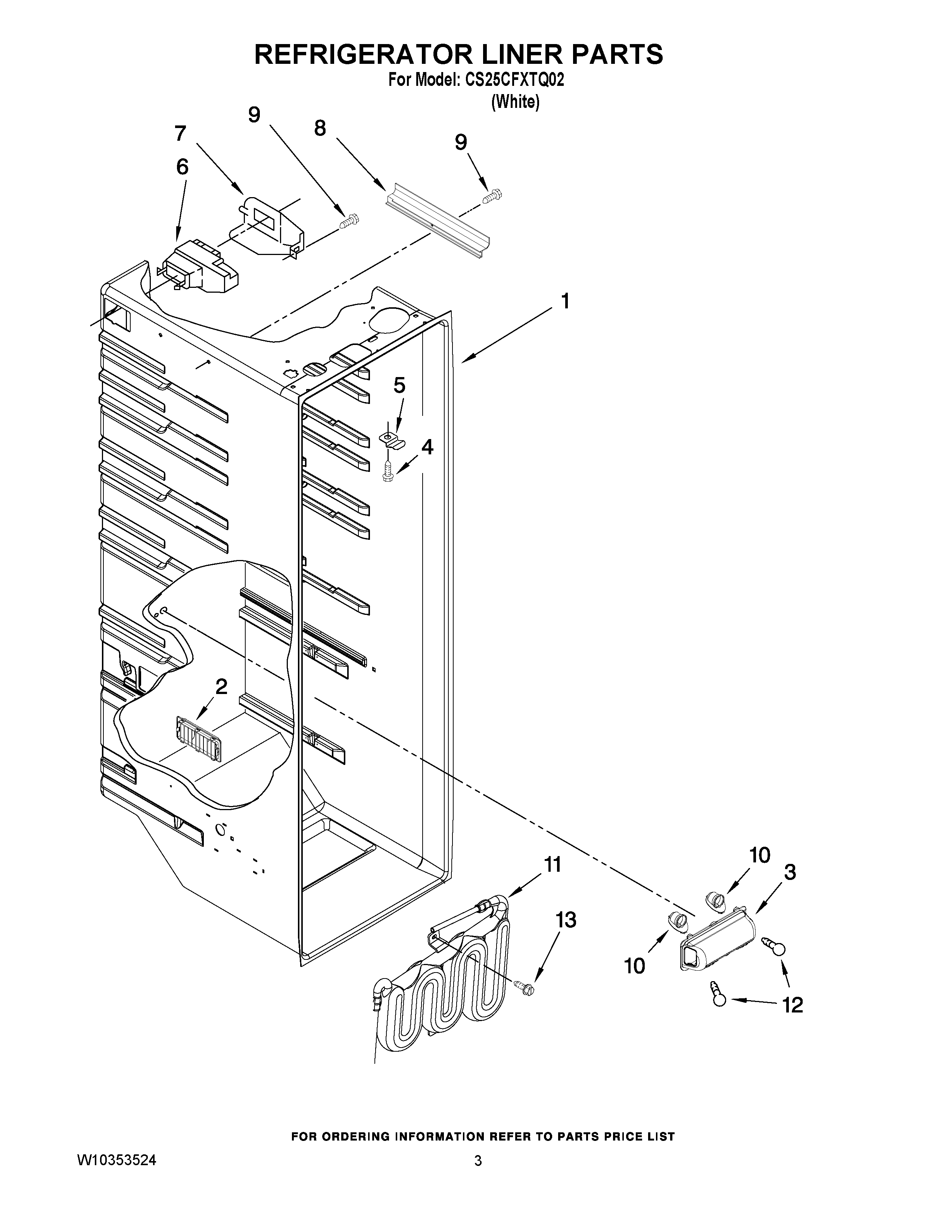

CS25CFXTQ02 02 – REFRIGERATOR LINER PARTSadmin2025-04-26T09:38:43+00:00CS25CFXTQ02 02 – REFRIGERATOR LINER PARTS ProductsPositionProduct1CABINET (NOT A SERVICEABLE PART)2Louver3W11239891 Whirlpool Refrigerator Light Lens52311612 Whirlpool Refrigerator Clip6WPW10151374 Whirlpool Refrigerator Diffuser72152019 Whirlpool Refrigerator Cover8W10252495 Whirlpool Refrigerator Wire Cover9W10759522 Whirlpool Screw104387478 Whirlpool Refrigerator Light Socket11RESERVOIR12RANGE ONLY 40W 120V APPL BULB13Screw (2)
