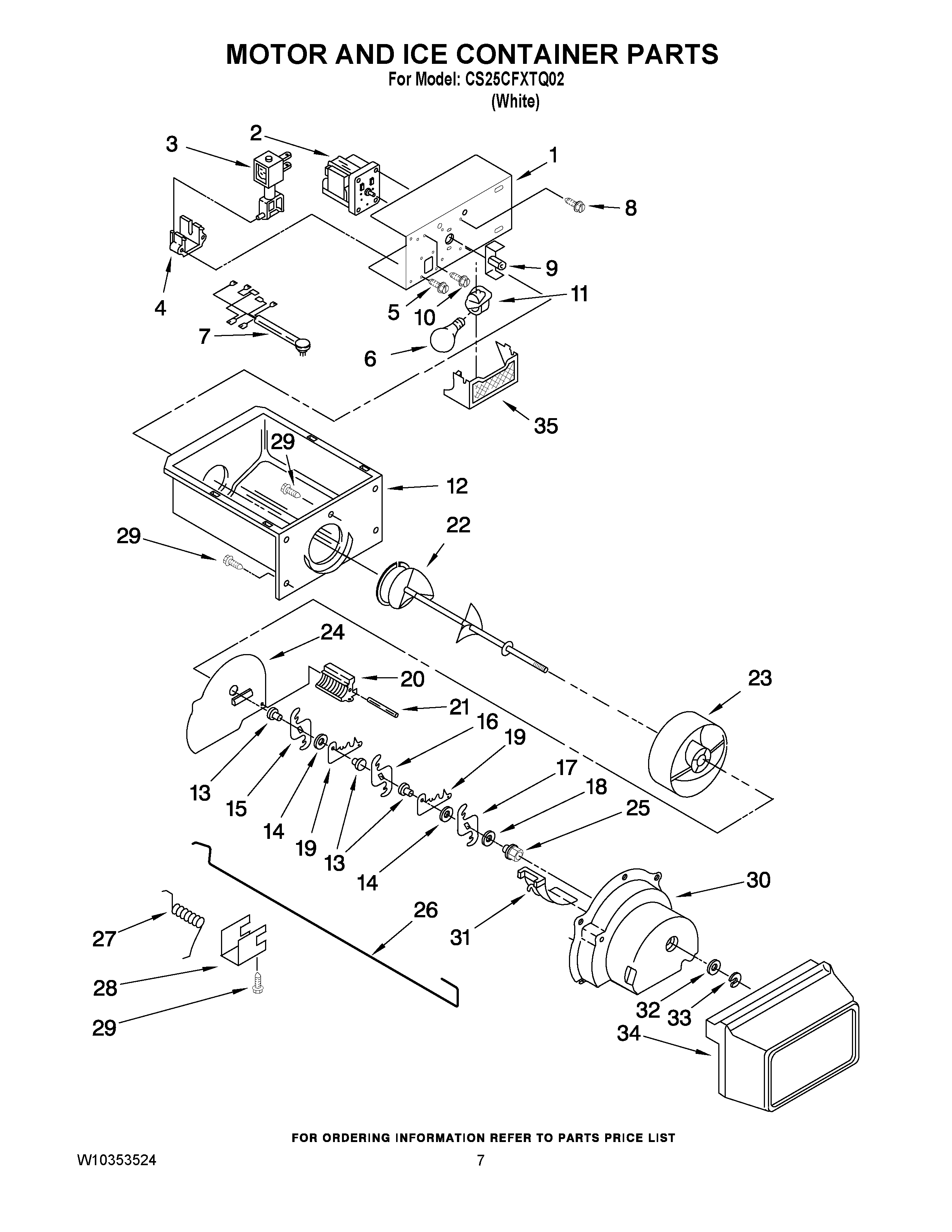

CS25CFXTQ02 05 – MOTOR AND ICE CONTAINER PARTS

Products

Position	Product
1	BRACKET, MOTOR
2	WPW10317991 Whirlpool Refrigerator Motor
3	WP2152713 Whirlpool Refrigerator Solenoid
4	W10850503 Whirlpool Refrigerator Guide
5	SCREW
6	RANGE ONLY 40W 120V APPL BULB
7	2311639 Whirlpool Refrigerator Dispenser Wiring Harness
8	WP489399 Whirlpool Refrigerator Screw
9	COUPLING AUGER MOTOR
10	WP489478 Whirlpool Refrigerator Screw
11	4387478 Whirlpool Refrigerator Light Socket
12	WPW10670845 Whirlpool Refrigerator Ice Container
13	WP1119005 Whirlpool Refrigerator Spacer
14	WP1119007 Whirlpool Refrigerator Spacer
15	W10278731 Whirlpool Refrigerator Blade
16	W10278732 Whirlpool Refrigerator Blade
17	W10278733 Whirlpool Refrigerator Blade
18	WP489235 Whirlpool Refrigerator Washer
19	BLADE, FIXED (2)
20	2157405 Whirlpool Refrigerator Blade Block
21	489229 Whirlpool Refrigerator Roll Pin
22	W10422851 Whirlpool Ice Maker Bucket Auger
23	4388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
24	W10852691 Whirlpool Refrigerator Baffle
25	WP1119018 Whirlpool Refrigerator Bearing
26	W11596045 Whirlpool Refrigerator Control Arm
27	1119020 Whirlpool Refrigerator Spring
28	1119021 Whirlpool Refrigerator Clip
29	WP488787 Whirlpool Refrigerator Screw
30	WPW10185018 Whirlpool Refrigerator Housing
31	WP1119017 Whirlpool Refrigerator Deflector
32	489234 Whirlpool Refrigerator Washer
33	WP489236 Whirlpool Refrigerator Ring
34	Front Cover, Ice Container
35	WP2171706 Whirlpool Refrigerator Light Lens
100	WPW10312300 Whirlpool Refrigerator Ice Container
