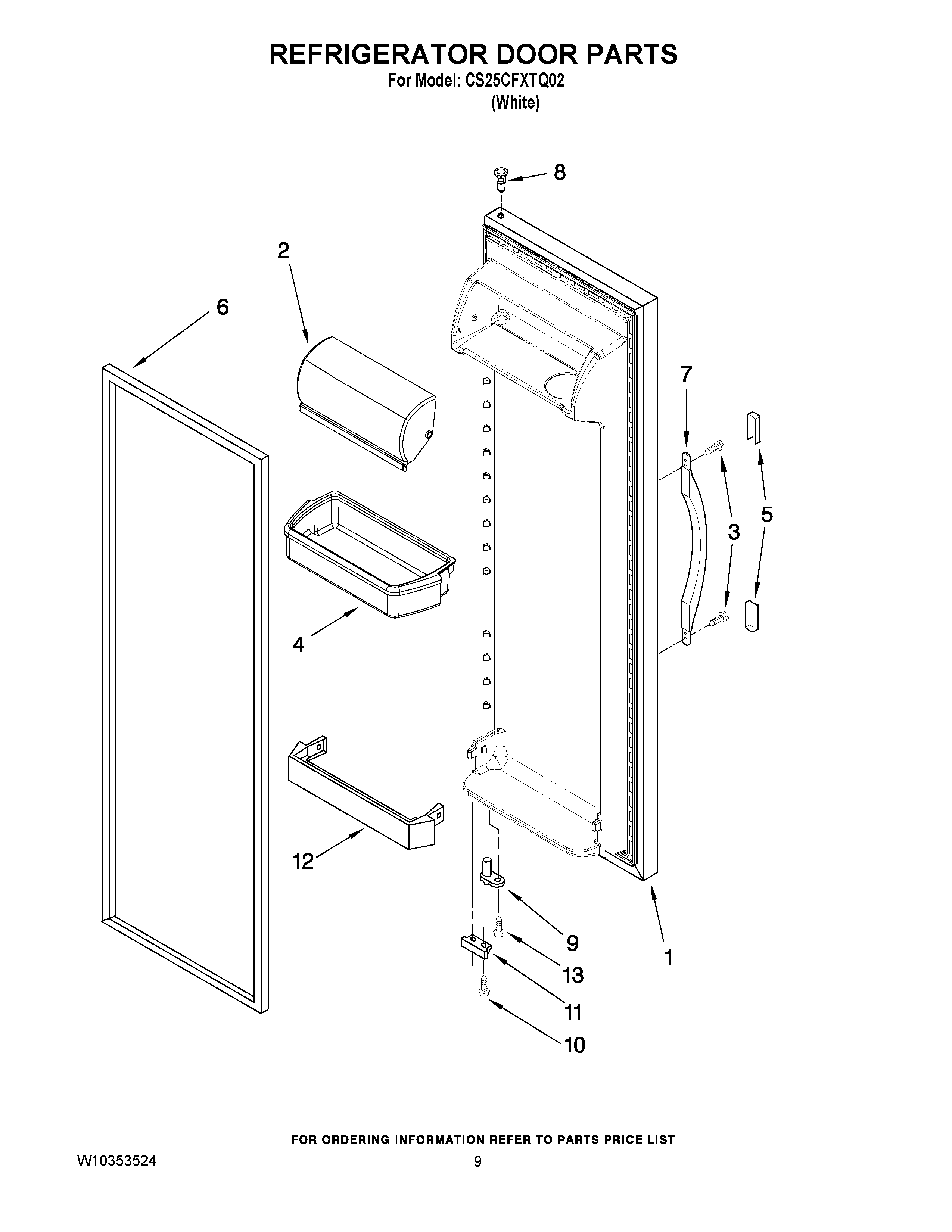

CS25CFXTQ02 06 – REFRIGERATOR DOOR PARTS

CS25CFXTQ02 06 – REFRIGERATOR DOOR PARTS

Written by

in

CS25CFXTQ02 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (White)
2WP2256101 Whirlpool Dairy Door
3WP489491 Whirlpool Refrigerator Screw
4WP2187172 Whirlpool Refrigerator Door Shelf Bin
5Trim, Handle (White)
62159075 Whirlpool Door Gasket Seal
7HANDLE (WHITE)
8WP2182181 Whirlpool Refrigerator Thimble
9WP2182179 Whirlpool Cam Closer
10WP489483 Whirlpool Screw
11BRACKET, DOOR STOP (SILVER)
12WP2309941 Whirlpool Refrigerator Door Bar Trim
13WP3400012 Whirlpool Refrigerator Screw
