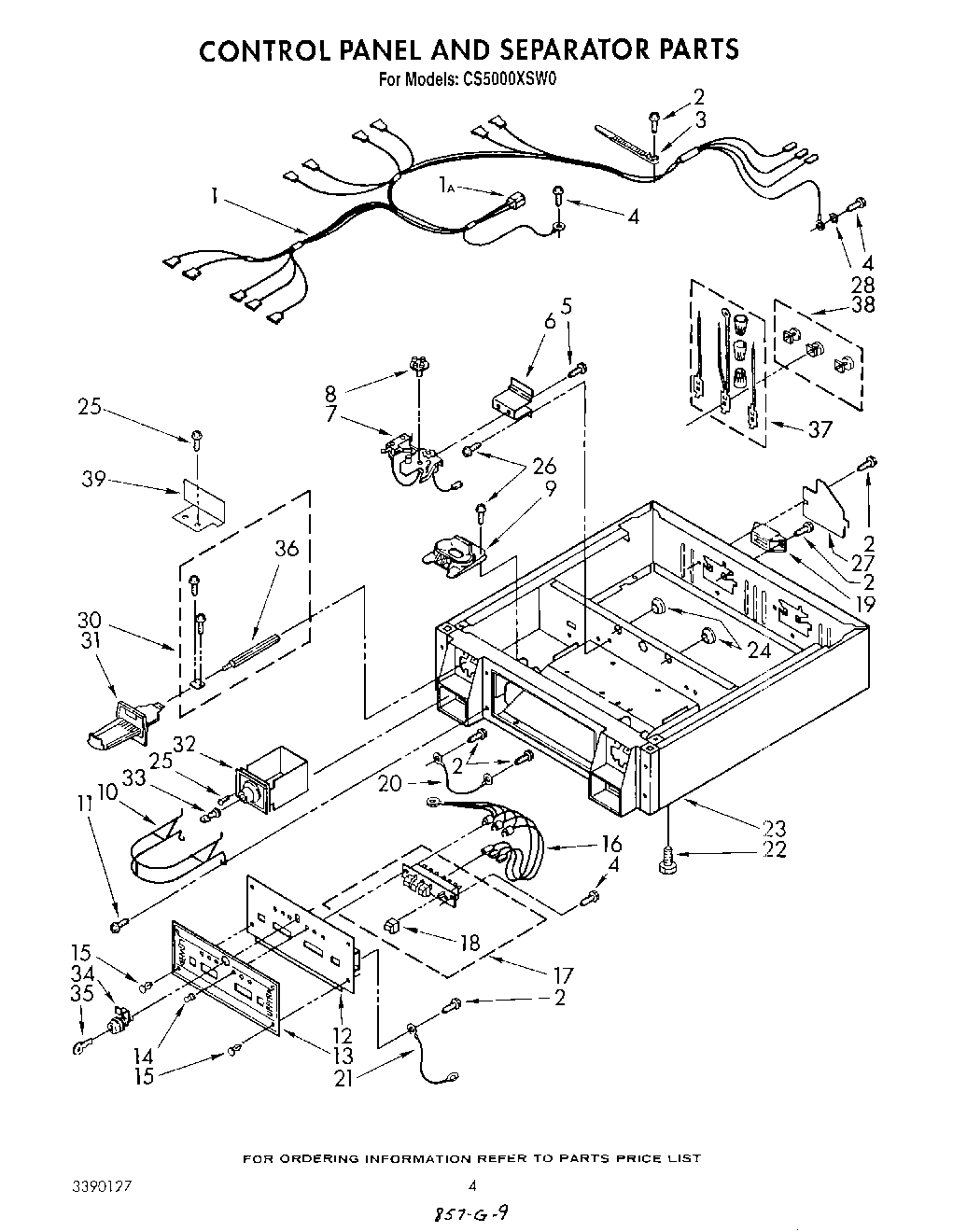

CS5000XSW0 03 – CONTROL PANEL AND SEPARATOR

Products

Position	Product
1	Harness, Wire (2)
1A	Receptacle (2)
2	WP308544 Whirlpool Screw
3	WPL 3389969
4	WP3351614 Whirlpool Screw
5	303776 Whirlpool Dishwasher Screw
6	3390115 Whirlpool Bracket Assembly
7	279737 Whirlpool Dryer Load Timer
8	WP343777 Whirlpool Cam
8	WP339855 Whirlpool Cam
8	WP3387974 Whirlpool Cam
9	Funnel, Coin (2)
10	Protector, Slide (2)
11	Screw, 10-32 x 1/2
12	Panel, Control
13	Insert, Decorative
14	Lens, Light (6)
15	Rivet
16	Indicator, Light (2)
17	SWITCH-PB
18	Button (4)
19	279320 Whirlpool Dryer Rear Terminal Block Kit
20	Strut
21	Wire, Ground
22	WPL 122007
23	Collar (Golen Wheat)
23	Collar (Platinum)
23	Collar (Toast)
23	Collar (Almond)
23	Collar (White)
24	Bushing, Snap (2)
25	WP356418 Whirlpool Screw
26	Screw (8)
27	W11736322 Whirlpool Cover Assembly
28	Retainer, Terminal (2)
29	WP965173 Whirlpool Dishwasher Screw
30	Slide Extension Bag Assembly
31	Slide Mechanism (When Ordering, Specify Number Of Coins And Denomination)
32	Money Box W/Lock Greenwald Abloy Illinios Duo Medeco Cap-Lock Rampart
33	Key, Money Box (When Ordering, Specify Vender of Money Box Lock)
34	Security Lock & Cam Assembly
35	WPL ARI21993A1
36	WPL ARI21994A2
37	279318 Whirlpool Terminal
38	279393 Whirlpool Terminal Block Screw and Nut Kit
39	3390424 Whirlpool Extension
