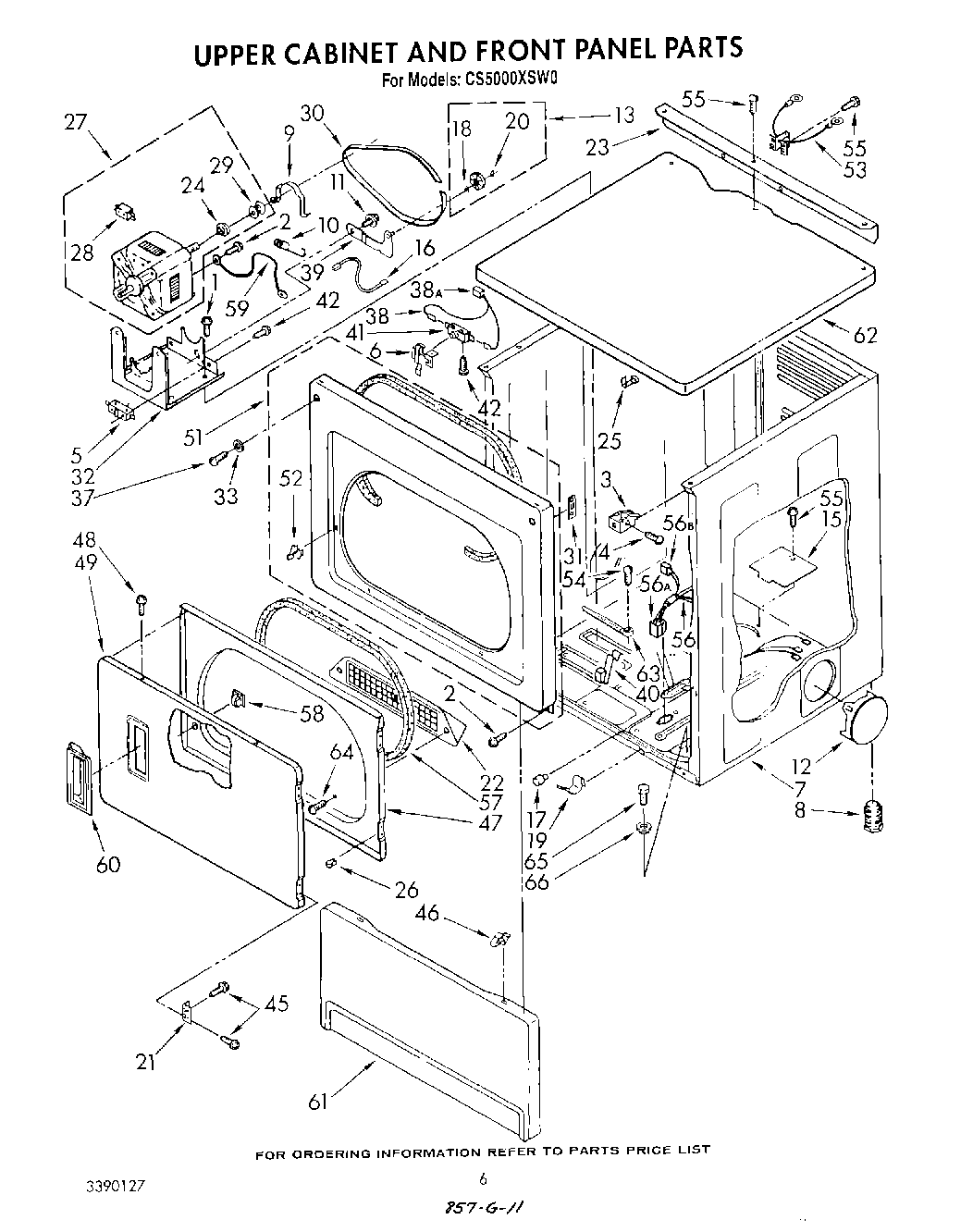

CS5000XSW0 04 – UPPER CABINET AND FRONT PANELadmin2025-04-26T09:35:26+00:00CS5000XSW0 04 – UPPER CABINET AND FRONT PANEL
Products
| Position | Product |
|---|
| 1 | SCREW |
| 2 | WPW10139210 Whirlpool Screw |
| 3 | 3391846 Whirlpool Clip |
| 4 | 681615 Whirlpool Screw |
| 5 | WP3391902 Whirlpool Lid Switch |
| 6 | WP691581 Whirlpool Actuator |
| 7 | Cabinet (Upper) (Almond) |
| 7 | Cabinet (Upper) (Golden Wheat) |
| 7 | Cabinet (Upper) (Toast) |
| 7 | Cabinet (Upper) (White) |
| 7 | Cabinet (Upper) (Platinum) |
| 8 | WP689172 Whirlpool Leveling Feet |
| 9 | WP660658 Whirlpool Clamp |
| 10 | WPW10446781 Whirlpool Spring |
| 11 | WP3389420 Whirlpool Screw |
| 12 | Plug, Multivent (Golen Wheat) |
| 12 | WPW10404617 Whirlpool Plug Assembly |
| 12 | W10470674 Whirlpool Dryer Side Vent Exhaust Kit |
| 13 | 279640 Whirlpool Dryer Idler Pulley Kit |
| 15 | WPW10354249 Whirlpool Cover |
| 16 | Wire, Belt Switch |
| 17 | 693152 Whirlpool Bumper |
| 18 | WPW10121334 Whirlpool Washer |
| 19 | WP297092 Whirlpool Clip |
| 20 | WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller |
| 21 | W11175815 Whirlpool Hinge |
| 22 | Grill |
| 23 | Bracket, Angle (Platinum) |
| 23 | Bracket, Angle (Toast) |
| 23 | Bracket, Angle (Almond) |
| 23 | Bracket, Angle (Golden Wheat) |
| 23 | Bracket, Angle (White) |
| 24 | WP3393657 Whirlpool Belt Retainer |
| 25 | Clip |
| 26 | Nut, ``U`` (4) |
| 27 | 279787 Whirlpool Dryer Drive Motor |
| 28 | 279827 Whirlpool Dryer Drive Motor |
| 29 | W10837625 Whirlpool Dryer Motor Pulley |
| 30 | W11667280 Whirlpool Belt Assembly |
| 31 | WP3390902 Whirlpool Clip |
| 32 | WP3387118 Whirlpool Base Assembly |
| 33 | Washer |
| 37 | WP308685 Whirlpool Microwave Screw |
| 38 | Harness, Door Switch |
| 38 | WP717253 Whirlpool Dishwasher Connector |
| 39 | W10837240 Whirlpool Dryer Idler Pulley |
| 40 | Clip, Lint Duct |
| 41 | W10820036 Whirlpool Door Switch Kit |
| 42 | Screw, 6-20 x 7/8 |
| 44 | WP3387242 Whirlpool Seal |
| 45 | WP488627 Whirlpool Refrigerator Screw |
| 46 | WP3388229 Whirlpool Dryer Spring Clip |
| 47 | Door, Rear |
| 48 | WP694091 Whirlpool Screw |
| 49 | Door, Front (Toast) |
| 49 | Door, Front (Platinum) |
| 49 | Door, Front (Go |
| 49 | Door, Front (Almond) |
| 49 | W11663440 Whirlpool Door |
| 51 | WPL 3391863 |
| 51 | WPL 3391862 |
| 51 | WPL 3391860 |
| 51 | WPL 3391861 |
| 51 | WPL 3391864 |
| 53 | Cable Assembly |
| 54 | WP308544 Whirlpool Screw |
| 55 | WP488729 Whirlpool Refrigerator Door Screw |
| 56A | Plug, Multi- Terminal 56B |
| 56 | Harness (Upper) |
| 56B | Receptacle, Latching (2-Way) (Uses Terminal 94614) |
| 57 | W10823582 Whirlpool Door Seal |
| 58 | 279570 Whirlpool Dryer Door Latch Kit |
| 59 | WPL 3387376 |
| 60 | WPL 3389524 |
| 60 | WPL 3389526 |
| 60 | 3389522 Whirlpool Handle |
| 60 | WPL 3389523 |
| 60 | WPL 3389525 |
| 61 | WPL 697219 |
| 61 | WPL 697216 |
| 61 | WPL 697218 |
| 61 | WPL 697217 |
| 61 | WP3406797 Whirlpool Toe Panel |
| 62 | WPL 3389352 |
| 62 | WPL 3389354 |
| 62 | WPL 3389353 |
| 62 | 3389351 Whirlpool Top |
| 62 | WPL 3389355 |
| 63 | WPL 3389969 |
| 64 | Screw |
| 65 | WPL 122007 |
| 66 | BUSHING |
