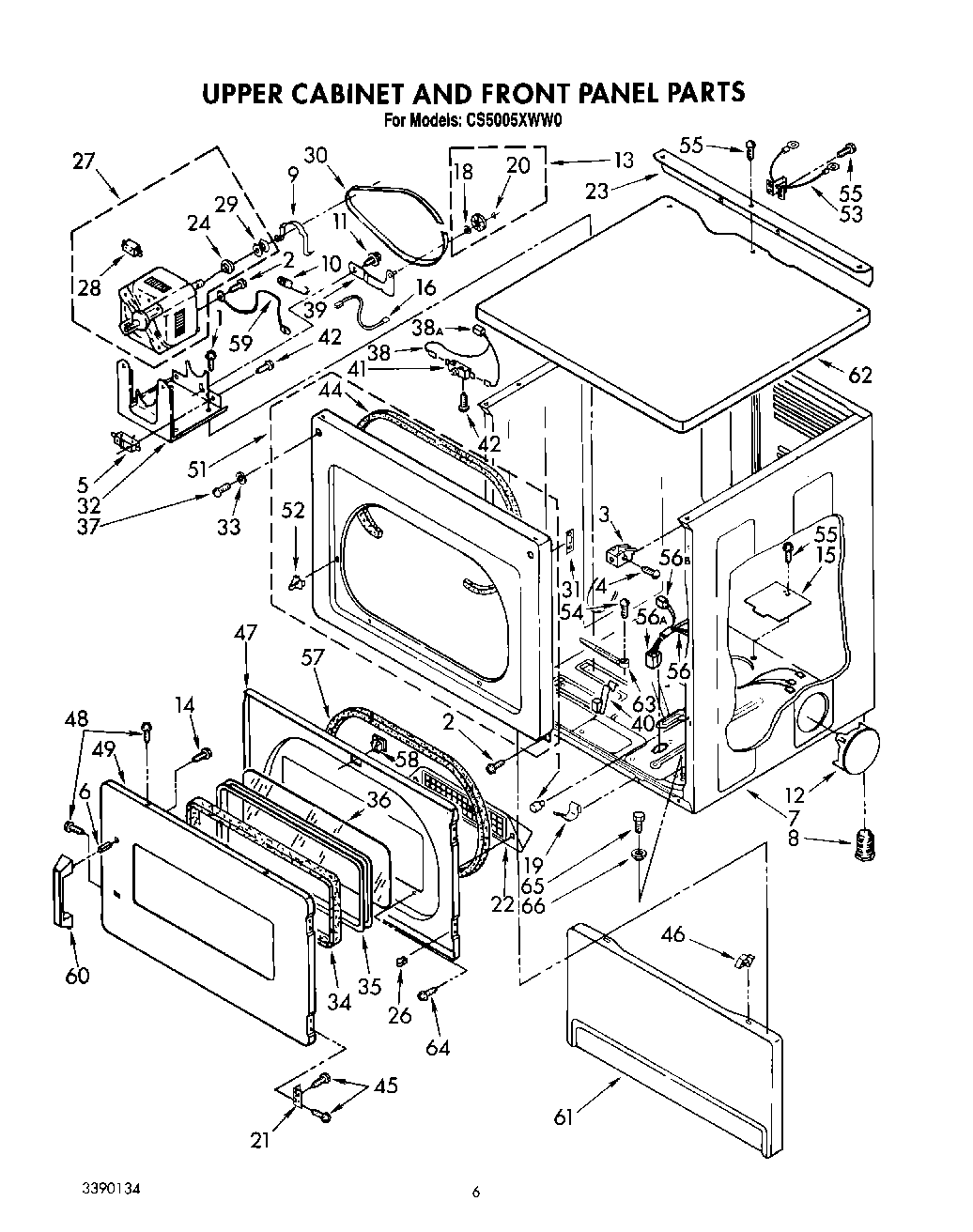

CS5005XWW0 03 – UPPER CABINET AND FRONT PANEL

Products

PositionProduct
2WPW10139210 Whirlpool Screw
33391846 Whirlpool Clip
4681615 Whirlpool Screw
6Fastener, Tubular
7Cabinet (Upper) (White)
7Cabinet (Upper) (Almond)
8WP689172 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
12W10470674 Whirlpool Dryer Side Vent Exhaust Kit
13279640 Whirlpool Dryer Idler Pulley Kit
14Screw, 8-18 x 3/4 (Door Handle)
15WPW10354249 Whirlpool Cover
16Wire, Belt Switch
17693152 Whirlpool Bumper
18WPW10121334 Whirlpool Washer
19WP297092 Whirlpool Clip
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21W11175815 Whirlpool Hinge
22Grill
23Bracket, Angle
24WP3393657 Whirlpool Belt Retainer
26Nut, “U“ (4)
27279787 Whirlpool Dryer Drive Motor
28279827 Whirlpool Dryer Drive Motor
29WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31WP3390902 Whirlpool Clip
32WP3387118 Whirlpool Base Assembly
33Washer
34Gasket, Window
353392914 Whirlpool Window Frame
36Window (2)
37WP308685 Whirlpool Microwave Screw
38Harness, Door Switch
38AWP717253 Whirlpool Dishwasher Connector
39W10837240 Whirlpool Dryer Idler Pulley
40Clip, Lint Duct
41WP3391902 Whirlpool Lid Switch
42WP3395530 Whirlpool Screw
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46WP3388229 Whirlpool Dryer Spring Clip
47W10244331 Whirlpool Rear Door
48WP694091 Whirlpool Screw
49W10322548 Whirlpool Door Assembly
49Door, Front (Almond)
51279723 Whirlpool Panel Assembly
51Front Panel
53Cable Assembly
54WP308544 Whirlpool Screw
55WP488729 Whirlpool Refrigerator Door Screw
56Harness (Upper)
56APlug, Multi- Terminal 56B
56BReceptacle, Latching (2-Way) (Uses Terminal 94614)
57WP3390735 Whirlpool Door Seal
58279570 Whirlpool Dryer Door Latch Kit
59WPL 3387376
60WP3392906 Whirlpool Door Handle
60WPL 3392907
61WPL 697216
61WP3406797 Whirlpool Toe Panel
623389351 Whirlpool Top
62WPL 3389352
63WPL 3389969
64Screw
65WPL 122007
66BUSHING
