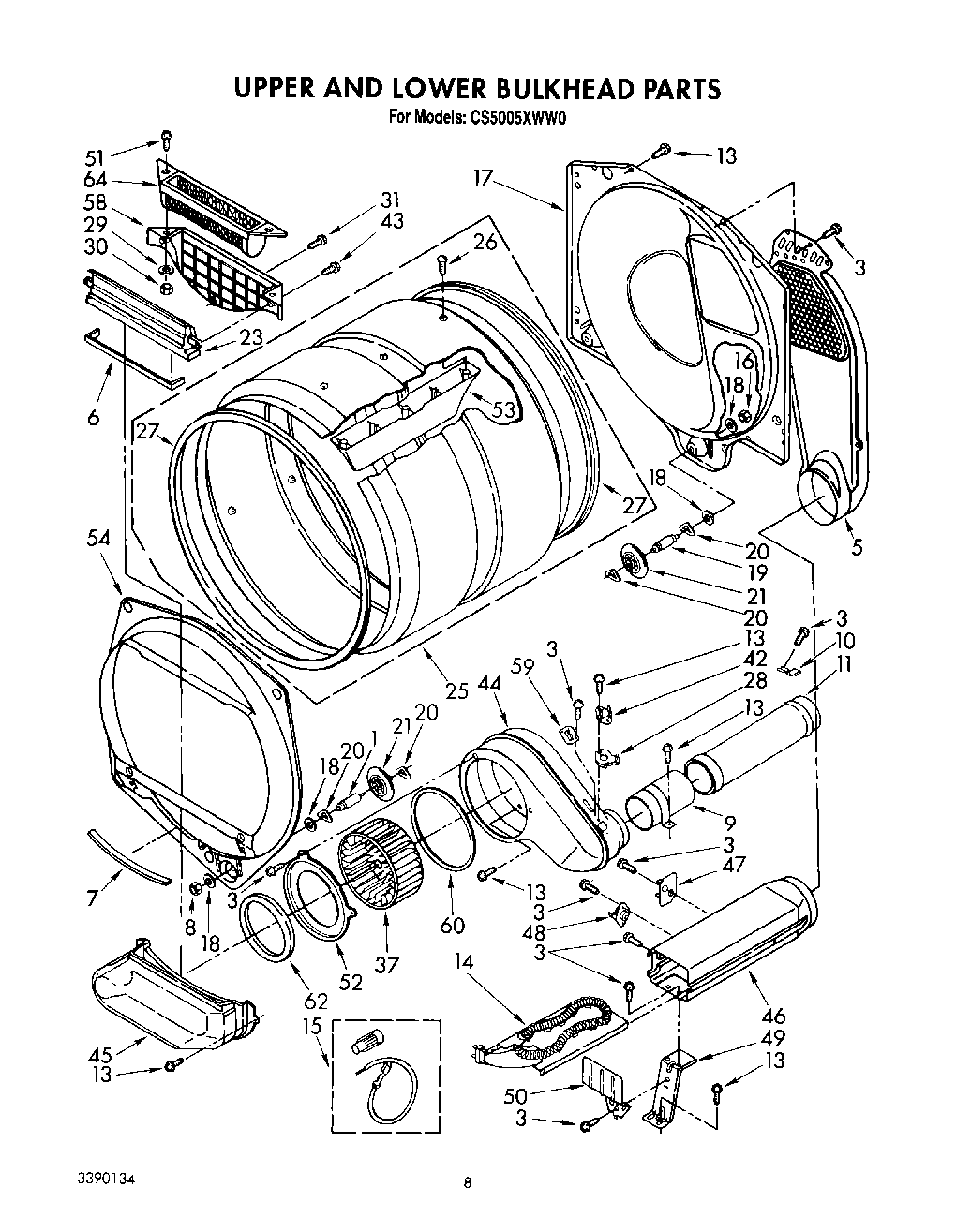

CS5005XWW0 04 – UPPER AND LOWER BULKHEAD, LIT/OPTIONAL

CS5005XWW0 04 – UPPER AND LOWER BULKHEAD, LIT/OPTIONAL

Written by

in

CS5005XWW0 04 – UPPER AND LOWER BULKHEAD, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
WPL LIT3390134
WPL LIT3390148
Golden Harvest
72113 Whirlpool Touch-Up Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
350938 Whirlpool Spray Gun
Almond (Uncut)
Leveler (Thinner)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
1SHAFT
3WPW10139210 Whirlpool Screw
5WP3387911 Whirlpool Air Duct
6WP697813 Whirlpool Seal
8WP358160 Whirlpool Nut
9WP8563747 Whirlpool Exhaust Pipe
10Clip, Multivent
11Extension, Exhaust Pipe
13WP488729 Whirlpool Refrigerator Door Screw
14W10864898 Whirlpool Dryer Heating Element
15279457 Whirlpool Dryer Heating Element Wide Spade Connection
16Nut, 3/8-16 (L.H.)
17W11299300 Whirlpool Bulkhead Assembly
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
23Housing, Outlet
25W10545924 Whirlpool Drum Assembly
26Screw
27280114 Whirlpool Dryer Drum Seal
28Heater, Thermostat
29Washer, No. 10
30Nut, Hex
37WP697772 Whirlpool Dryer Blower Wheel
42WP694674 Whirlpool Cycling Thermostat
43WP3387230 Whirlpool Screw
44WP8544363 Whirlpool Housing
45Lint Duct Assembly
46W10802681 Whirlpool Box Assembly
47279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
48THRMST-FIX
49Bracket, Heater
50Shield, Heat
51WP179051 Whirlpool Screw
52279780 Whirlpool Plate Cover
53WPW10113136 Whirlpool Drum Baffle
54WP697557 Whirlpool Bulkhead Assembly
58Cover, Lint Screen
59WP3390719 Whirlpool Dryer Thermal Fuse
60WP697770 Whirlpool Blower Cover Plate Seal
62WP8566209 Whirlpool Seal
64Screen, Lint
