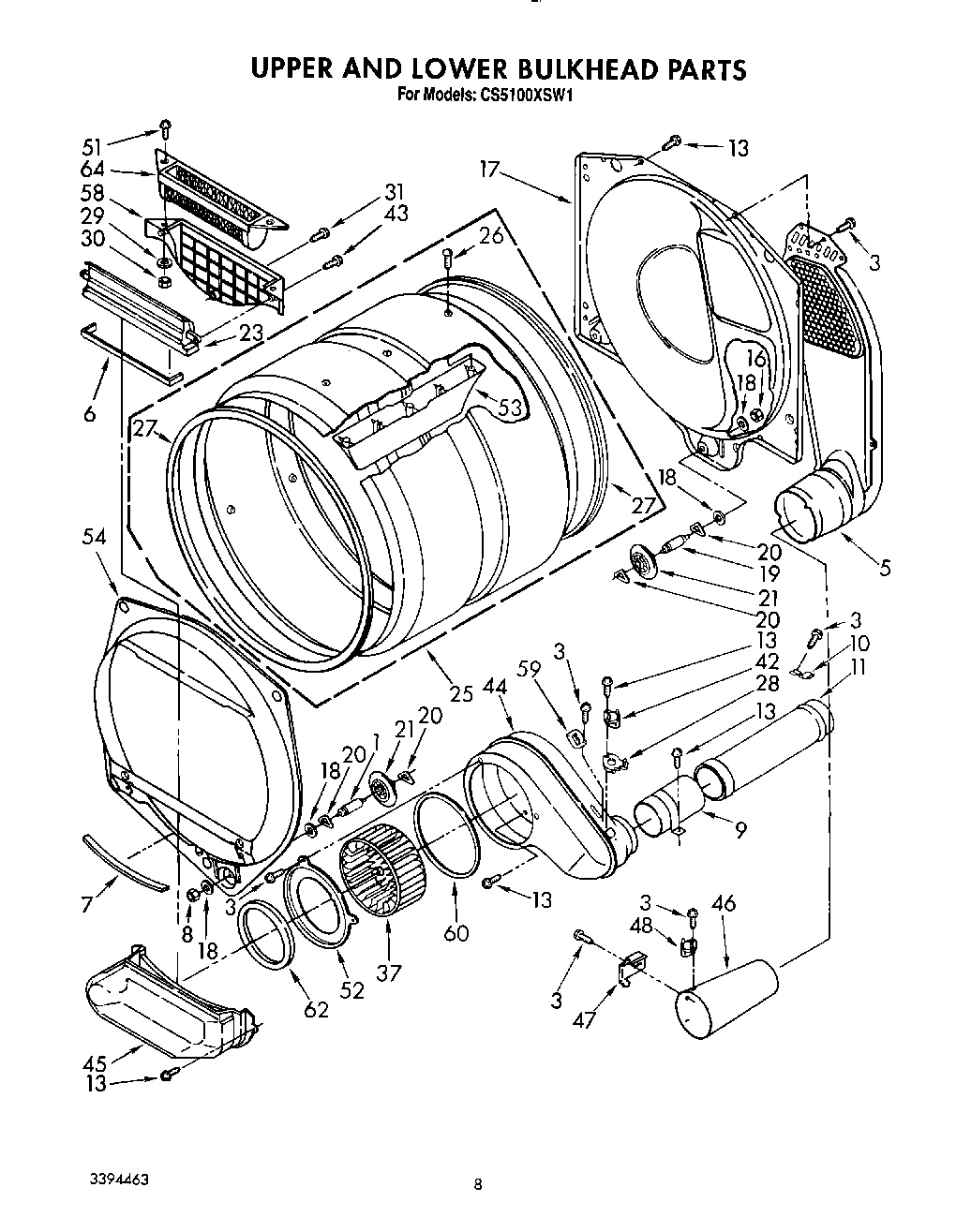

CS5100XSW1 05 – UPPER AND LOWER BULKHEAD, LIT/OPTIONALadmin2025-04-26T09:35:31+00:00CS5100XSW1 05 – UPPER AND LOWER BULKHEAD, LIT/OPTIONAL
Products
| Position | Product |
|---|
| 350930 Whirlpool White Spray Paint |
| WPL LIT3395314 |
| Almond (Uncut) |
| Leveler (Thinner) |
| WP72107 Whirlpool Touchup |
| 799344 Whirlpool Refrigerator Paint |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| 350956 Whirlpool Spray Assembly |
| 350938 Whirlpool Spray Gun |
| List |
| 1 | SHAFT |
| 3 | WPW10139210 Whirlpool Screw |
| 5 | Air Duct Assembly |
| 6 | WP697813 Whirlpool Seal |
| 8 | WP358160 Whirlpool Nut |
| 9 | WP8563747 Whirlpool Exhaust Pipe |
| 10 | Clip, Multivent |
| 11 | Extension, Exhaust Pipe |
| 13 | WP488729 Whirlpool Refrigerator Door Screw |
| 16 | Nut, 3/8-16 (L.H.) |
| 17 | W11299300 Whirlpool Bulkhead Assembly |
| 18 | W11236646 Whirlpool Washer Assembly |
| 19 | SHAFT |
| 20 | WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller |
| 21 | 349241T Whirlpool Dryer Drum Support Roller Kit |
| 23 | Housing, Outlet |
| 25 | W10545924 Whirlpool Drum Assembly |
| 26 | Screw |
| 27 | 280114 Whirlpool Dryer Drum Seal |
| 28 | Heater, Thermostat |
| 29 | Washer, No. 10 |
| 30 | Nut, Hex |
| 37 | WP697772 Whirlpool Dryer Blower Wheel |
| 42 | WP694674 Whirlpool Cycling Thermostat |
| 43 | WP3387230 Whirlpool Screw |
| 44 | WP8544363 Whirlpool Housing |
| 45 | Lint Duct Assembly |
| 46 | Funnel, Burner |
| 47 | WP338906 Whirlpool Dryer Gas Sensor |
| 48 | THRMST-FIX |
| 51 | WP179051 Whirlpool Screw |
| 52 | 279780 Whirlpool Plate Cover |
| 53 | WPW10113136 Whirlpool Drum Baffle |
| 54 | WP697557 Whirlpool Bulkhead Assembly |
| 58 | Cover, Lint Screen |
| 59 | WP3390719 Whirlpool Dryer Thermal Fuse |
| 60 | WP697770 Whirlpool Blower Cover Plate Seal |
| 62 | WP8566209 Whirlpool Seal |
| 64 | Screen, Lint |
