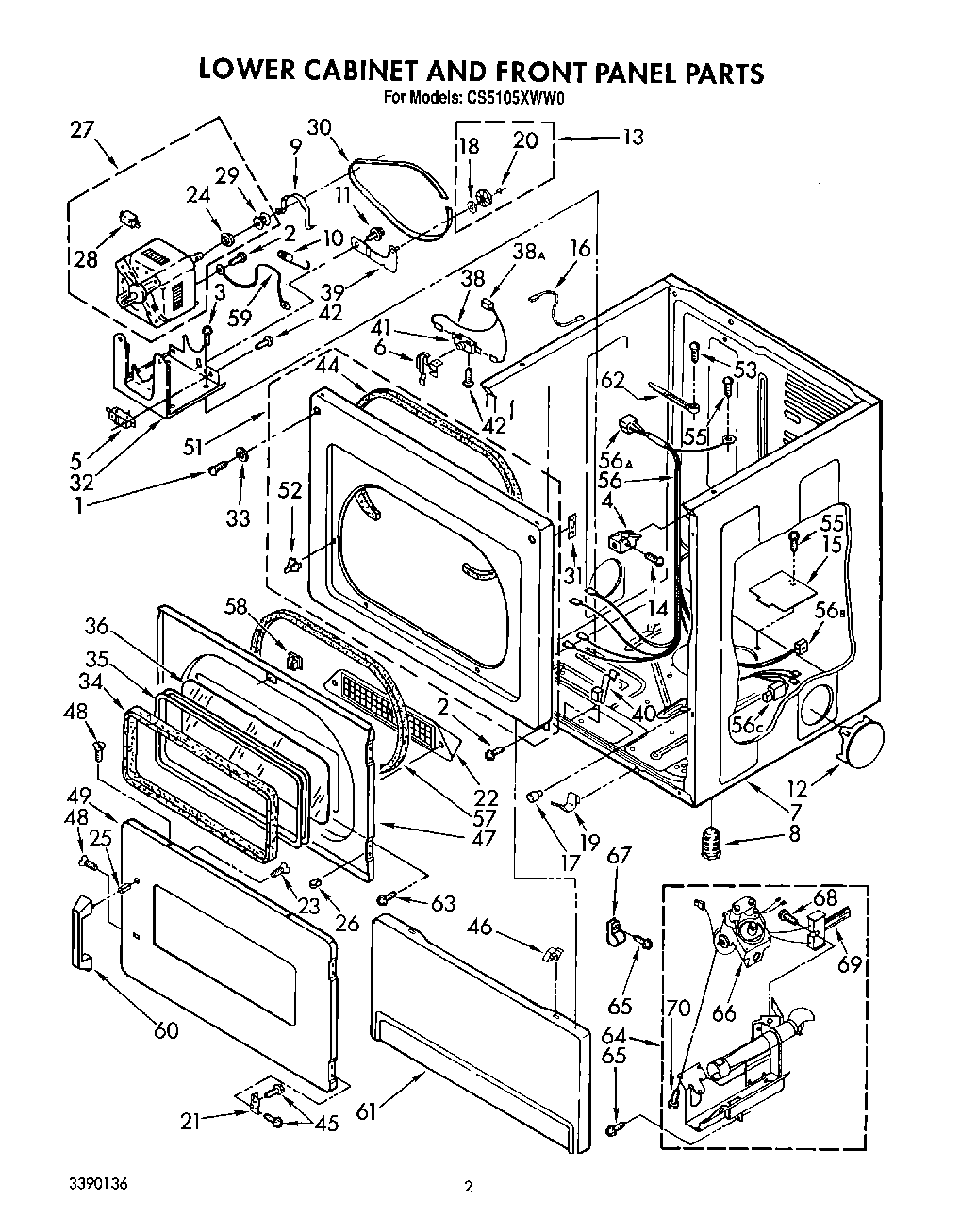

CS5105XWW0 02 – LOWER CABINET AND FRONT PANEL

CS5105XWW0 02 – LOWER CABINET AND FRONT PANEL

Written by

in

CS5105XWW0 02 – LOWER CABINET AND FRONT PANEL

Products

PositionProduct
1WP308685 Whirlpool Microwave Screw
2WPW10139210 Whirlpool Screw
3WP489069 Whirlpool Compactor Screw
43391846 Whirlpool Clip
6WP691581 Whirlpool Actuator
7Cabinet, Lower (White)
7Cabinet, Lower (Almond)
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12W10470674 Whirlpool Dryer Side Vent Exhaust Kit
12WPW10404617 Whirlpool Plug Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
14681615 Whirlpool Screw
15WPW10354249 Whirlpool Cover
16Wire, Belt Switch
17693152 Whirlpool Bumper
18WPW10121334 Whirlpool Washer
19WP297092 Whirlpool Clip
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21W11175815 Whirlpool Hinge
22Grill
23Screw, 8-18 x 3/4 (Door Handle)
24WP3393657 Whirlpool Belt Retainer
25Fastener, Tubular
26Nut, “U“ (4)
27279787 Whirlpool Dryer Drive Motor
28279827 Whirlpool Dryer Drive Motor
29WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31WP3390902 Whirlpool Clip
32WP3387118 Whirlpool Base Assembly
33Washer
34Gasket, Window
353392914 Whirlpool Window Frame
36Window (2)
38Harness, Door Switch
38WP717253 Whirlpool Dishwasher Connector
39W10837240 Whirlpool Dryer Idler Pulley
40Clip, Lint Duct
41WP3391902 Whirlpool Lid Switch
42WP3395530 Whirlpool Screw
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46WP3388229 Whirlpool Dryer Spring Clip
47W10244331 Whirlpool Rear Door
48WP694091 Whirlpool Screw
49W10322548 Whirlpool Door Assembly
49Door, Front (Almond)
51279723 Whirlpool Panel Assembly
51Front Panel
53WP308544 Whirlpool Screw
56Receptacle, Latching (2-Way) (Uses Terminal 94614)
56Receptacle, 3-Way Terminal (Use W/94614)
56Harness (Lower)
56Block, Disconnect (12-Way) (Timer) (Use Term. 94613)
57WP3390735 Whirlpool Door Seal
58279570 Whirlpool Dryer Door Latch Kit
59WPL 3387376
60WPL 3392907
60WP3392906 Whirlpool Door Handle
61WPL 697216
61WP3406797 Whirlpool Toe Panel
62WPL 3389969
63Screw
64WPL 3387617
65WP488729 Whirlpool Refrigerator Door Screw
66279923 Whirlpool Gas Valve
673387561 Whirlpool Clamp
68WPW10366705 Whirlpool Screw
69279311 Whirlpool Dryer Flat Igniter with Bracket
70WP693995 Whirlpool Screw
