CS5105XWW0 06 – 3387617 BURNER ASSEMBLY
Written by
in

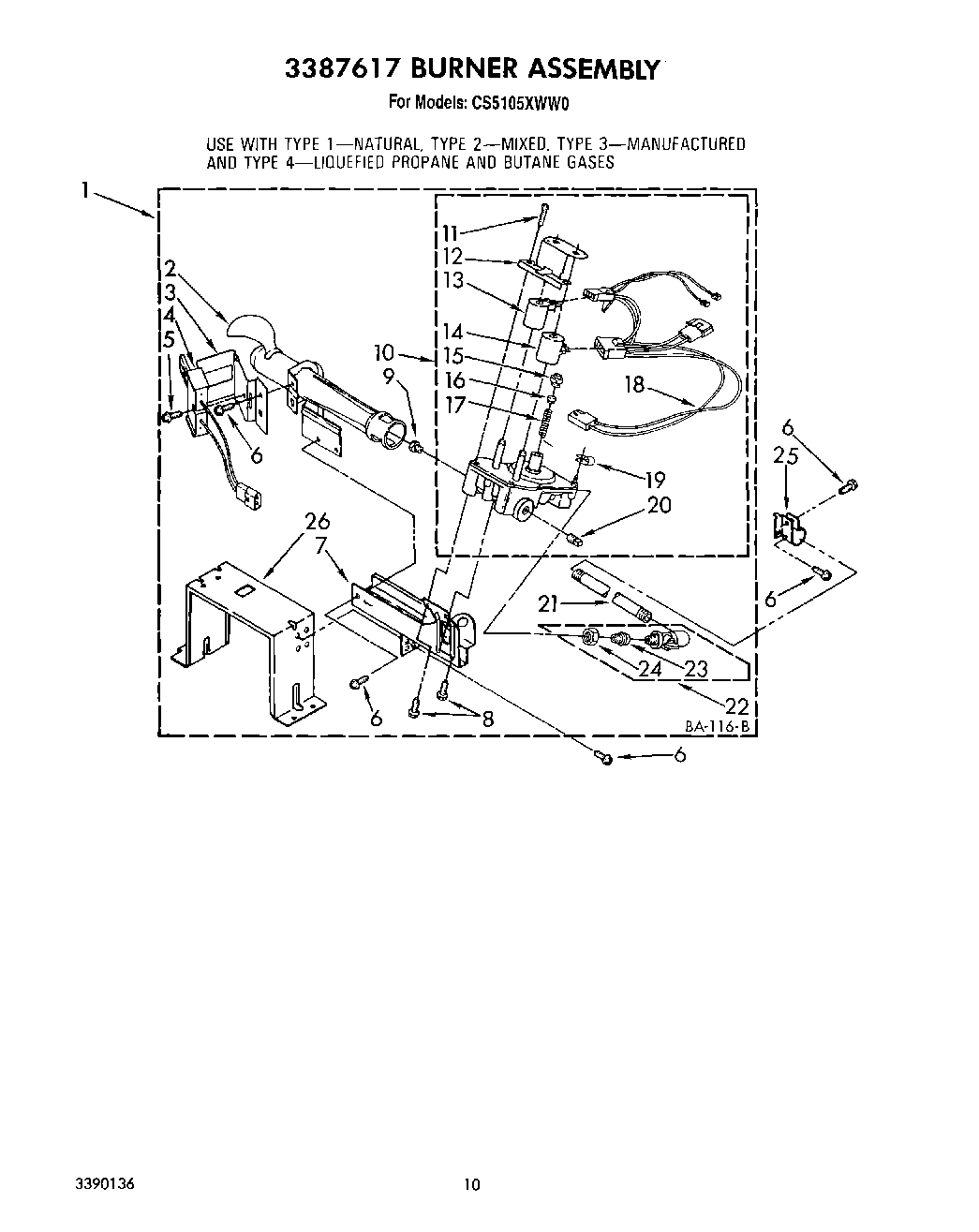

CS5105XWW0 06 – 3387617 BURNER ASSEMBLY
Products
Position
Product
1
WPL 3387617
2
WP693140 Whirlpool Burner
3
WP694298 Whirlpool Bracket
4
279311 Whirlpool Dryer Flat Igniter with Bracket
5
WPW10366705 Whirlpool Screw
6
SCREW
7
Base, Burner
8
WP693995 Whirlpool Screw
9
WP234826 Whirlpool Gas Orifice
9
Orifice, Burner (Type 2)
9
Orifice, Burner (Type 3)
9
WP234868 Whirlpool Gas Orifice
9
WP229742 Whirlpool Gas Orifice
10
279923 Whirlpool Gas Valve
11
694421 Whirlpool Screw Assembly
12
694538 Whirlpool Bracket
14
279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15
WP694424 Whirlpool Limiter
16
WP694423 Whirlpool Regulator
17
WP694422 Whirlpool Spring
18
WP3401850 Whirlpool Wire Harness
19
WPL 694510
20
W10295523 Whirlpool Plug
21
Pipe, Gas Supply
22
697441 Whirlpool Valve
23
3393767 Whirlpool Pipe
24
Nut, Compression
25
3387561 Whirlpool Clamp
26
Kit, Conversion Type 1 To Type 3 (MFD)
26
49572A Whirlpool Dryer Propane Gas Conversion Kit
26
Bracket, Support
←
