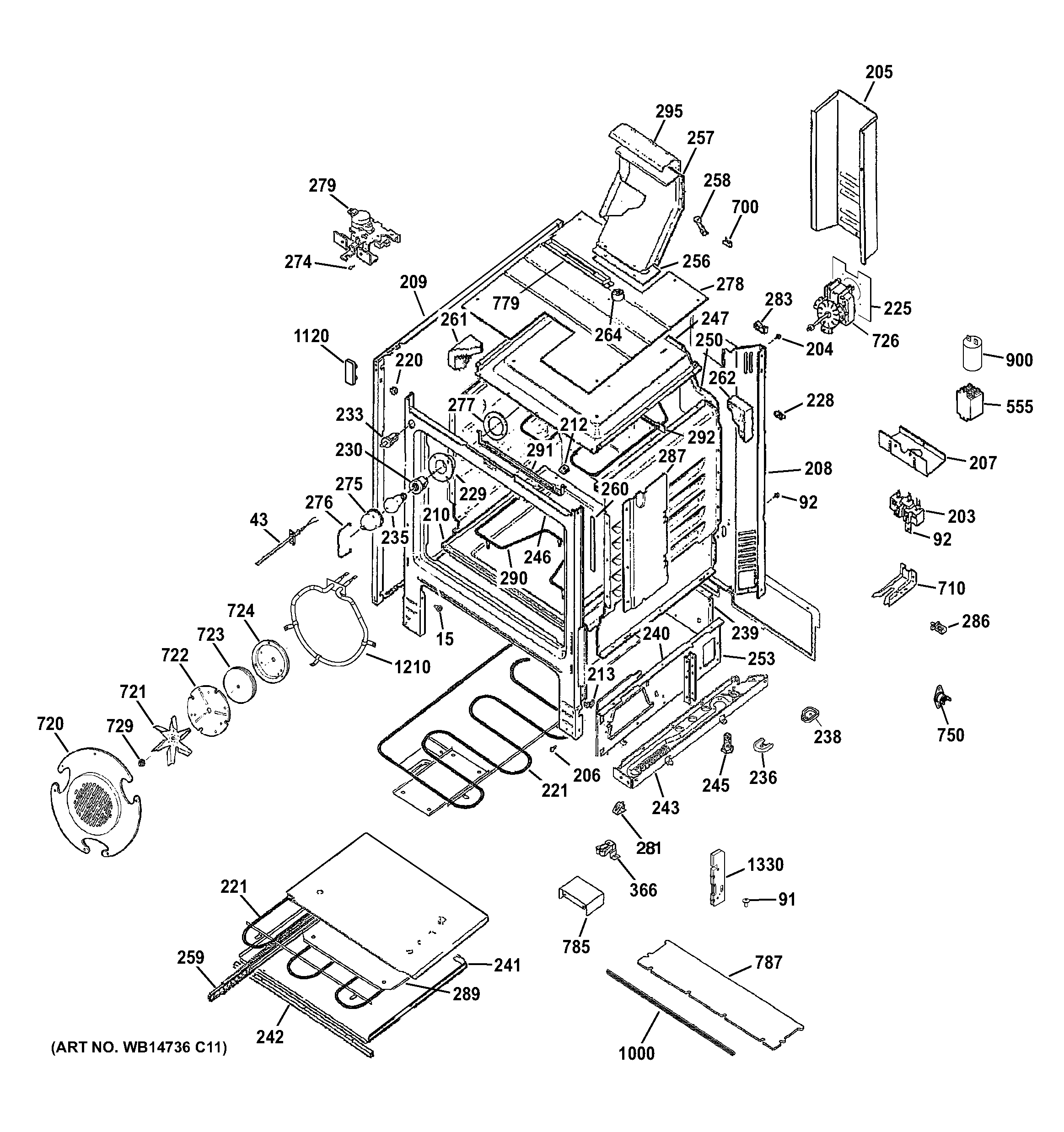

CS975SD1SS BODY PARTS

Products

PositionProduct
15GEN WB02K10375
43SENSOR ASM
91WB01T10008 GE Oven Screw 10-32
92PLATE GROUND
92WB1X1261 GE Oven Screw
204WB1K84 GE Oven Screw and
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
205WB34K10099 GE Oven Cover Motor
207WB02K10052 GE Oven Mounting Bracket
208GEN WB63K10173
210WB35K10209 GE Oven Bottom
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
221WB44K10015 GE Oven Bottom Heating Element
225WB35K10039 GE Motor Insulation
228GEN WB02X7066
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
233WB24K10068 GE Oven Plunger Switch
235RANGE ONLY 40W 120V APPL BULB
236WB02K10104 GE Base Spacer
238WB02K10270 GE Spacer Base
239PANEL REAR BROIL
240WB63K3 GE Oven Panel Side Broil
240GEN WB63K0002
241WB63K10060 GE Rack Bottom Panel
242GEN WB63K0005
243SUPPORT BASE LEFT
243WB63K10256 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
246WB63K10257 GE Range Frame
247WB53K10017 GE Top Panel
250GEN WB63K10254
253WB2K4 GE Cover Accessory Spring
256WB35K10019 GE Vent Gasket
257WB38K10017 GE Vent Assembly
258GEN WB02K10253
259WB39K10021 GE Oven Left Drawer Slide Assembly
259WB39K10020 GE Oven Right Drawer Slide Assembly
260WB32K2 GE Oven Gasket Seal
261WB35K10143 GE Oven Insulation Wrap
262WB35K10168 GE Oven Back Insulation
264WB35K10028 GE Oven Catalyst Support
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
278GEN WB53K10030
279GEN WB02K10391
283WB02X21679 GE Oven Wire Clip
286WB02K10068 GE Wire Clip
287GEN WB34K0031
287WB34K30 GE Radiation Guard
289WB49K10011 GE Bottom Deflector
290WB30X46987 GE Bake Element
291WB02K10028 GE Oven Broil Support
292WB30X46986 GE Broil Element
295WB35K10099 GE Vent Insulation
366WB02K10110 GE Oven Catch
555WB18T10352 GE Oven Relay
700RETAINER-INSULATION
710GEN WB02K10386
720WB34K10142 GE Fan Cover Assembly
721WB2X8351 GE Oven Blade Fan
722WB34K10038 GE Oven Fan Cover Back
723WB35K10013 GE Fan Insulation
724WB02K10170 GE Oven Fan Support
726WB26K10015 GE Oven PSC Convection Motor
750WB24K10046 GE Oven Limit Switch Bimetal
779GEN WB38K10004
785WB34K10128 GE Heating Element Cover
787GEN WB35K10055
900WB02K10172 GE Oven Capacitor Holder
900WB08K10009 GE Oven Motor Capacitor
1120WB02K10171 GE Oven Bumper
1210WB44X10051 GE Oven Convection Element
1330WB10K10029 GE Oven Receiver Hinge
