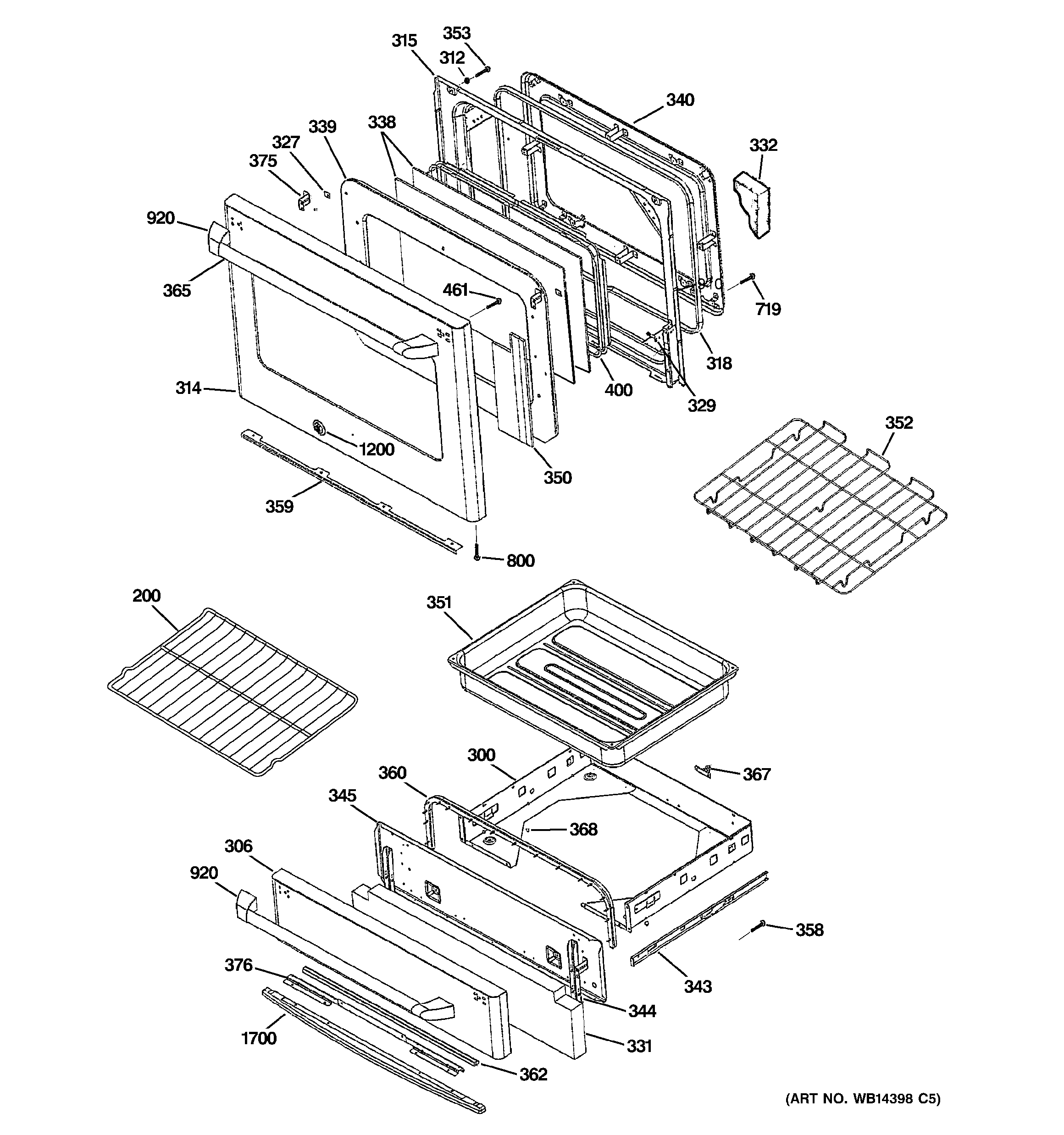

CS980SN3SS DOOR & DRAWER PARTS

CS980SN3SS DOOR & DRAWER PARTS

Written by

in

CS980SN3SS DOOR & DRAWER PARTS

Products

PositionProduct
200WB48X21508 GE Oven Rack
300WB58K10010 GE Oven Frame Drawer & Slide Assembly
306WB55K10072 GE Oven Drawer Cover
312WB1X119D GE Oven Range Washer
314GLASS & PANEL DOOR ASM
314PAD
315LINER ASM WELD DOOR
318WB35X29668 GE Oven Door Gasket Assembly
327WB01K10093 GE Oven Speednut
329WB1X558D GE Oven Screw Package
331GEN WB35K10053
332WB35K10150 GE Bottom Door Oven Insulation
332WB35K10149 GE Oven Side Door Insulation
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K10033 GE Oven Welded Panel
343WB39K10027 GE Range Internal Slide
344WB39K20 GE Oven Mounting Bracket Drawer
345WB55K10024 GE Oven Drawer Liner
350GEN WB35K10145
350GEN WB35K10144
351GEN WB48K10009
352WB48K10010 GE Oven Baking Drawer Rack
353GEN WB01K0065
353WB1X5731D GE Oven Nut Package of 12
358WB2K15 GE Oven Grate Bumper
358GEN WB02K10343
358WR01X10389 GE Refrigerator Screw 8-18 AB PHR 1/2 S
359GEN WB07K10342
360WB04K10017 GE Oven Drawer Gasket Assembly
362WB04K10018 GE Oven Lower Gasket
365WB15K10077 GE Oven Stainless Steel Handle Tube
367WB02K10111 GE Oven Strike
368WB02K10112 GE Oven Bumper Blue
375WB02K10175 GE Door Bracket
375GEN WB02K10174
376WB63K10062 GE Oven Drawer Bracket
400WB34K10087 GE Oven Window Spacer Assembly
461WB01K10070 GE Oven Screw
719WB1X536 GE Oven Screw
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
920WB07K10426 GE Oven Endcap Handle
1200GEN WD34X11435
1700GEN WB07K10378
