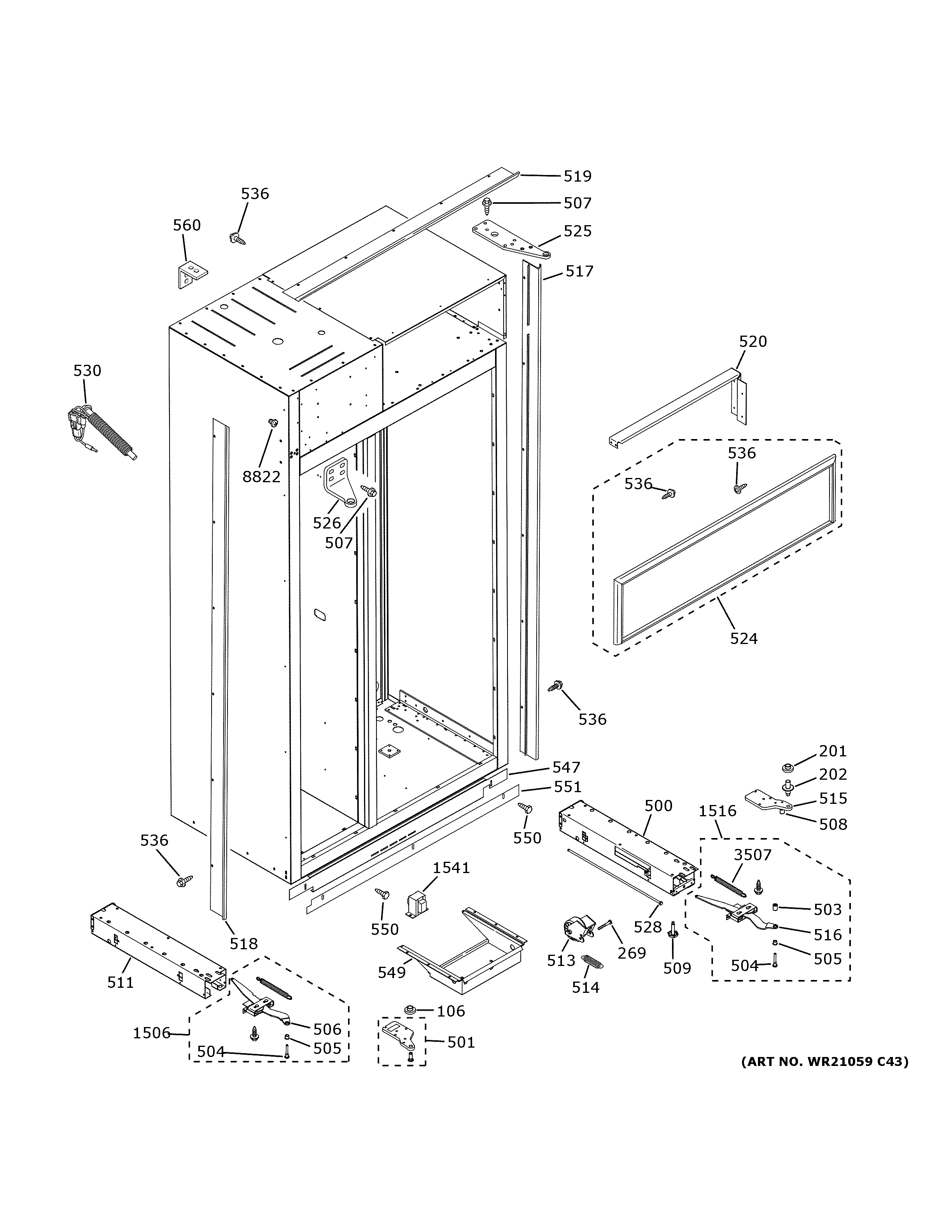

CSB42WP2NCS1 CASE PARTS

CSB42WP2NCS1 CASE PARTS

Written by

in

CSB42WP2NCS1 CASE PARTS

Products

PositionProduct
106WR01X10297 GE Refrigerator Bottom Hinge Bushing
201WR02X10953 GE Refrigerator Bushing Hinge Bottom
202WR13X10239 GE Refrigerator Lower Hinge Pin Adjuster
269WR01X10809 GE Key Pivot
500WR13X33667 GE Refrigerator Base Channel Right Hand
501WR13X23603 GE Refrigerator Bottom Case Hinge
503WR02X11231 GE Refrigerator Door Closure Spacer
504WR02X11207 GE Refrigerator Shoulder Bolt
505WR02X10951 GE Refrigerator Bushing Arm Nylon
506WR02X13151 GE Actuator Arm
507WR01X10177 GE Refrigerator Hinge Screw Door Bottom
508WR02X11209 GE Refrigerator Shear Pin
509LEVELING LEG
511WR13X33668 GE Refrigerator Base Channel Left Hand
513WR2X8377 GE Refrigerator Wheel Assembly
514WR02X11233 GE Wheel Spring
515WR13X23372 GE Refrigerator Bottom Case Hinge
516ACTUATOR ARM
517WR17X25863 GE Refrigerator Cafe P Side Trim Case
518WR17X25862 GE Fz Cafe/P Side Trim Case
519TRIM CASE TOP SXS 42
520WR13X11001 GE Refrigerator Mount Hood Grille Hinge
524WR74X30916 GE Refrigerator 42" Grille Kit
525WR13X10656 GE Refrigerator Upper Hinge
526WR13X10246 GE Refrigerator Hinge SXS Case Upper
528WR01X10256 GE Refrigerator Base Shaft
530WR09X30090 GE Refrigerator Ice Maker Fill Tube and Heat
536WR01X10484 GE Refrigerator Stainless Steel TCS 8-32 x 5/8" PH
547TOE KICK 42"
549WR17X26106 GE Refrigerator Transformer Tray
550WR01X10188 GE Refrigerator Screw Trim (SELF DRILLING)
551WR74X33029 GE Refrigerator 42" Toekick Skirt
560WR01X10825 GE Refrigerator Anti-Tip Bracket
1506WR02X11208 GE Refrigerator Link Accelerator D02
1516WR02X11211 GE Refrigerator Link Actuator D02
1541WR62X26946 GE Refrigerator LED Transformer
3507WR02X12948 SPRING CLOSURE
8822WH2X1211 GE Screw
