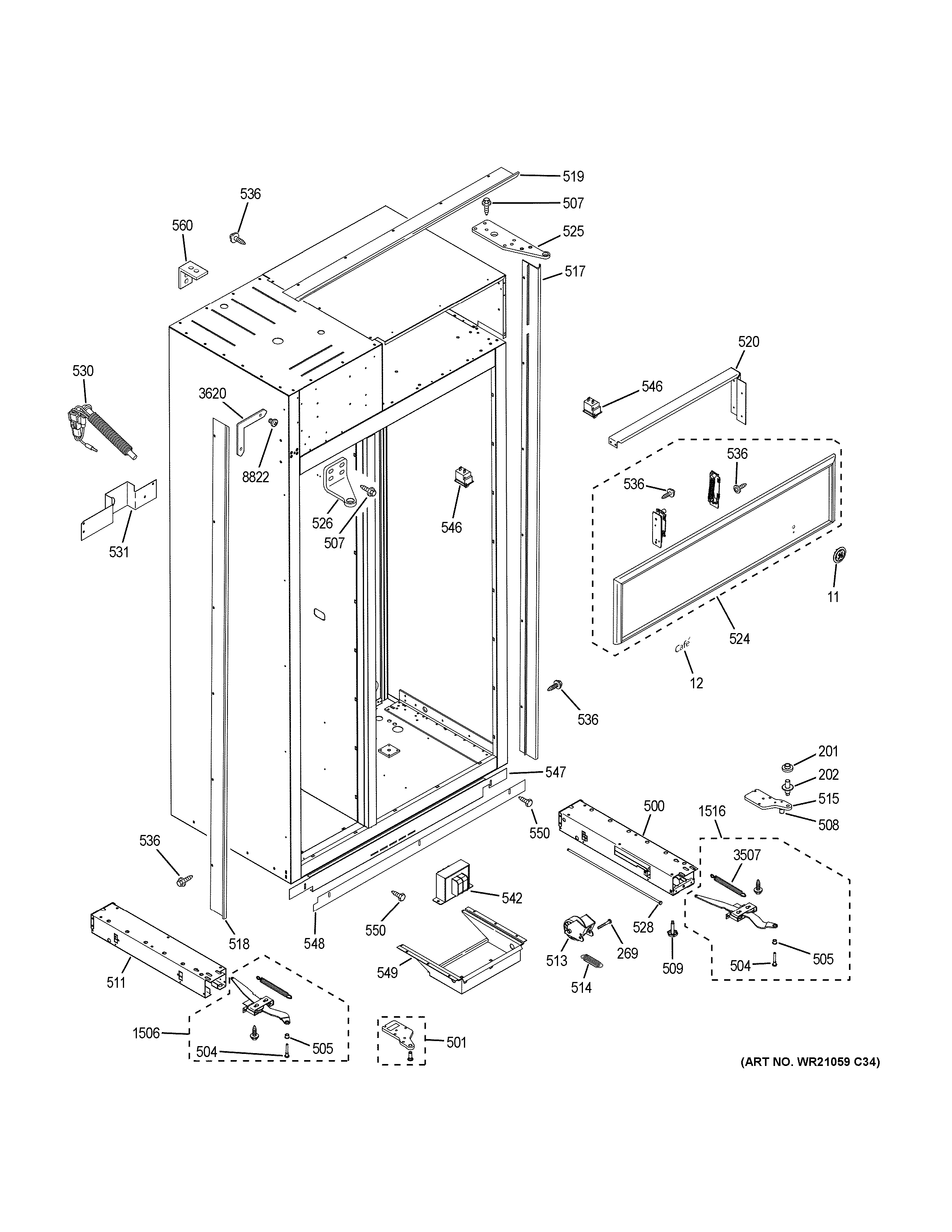

CSB48WSKBSS CASE PARTS

CSB48WSKBSS CASE PARTS

Written by

in

CSB48WSKBSS CASE PARTS

Products

PositionProduct
11WR04X10181 GE Refrigerator Dishwasher Nameplate Badge
12BADGE CAFE LETTERFORM
201WR02X10953 GE Refrigerator Bushing Hinge Bottom
202WR13X10239 GE Refrigerator Lower Hinge Pin Adjuster
269WR01X10809 GE Key Pivot
500WR13X30113 GE Refrigerator Right HandBase Channel
501WR13X23603 GE Refrigerator Bottom Case Hinge
504WR02X11207 GE Refrigerator Shoulder Bolt
505WR02X10951 GE Refrigerator Bushing Arm Nylon
507WR01X10177 GE Refrigerator Hinge Screw Door Bottom
508WR02X11209 GE Refrigerator Shear Pin
509LEVELING LEG
511WR13X30112 GE Refrigerator Left Hand Base Channel
513WR2X8377 GE Refrigerator Wheel Assembly
514WR02X11233 GE Wheel Spring
515WR13X23372 GE Refrigerator Bottom Case Hinge
517WR17X25863 GE Refrigerator Cafe P Side Trim Case
518WR17X25862 GE Fz Cafe/P Side Trim Case
519WR17X25896 GE Refrigerator Trim Case Top SXS 48
520MOUNT HOOD GRILL HINGE
524WR74X30915 GE Refrigerator 48" Grille Assembly
525WR13X10656 GE Refrigerator Upper Hinge
526WR13X10246 GE Refrigerator Hinge SXS Case Upper
528WR01X10256 GE Refrigerator Base Shaft
530WR09X30090 GE Refrigerator Ice Maker Fill Tube and Heat
530WR49X10094 GE Refrigerator Fill Tube Kit
531WR2X8613 GE Refrigerator Strap
536WR01X10484 GE Refrigerator Stainless Steel TCS 8-32 x 5/8" PH
542WR62X26946 GE Refrigerator LED Transformer
546SWITCH LIGHT
547WR13X25903 GE 48" Cafe Profile Toe Kick
548WR49X10303 GE Refrigerator Toekick Assembly
549WR17X26106 GE Refrigerator Transformer Tray
550WR01X10065 GE Screw
560WR01X10825 GE Refrigerator Anti-Tip Bracket
1506WR02X11208 GE Refrigerator Link Accelerator D02
1516WR02X11211 GE Refrigerator Link Actuator D02
3507WR02X12948 SPRING CLOSURE
3620CORNER KEY ASM CAFE PROF
8822WH2X1211 GE Screw
