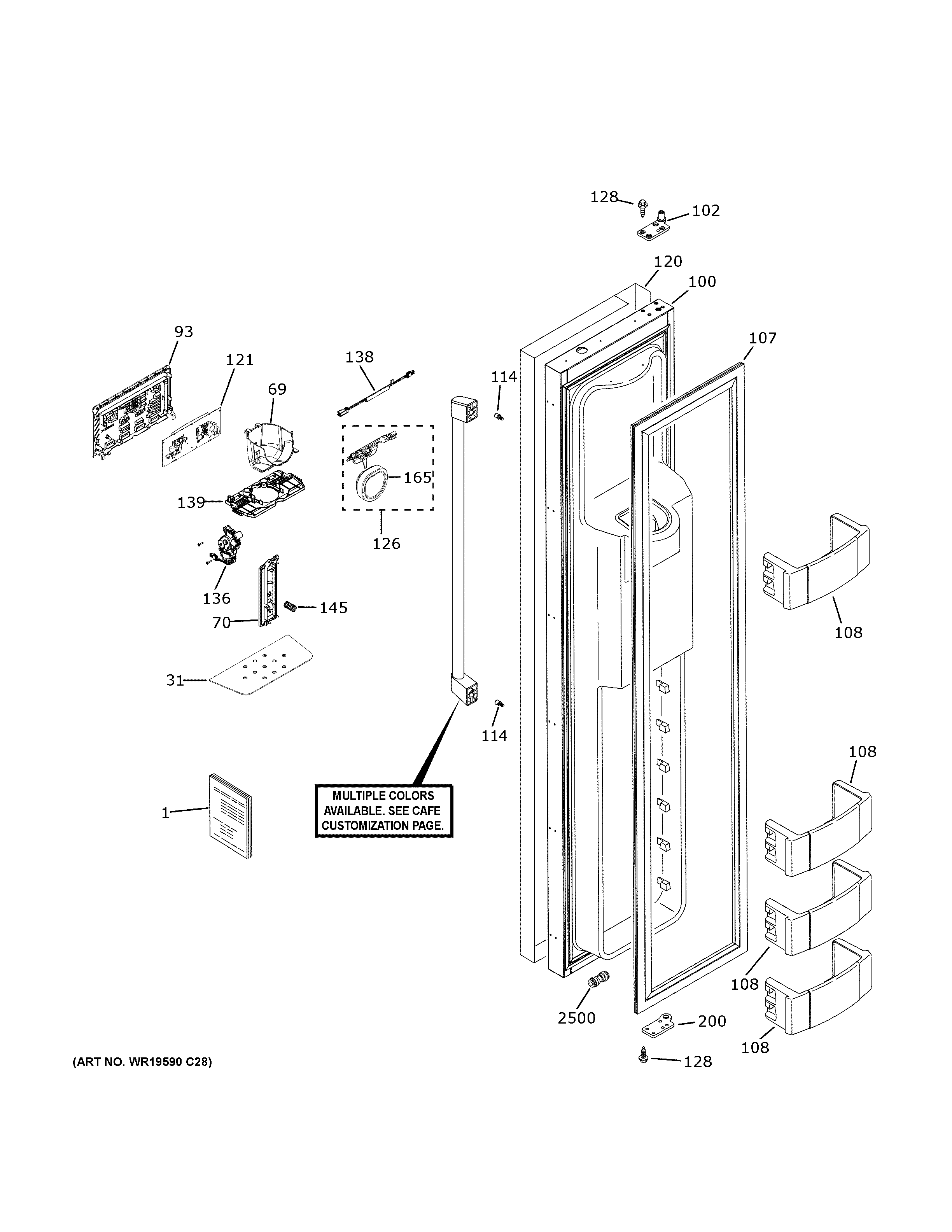

CSB48YP2NES1 FREEZER DOOR

CSB48YP2NES1 FREEZER DOOR

Written by

in

CSB48YP2NES1 FREEZER DOOR

Products

PositionProduct
1PM INSTALL INSTRUCTIONS
1PM MINI MANUAL AND WIRING
31WR02X44525 GE Dispenser Drip Tray SXS
69WR17X32683 GE Ice Maker Funnel
70DISPENSER PADDLE
93WR17X32694 GE Refrigerator Capacitive Touch Autofill Device
100WR78X32636 GE Freezer Dispenser Door 48"
102WR13X10238 GE Refrigerator Top SXS Door Hinge Assembly
107GASKET AND LABEL ASM SXS
108WR71X25604 GE Refrigerator Door Bin Assembly
114WR01X11007 GE Refrigerator Fastener Door Handle
120WR78X33946 GE Stainless Freezer Door Wrap 48
121WR55X35247 GE Refrigerator Autofill Dispenser Board
126WR17X32659 GE Refrigerator Duct Door
128WR01X21024 GE Refrigerator Screw 1/4-20 TT BHT .87
136WR60X33005 GE Refrigerator Motor Duct Door
138WR55X32726 GE Duct Door Diode Harness
139CAF ICE FUNNEL BRACKET W/ AUTOFILL SENSO
145WR01X11027 GE Refrigerator Spring
165WR17X32658 GE Refrigerator Duct Door
200WR13X10657 GE Refrigerator Bottom Door Hinge
2500WR02X32986 GE Refrigerator 5/16" Coupler with Check Valve
