CSB912M2N2S5 OVEN CAVITY PARTS

CSB912M2N2S5 OVEN CAVITY PARTS

Written by

in

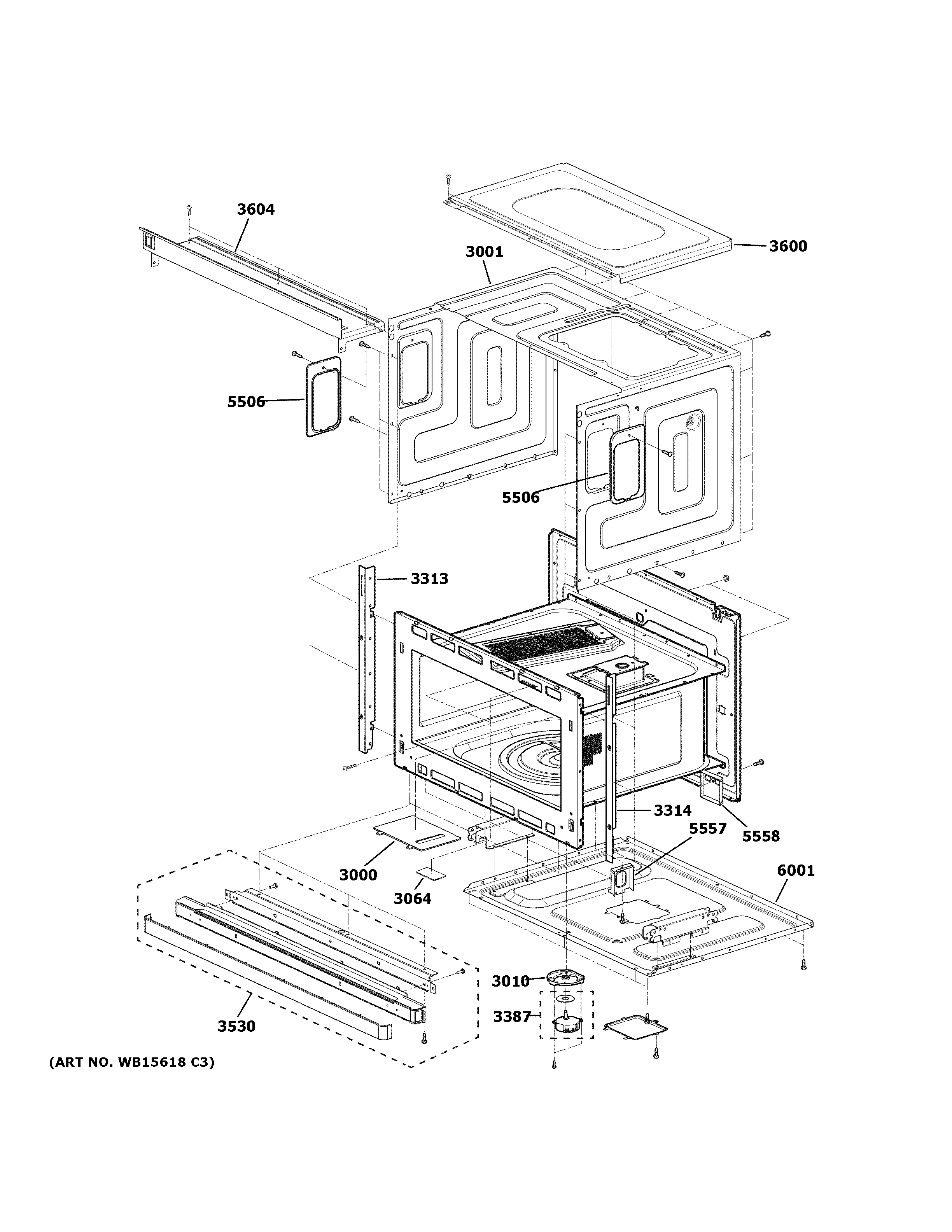

CSB912M2N2S5 OVEN CAVITY PARTS

Products

PositionProduct
3000CANOPY MICA
3001WB56X33392 GE Outer Case Assembly
3010WB34X32596 GE Mount
3064SEAL TAPE
3313WB07X32586 GE Left Hand Trim
3314WB07X32585 GE Right Hand Trim
3387WB26X33510 GE Motor with Gasket
3530WB07X33512 GE Bottom Trim
3600WB07X33409 GE Top Cover
3604WB07X33407 GE Top Cover
5506WB34X32584 GE Door Switch Access Cover
5557WB02X32591 GE Bracket
5558WB02X32587 GE Bracket
6001PLATE BASE
