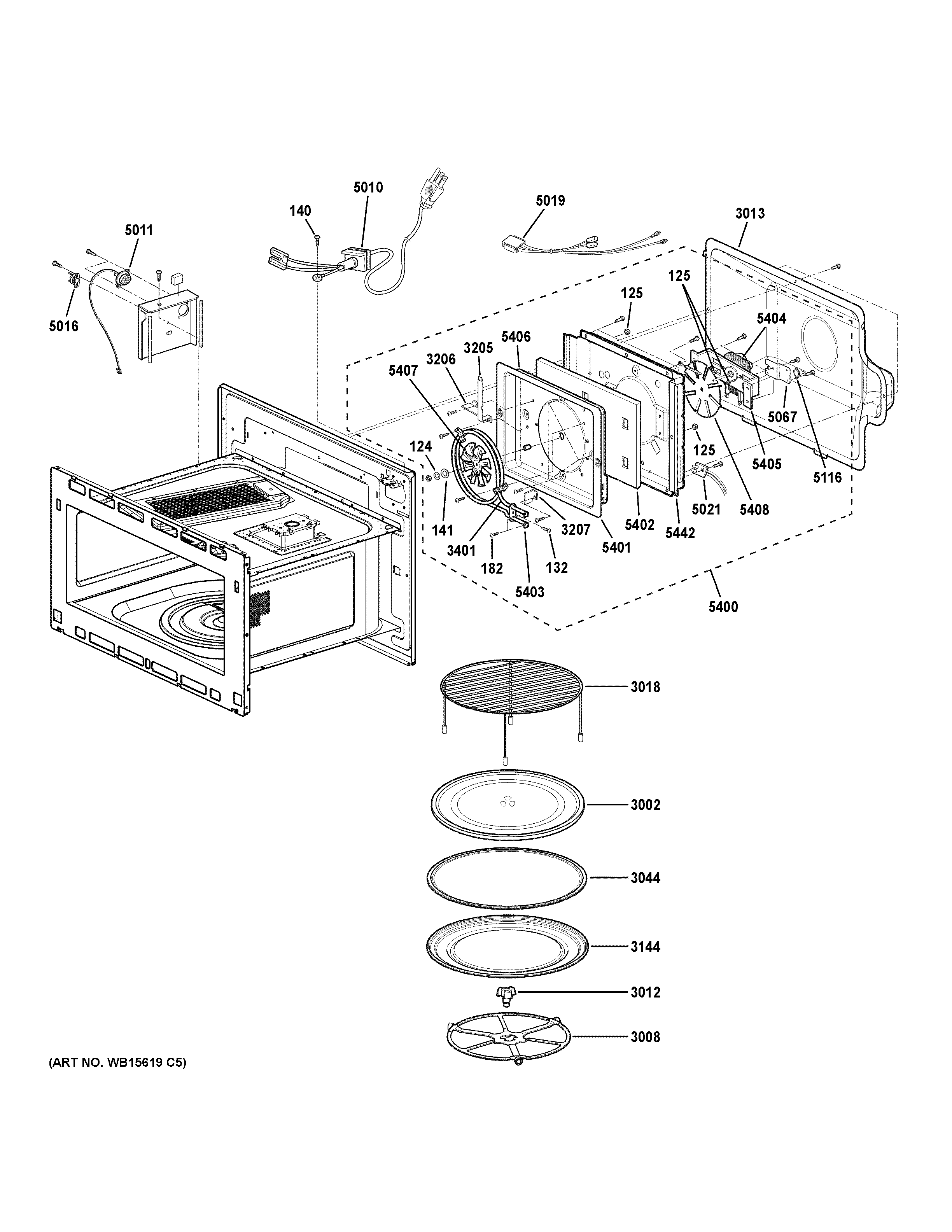

CSB913P3V1D1 INTERIOR PARTS

CSB913P3V1D1 INTERIOR PARTS

Written by

in

CSB913P3V1D1 INTERIOR PARTS

Products

PositionProduct
124WASHER, SPLK
125WB1X1520 GE Oven Hexagon Nut
132SCREW
140SCREW
141WASHER,PLAIN
182WB02X10726 GE Screw
3002WB27X43590 GE Microwave Glass Tray
3008WB02X32600 GE Microwave Rotating Ring Assembly
3012WB06X10693 GE Oven Shaft Assembly
3013COVER BACK
3018WB49X10213 GE Oven Rack
3044WB49X10187 GE Oven Metal Tray
3144METAL TRAY
3205WB02X32680 GE Heater Bracket
3206HEATER BRACKET
3207HEATER BRACKET
3401WB02X32605 GE Heater Holder
5010WB27X43190 GE Power Cord Assembly
5011WB27X10857 GE Oven Sensor Assembly
5016WB21X10149 GE Oven Thermostat
5019WB18X33767 GE Wire Harness
5021WB18X10287 GE Oven NTC Thermistor
5067WB06X10570 GE Microwave Bracket
5116WB20X10048 GE Oven Thermostat
5400WB28X33306 GE Convection Assembly
5401WB56X32579 GE Bottom Panel
5402WB06X10650 GE Glass Wool
5403WB44X10050 GE Oven Heater Sheath
5404WB26X10211 GE Oven Fan AC Motor
5405WB34X32628 GE Motor Bracket
5406WB1X1518 GE Ringshaft
5407WB26X32609 GE Oven Fan Motor
5408WB6X475 GE Oven Blade Motor CL
5442WB56X32575 GE Chamber Panel
