CSB913P4V1W2 INSULATOR PARTS

CSB913P4V1W2 INSULATOR PARTS

Written by

in

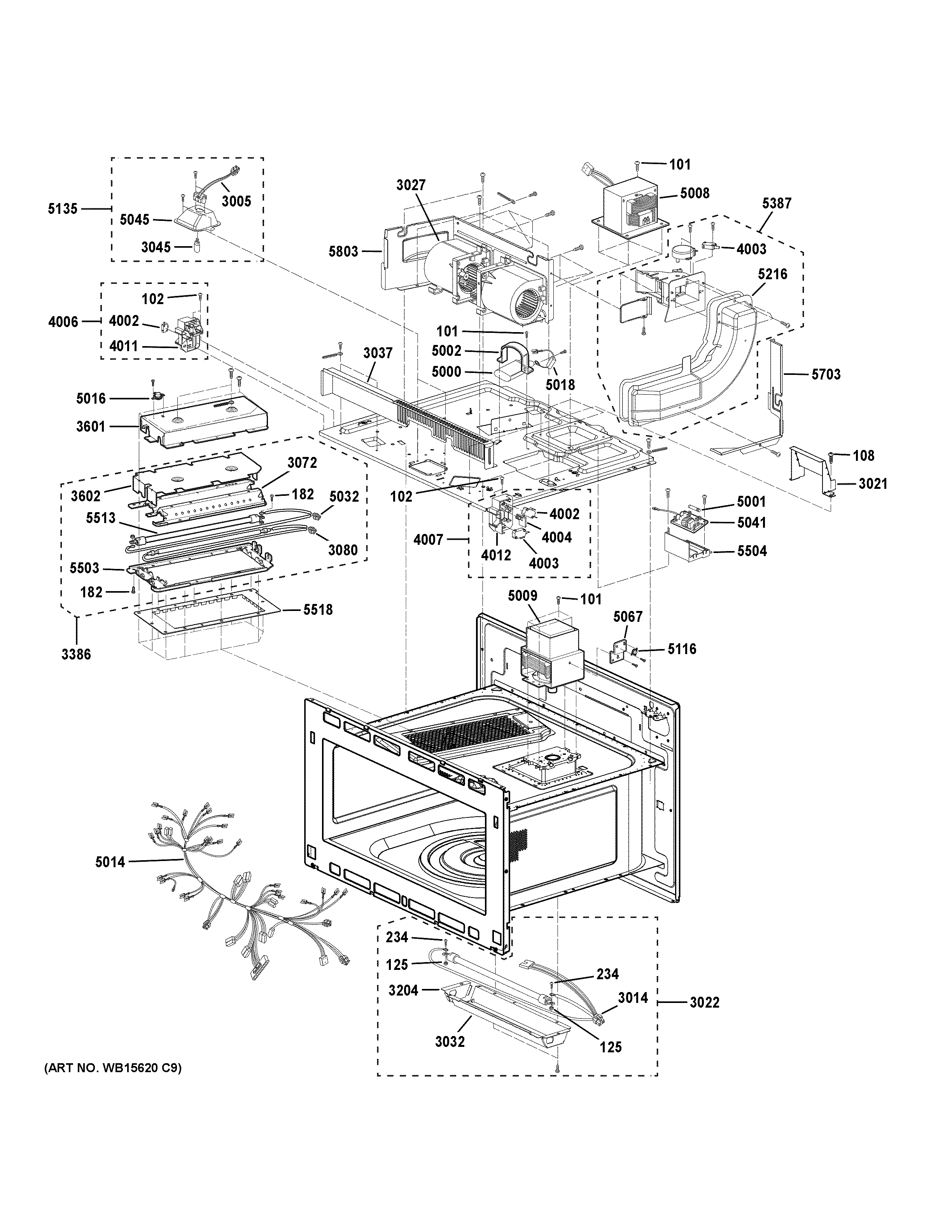

CSB913P4V1W2 INSULATOR PARTS

Products

PositionProduct
101WB02X10745 GE Binding Head Screw
102WB01X10121 GE Oven Screw
108WB1X1514 GE Oven Screw
125WB1X1520 GE Oven Hexagon Nut
182WB02X10726 GE Screw
234SCREW
3005HOLDER ASM
3014HARNESS WIRE
3021AIR GUIDE
3022HEATER ASSEMBLY
3027WB26X10182 GE Oven Circular Circulation Motor
3032WB02X32581 GE Reflector
3037PANEL FRONT
3045HALOGEN LAMP
3072WB02X32572 GE Oven Heat Shield
3080WB21X28572 GE Oven Halogen Heater
3204BRACKET HEATER
3386WB44X33391 GE Heater Assembly
3601WB34X32589 GE Heater Cover
3602WB06X32848 GE Heater Cover
4002PRIMARY INTERLOCK SWITCH
4003WB24X25397 GE Oven Interlock Monitor Switch
4004WB02X32588 GE Oven Lever
4006WB06X32995 GE Oven Latch Bracket Assembly
4007WB10X33309 GE Right Latch Body Assembly
4011WB10X32573 GE Oven Left Hand Latch Board
4012WB10X32577 GE Oven Right Hand Latch Board
5000WB27X11033 GE Oven High Voltage Capacitor
5001WB27X10928 GE Oven Line Fuse
5002WB02X32593 GE Bracket Capacitor
5008TRANSFORMER,HIGH VOLTAGE
5009MAGNETRON
5014WB18X33394 GE Harness Assembly
5016WB21X10149 GE Oven Thermostat
5018WB27X35382 GE Diode
5032WB18X33768 GE Wire Harness
5041WB02X35865 GE Noise Filter Board
5045WB34X32583 GE Light Cover
5067WB06X10570 GE Microwave Bracket
5116WB20X10048 GE Oven Thermostat
5135REFLECTOR ASM
5216WB34X32594 GE Duct Assembly
5387WB34X32608 GE Oven Duct Assembly
5503WB02X32606 GE Support
5504SUPPORT
5513WB44X41527 GE Miraclon Heater
5518WB02X32582 GE Bracket
5703WB02X32590 GE Barrier Bracket
5803WB02X32599 GE Motor Bracket
