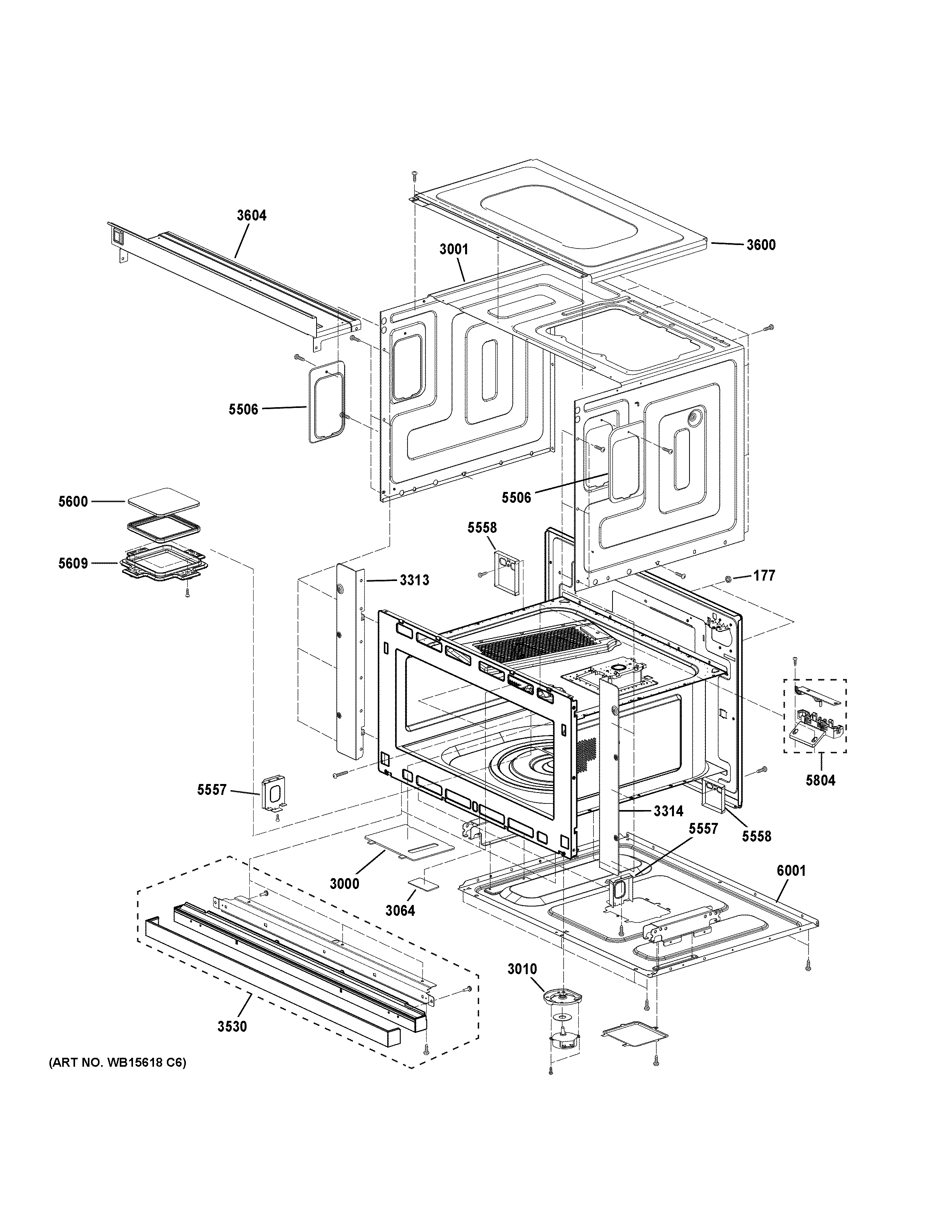

CSB913P4V1W2 OVEN CAVITY PARTS
Products
| Position | Product |
|---|---|
| 177 | NUT COMMON |
| 3000 | CANOPY MICA |
| 3001 | CASE OUTER |
| 3010 | WB34X32596 GE Mount |
| 3064 | SEAL TAPE |
| 3313 | WB07X33410 GE Right Trim |
| 3314 | TRIM LEFT |
| 3530 | TRIM ASM |
| 3600 | WB07X33409 GE Top Cover |
| 3604 | WB07X33407 GE Top Cover |
| 5506 | WB34X32584 GE Door Switch Access Cover |
| 5557 | WB02X32591 GE Bracket |
| 5558 | WB02X32587 GE Bracket |
| 5600 | WINDOW GLASS |
| 5609 | SUPPORTER WINDOW |
| 5804 | CAMERA MODULE ASSEMBLY |
| 6001 | PLATE BASE |
