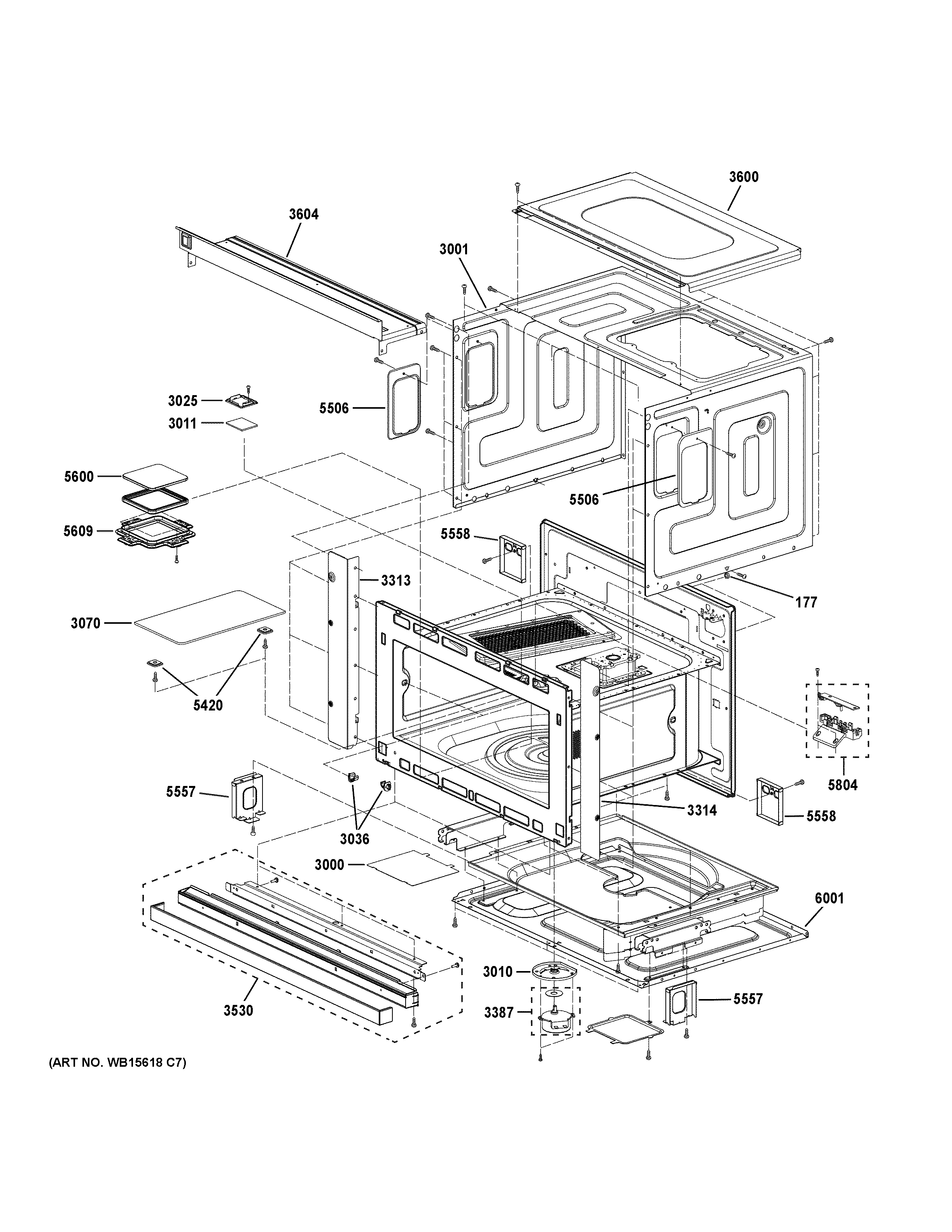

CSB923P2V1S1 OVEN CAVITY PARTS

CSB923P2V1S1 OVEN CAVITY PARTS

Written by

in

CSB923P2V1S1 OVEN CAVITY PARTS

Products

PositionProduct
177NUT COMMON
3000CANOPY MICA
3001CASE OUTER
3010WB34X32596 GE Mount
3011WB06X32999 GE Window Glass
3025BRACKET LAMP
3036WB06X10776 GE Oven Auxiliary Cook Holder
3070WB36X10129 GE Oven Upper Glass Cover
3313WB07X33410 GE Right Trim
3314TRIM LEFT
3387WB26X32994 GE Oven Motor with Gasket
3530VENT ASM
3600WB07X33409 GE Top Cover
3604WB07X33407 GE Top Cover
5420WB06X10786 GE Microwave Light Socket Holder
5506WB34X32584 GE Door Switch Access Cover
5557WB02X32591 GE Bracket
5558WB02X32587 GE Bracket
5600WINDOW GLASS
5609SUPPORTER WINDOW
5804CAMERA MODULE ASSEMBLY
6001BASEPLATE
