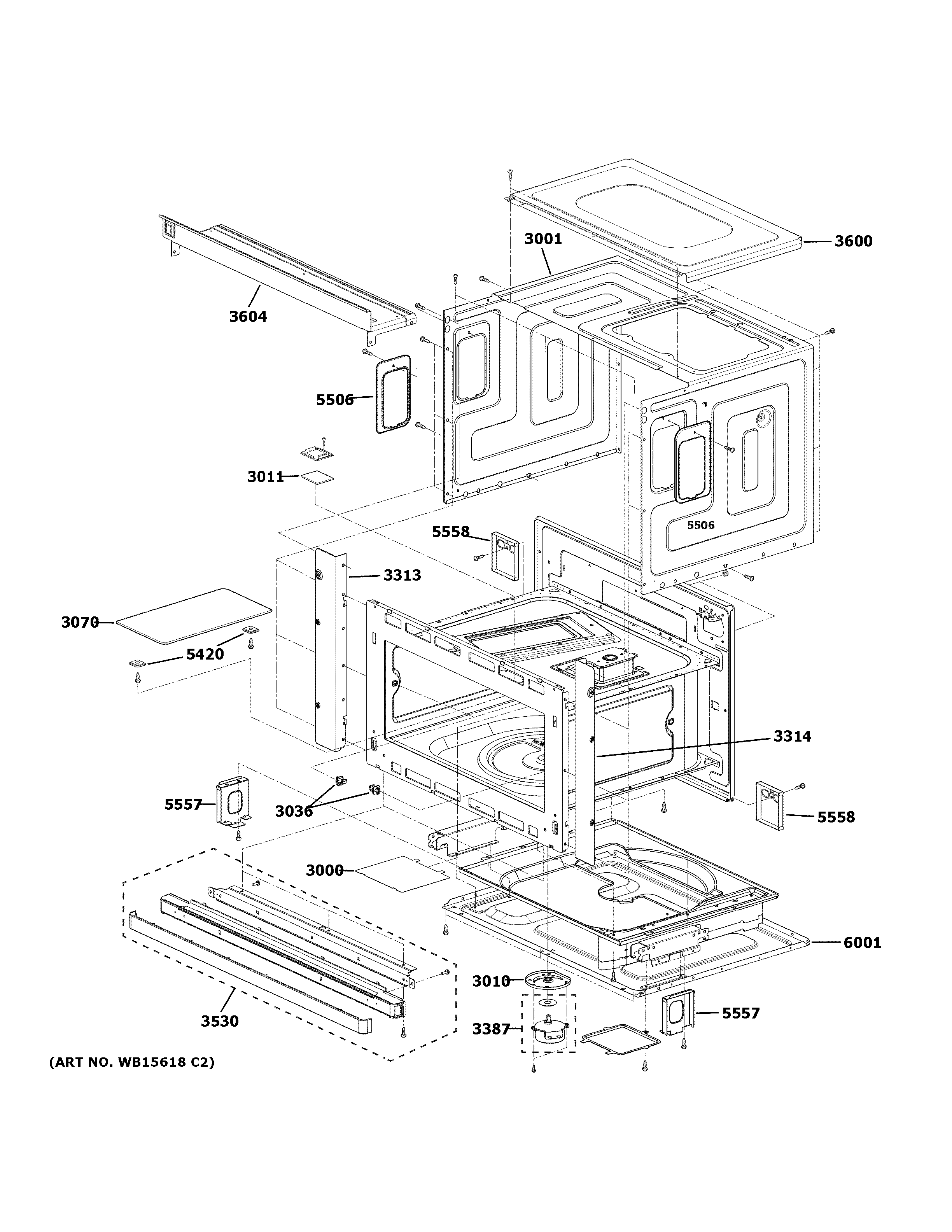

CSB923P3N2D1 OVEN CAVITY PARTS

CSB923P3N2D1 OVEN CAVITY PARTS

Written by

in

CSB923P3N2D1 OVEN CAVITY PARTS

Products

PositionProduct
3000WB06X10828 GE Oven Mica Cover
3001WB56X33392 GE Outer Case Assembly
3010WB34X32596 GE Mount
3011WB06X32999 GE Window Glass
3036WB06X10776 GE Oven Auxiliary Cook Holder
3070WB36X10129 GE Oven Upper Glass Cover
3313TRIM LEFT
3314WB07X33410 GE Right Trim
3387WB26X32994 GE Oven Motor with Gasket
3530TRIM ASM
3600TOP COVER
3604WB07X33407 GE Top Cover
5420WB06X10786 GE Microwave Light Socket Holder
5506WB34X32584 GE Door Switch Access Cover
5557WB02X32591 GE Bracket
5558WB02X32587 GE Bracket
6001BASEPLATE
